The reset button of GS-5220 Ultra PoE & PoE+ Series is located at the front of the switch.

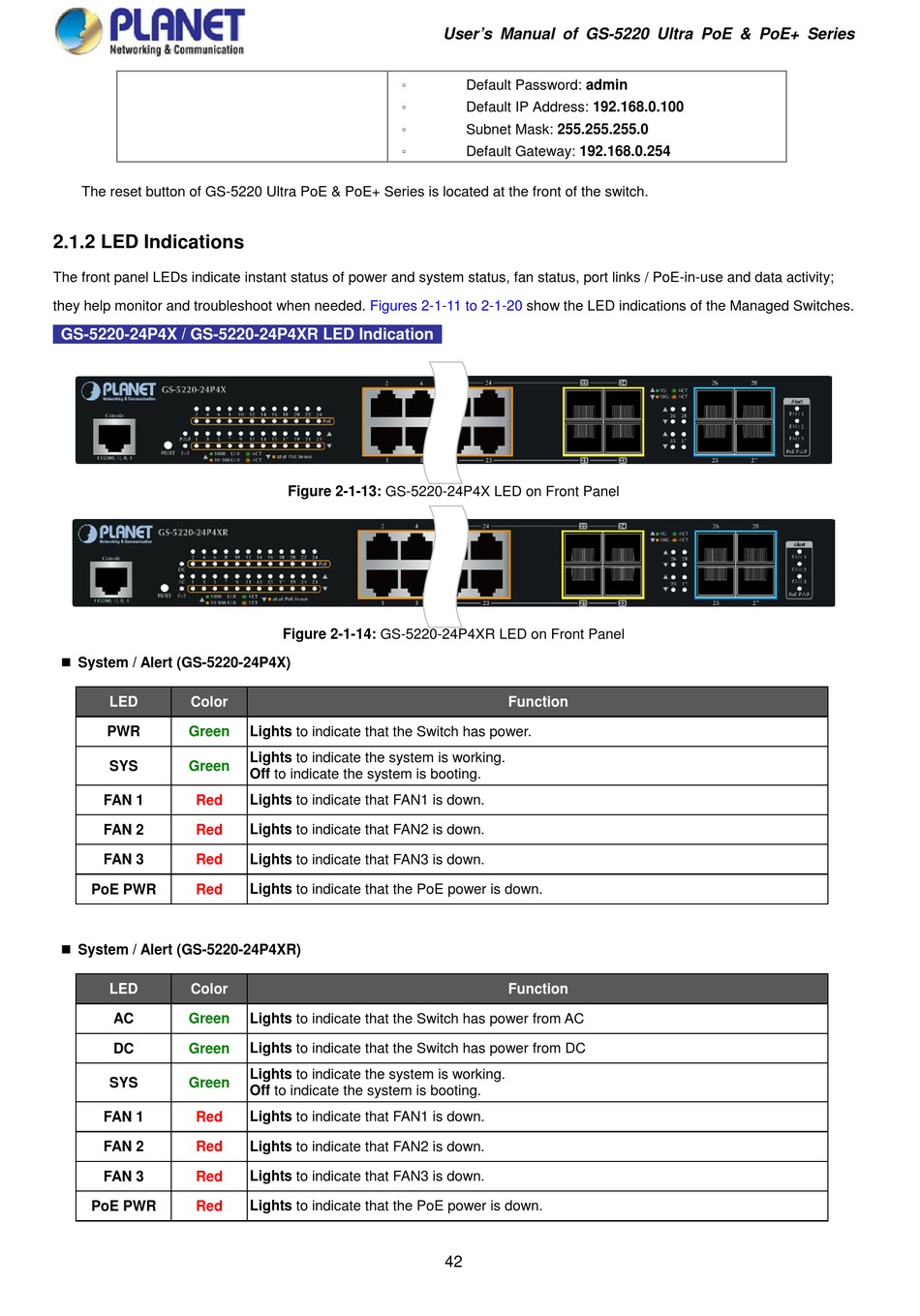

2.1.2 LED Indications

The front panel LEDs indicate instant status of power and system status, fan status, port links / PoE-in-use and data activity;
they help monitor and troubleshoot when needed.
GS-5220-24P4X / GS-5220-24P4XR LED Indication
 System / Alert (GS-5220-24P4X)
LED
Color
PWR
Green
SYS
Green
FAN 1
Red
FAN 2
Red
FAN 3
Red
PoE PWR
Red
 System / Alert (GS-5220-24P4XR)
LED
Color
AC
Green
DC
Green
SYS
Green
FAN 1
Red
FAN 2
Red
FAN 3
Red
PoE PWR
Red
Figures 2-1-11 to 2-1-20
Figure 2-1-13: GS-5220-24P4X LED on Front Panel
Figure 2-1-14: GS-5220-24P4XR LED on Front Panel
Lights to indicate that the Switch has power.
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate that FAN1 is down.
Lights to indicate that FAN2 is down.
Lights to indicate that FAN3 is down.
Lights to indicate that the PoE power is down.
Lights to indicate that the Switch has power from AC
Lights to indicate that the Switch has power from DC
Lights to indicate the system is working.
Off to indicate the system is booting.
Lights to indicate that FAN1 is down.
Lights to indicate that FAN2 is down.
Lights to indicate that FAN3 is down.
Lights to indicate that the PoE power is down.
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Default Password: admin
Default IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.0.254
show the LED indications of the Managed Switches.
Function
Function
