: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
: Updates the table starting from the first entry in the MAC-based VLAN Table.
: Updates the table, starting with the entry after the last entry currently displayed.

4.6.9 Protocol-based VLAN

This page allows you to add new protocols to Group Name (unique for each Group) mapping entries as well as allow you to see
and delete already mapped entries for the switch. The Protocol-based VLAN screen in
The page includes the following fields:
Object
• Delete
• Frame Type

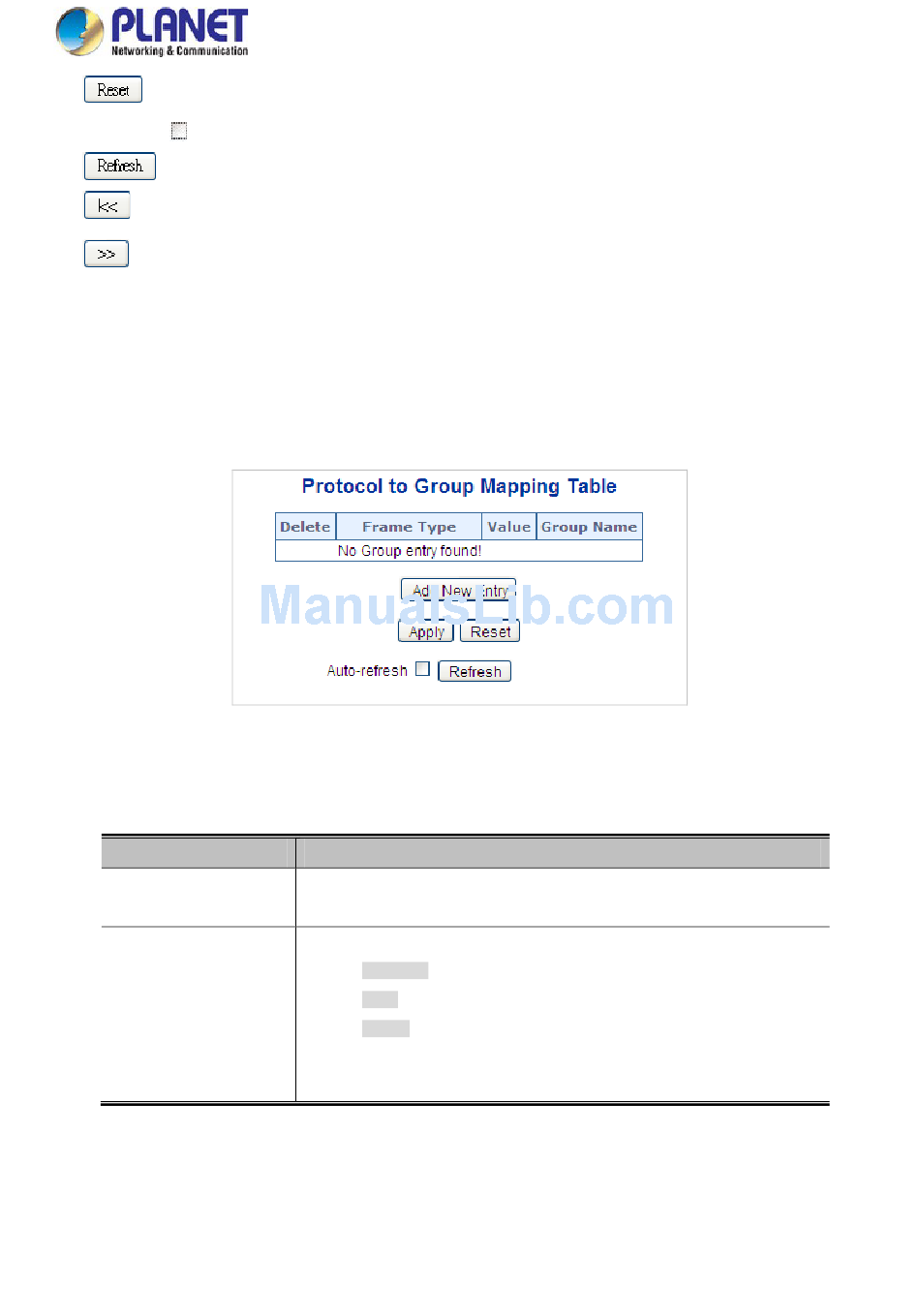

Figure 4-6-20: Protocol to Group Mapping Table Page Screenshot
Description
To delete a Protocol to Group Name map entry, check this box. The entry will be
deleted on the switch during the next Save.
Frame Type can have one of the following values:
1. Ethernet
2. LLC
3. SNAP
Note: On changing the Frame type field, valid value of the following text field will
vary depending on the new frame type you selected.
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Figure 4-6-19
149
appears.
