4.9.11.1 QoS Control Entry Configuration

The QCE Configuration screen in
The page includes the following fields:
Object
•
Port Members
•
Key Parameters
Figure 4-9-13 appears.

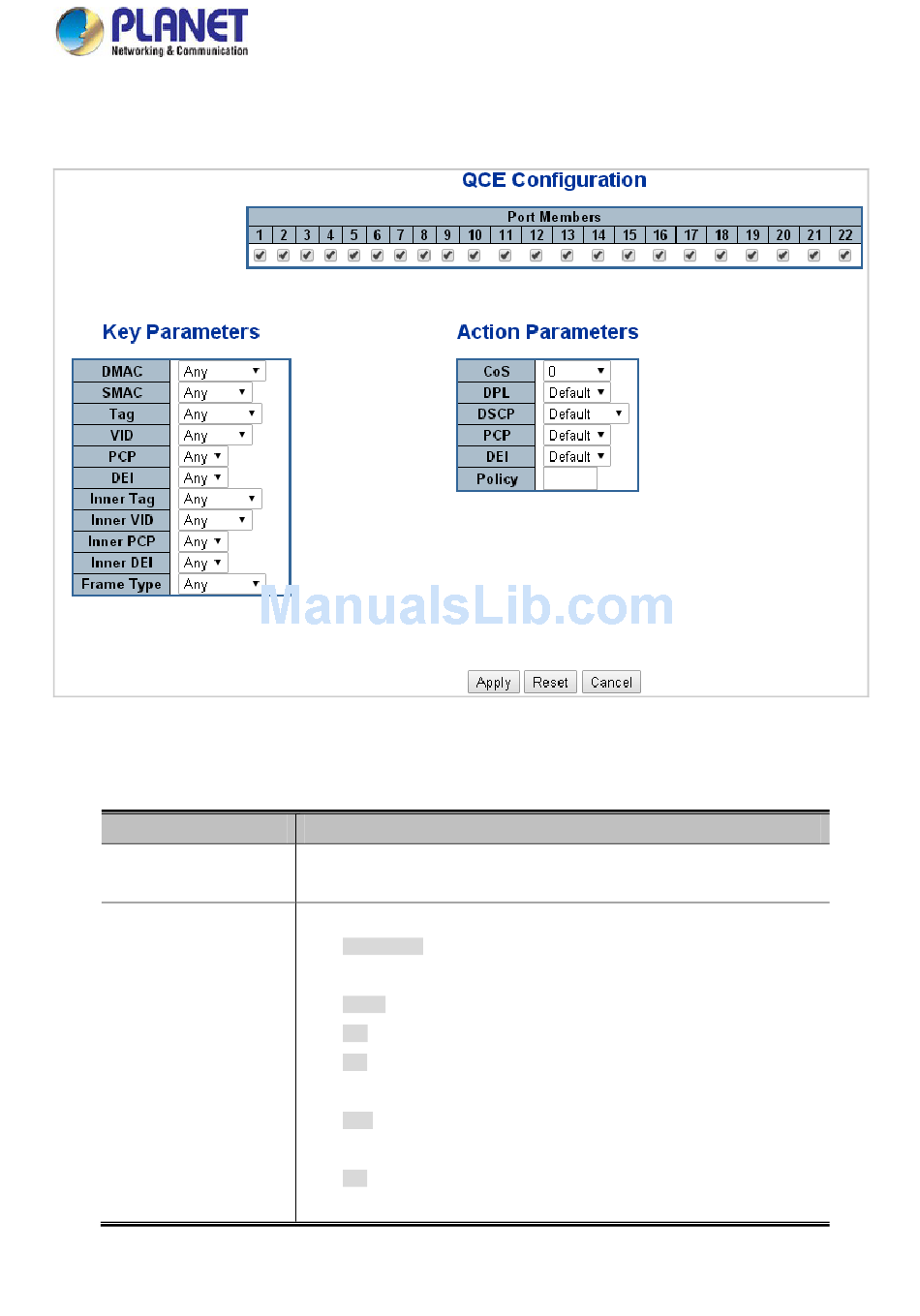

Figure 4-9-13: QCE Configuration Page Screenshot
Description
Check the checkbox button in case you what to make any port member of the
QCL entry. By default all ports will be checked
Key configuration are described as below:
■
DMAC Type Destination MAC type: possible values are unicast(UC),
multicast(MC), broadcast(BC) or 'Any'
■
SMAC Source MAC address: 24 MS bits (OUI) or 'Any'
■
Tag Value of Tag field can be 'Any', 'Untag' or 'Tag'
■
VID Valid value of VLAN ID can be any value in the range 1-4095 or 'Any';
user can enter either a specific value or a range of VIDs
■
PCP Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5, 6, 7)
or range(0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'
■
DEI Drop Eligible Indicator: Valid value of DEI can be any of values
between 0, 1 or 'Any'
