Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.9.8 DSCP-based QoS

This page allows you to configure the basic QoS DSCP-based QoS Ingress Classification settings for all switches. The
DSCP-based QoS screen in
remarked with remapped DSCP value. The remapped DSCP value is
always taken from the 'DSCP Translation->Egress Remap DP0' table.

Remap DP Aware: DSCP from analyzer is remapped and frame is
remarked with remapped DSCP value. Depending on the DP level of the
frame, the remapped DSCP value is either taken from the 'DSCP
Translation->Egress Remap DP0' table or from the 'DSCP
Translation->Egress Remap DP1' table.
Figure 4-9-9 appears.

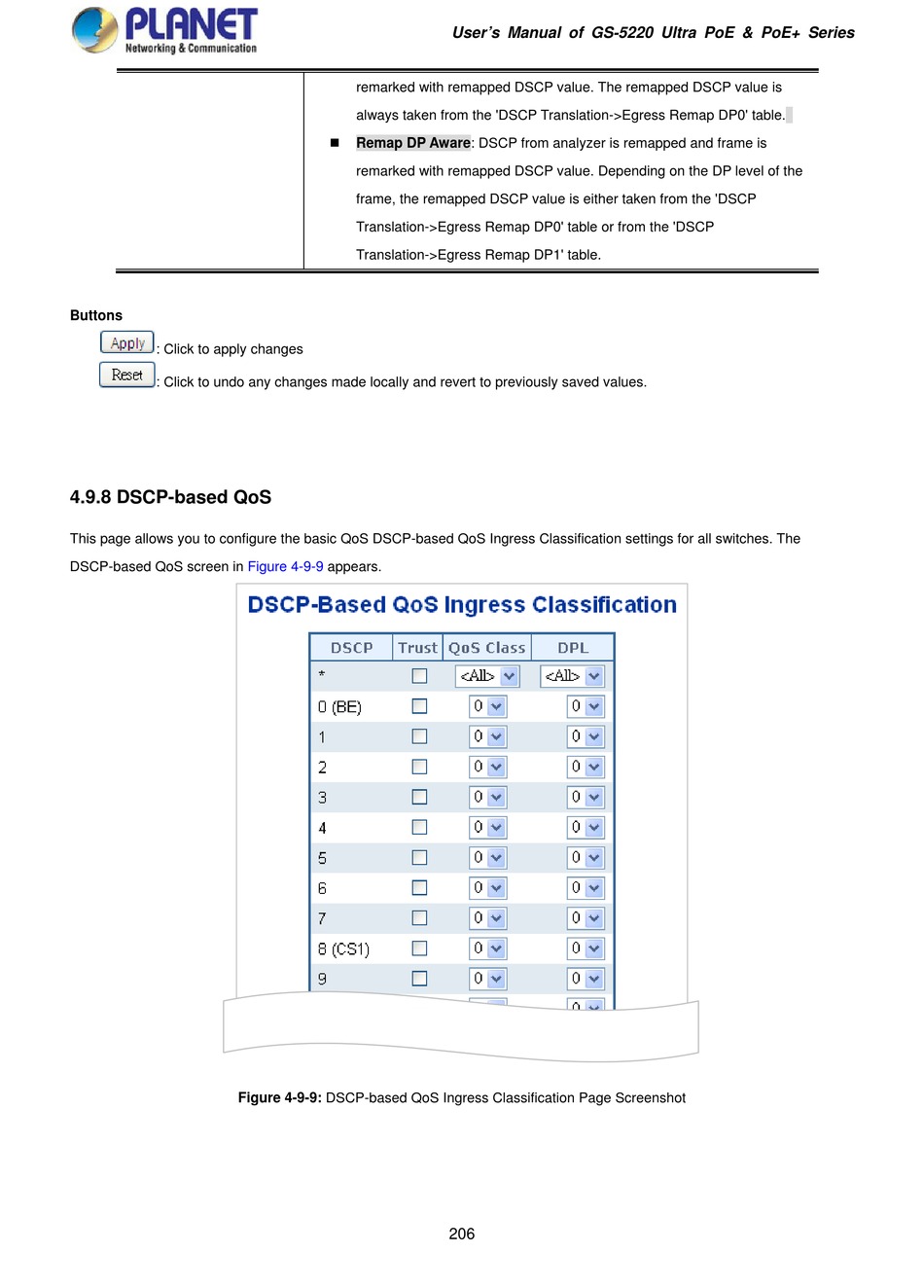

Figure 4-9-9: DSCP-based QoS Ingress Classification Page Screenshot
