Led Indications - Planet Networking & Communication GS-5220 Series User Manual

■ 10 Gigabit SFP+ slot
1/10GBASE-SR/LR mini-GBIC slot, SFP+ (Small Factor Pluggable Plus) Transceiver module supports from 300 meters
(multi-mode fiber) up to 10 kilometers (single mode fiber)
■ Console port
The console port is a RJ45 port connector. It is an interface for connecting a terminal directly. Through the console port, it
provides rich diagnostic information including IP address setting, factory reset, port management, link status and system
setting. Users can use the attached DB9 to RJ45 console cable in the package and connect to the console port on the
device. After the connection, users can run any terminal emulation program (Hyper Terminal, ProComm Plus, Telix,
Winterm and so on) to enter the startup screen of the device.
■ Reset button
The front panel of the GS-5220 LCD Series comes with a reset button designed for rebooting the Managed Switch without
turning off and on the power. The following is the summary table of reset button
Reset Button Pressed and Released
< 5 sec: System Reboot
> 5 sec: Factory Default
The reset button of GS-5220 LCD Series is located at the front of the switch.

2.1.2 LED Indications

The front panel LEDs indicate instant status of power and system status, Ring, port links and data activity; they help monitor
and troubleshoot when needed.
GS-5220-16T2XV / GS-5220-16T2XVR LED Indication
Function
Reboot the Managed Switch.
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
settings as shown below:
。
。
。
。
。
Figures 2-1-15 and 2-1-28 show the LED indications of the Managed Switches.

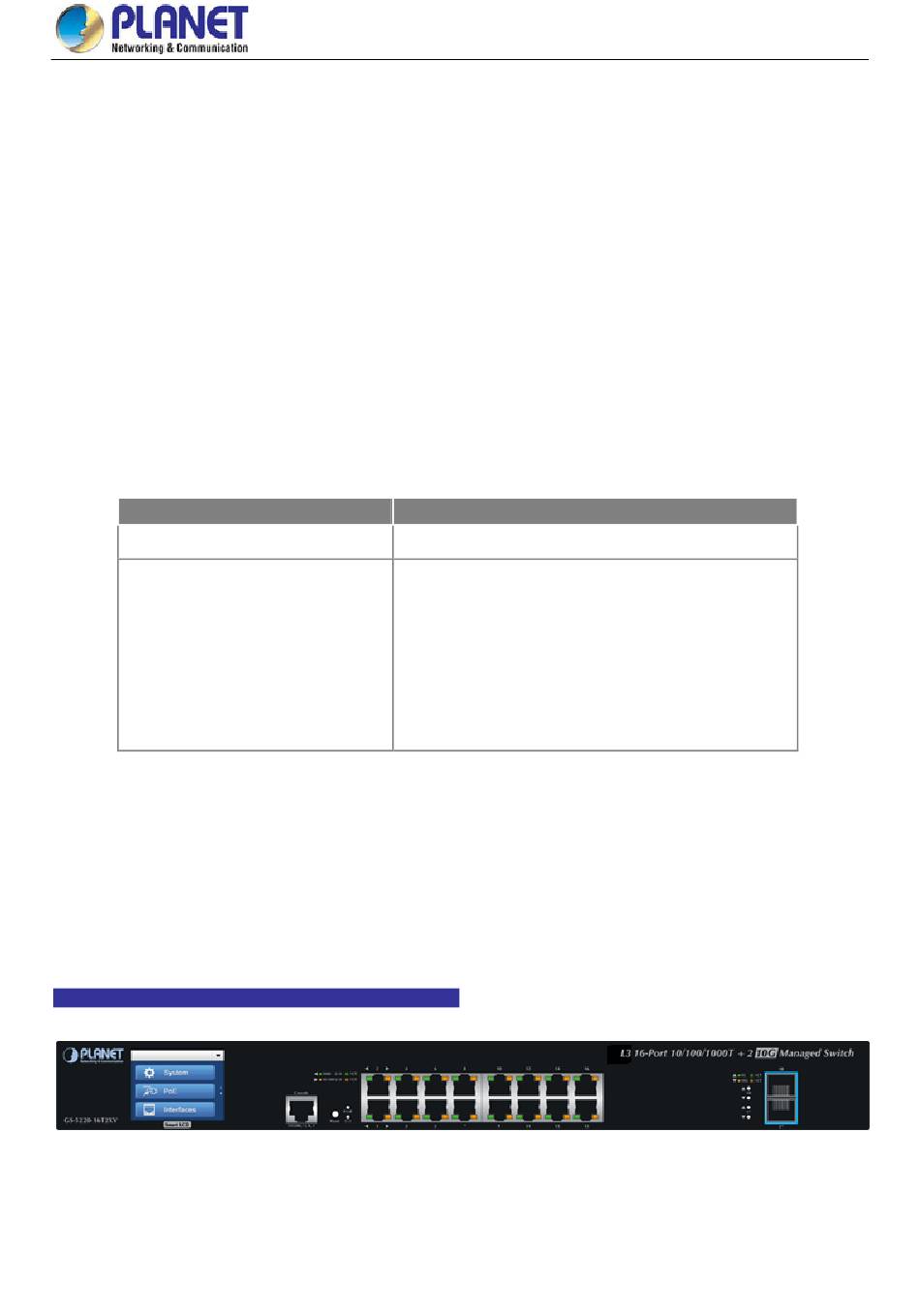

Figure 2-1-15: Front Panel of GS-5220-16T2XV
User's Manual of GS-5220 LCD Series Managed Switch
functions:
Default Username: admin
Default Password: admin
Default IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.0.254
