Step 6: Proceed with Steps 4 and 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power to the
Managed Switch.

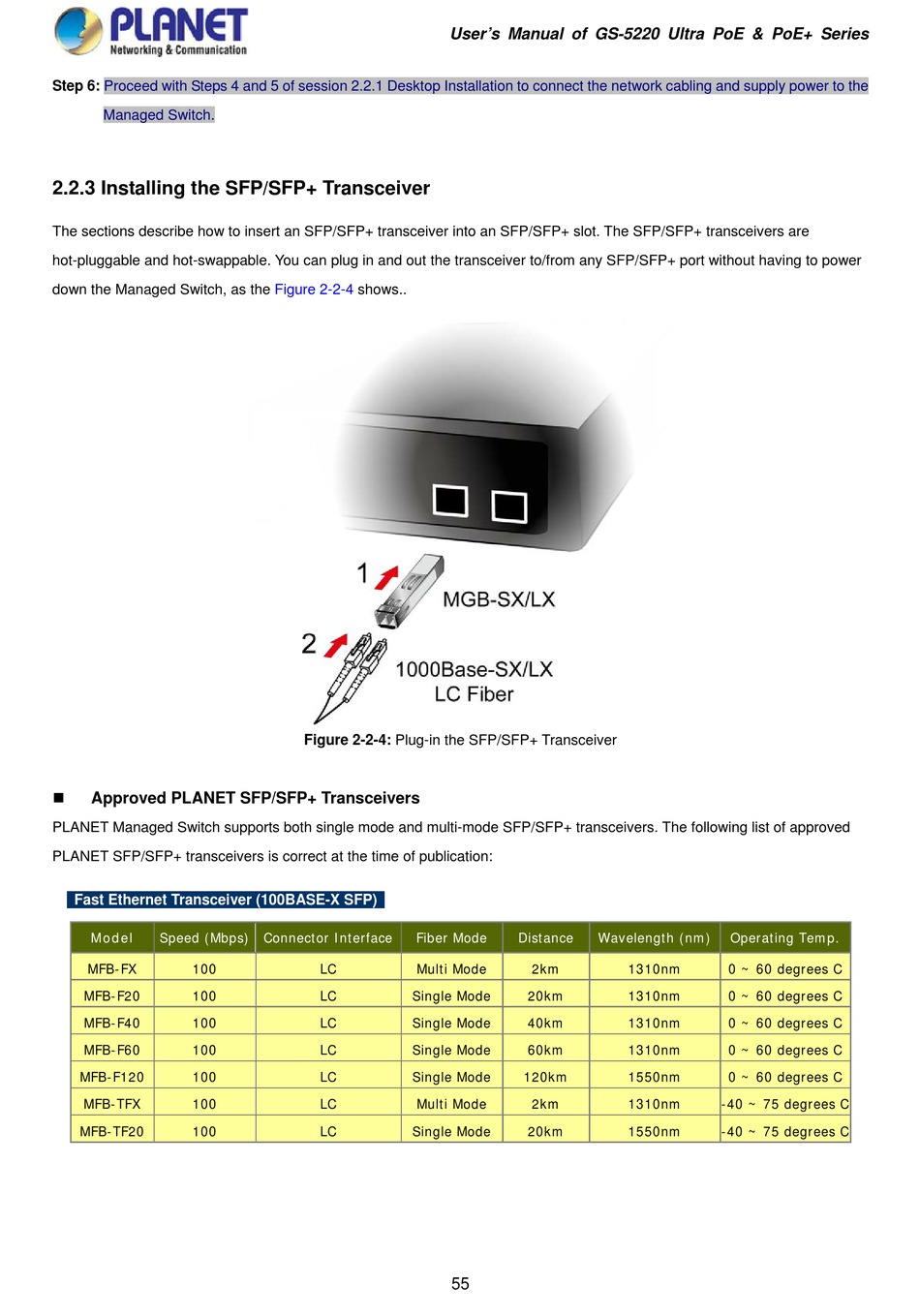

2.2.3 Installing the SFP/SFP+ Transceiver

The sections describe how to insert an SFP/SFP+ transceiver into an SFP/SFP+ slot. The SFP/SFP+ transceivers are
hot-pluggable and hot-swappable. You can plug in and out the transceiver to/from any SFP/SFP+ port without having to power
down the Managed Switch, as the

Approved PLANET SFP/SFP+ Transceivers
PLANET Managed Switch supports both single mode and multi-mode SFP/SFP+ transceivers. The following list of approved
PLANET SFP/SFP+ transceivers is correct at the time of publication:
Fast Ethernet Transceiver (100BASE-X SFP)
Model Speed (Mbps)
MFB-FX 100
MFB-F20 100
MFB-F40 100
MFB-F60 100
MFB-F120 100
MFB-TFX 100
MFB-TF20 100
Figure 2-2-4 shows..
Figure 2-2-4: Plug-in the SFP/SFP+ Transceiver
Connector Interface Fiber Mode
LC Multi Mode
LC Single Mode
LC Single Mode
LC Single Mode
LC Single Mode
LC Multi Mode
LC Single Mode
User's Manual of GS-5220 Ultra PoE & PoE+ Series
Distance Wavelength (nm)
2km
20km
40km
60km
120km
2km
20km
55
Operating Temp.
1310nm 0 ~ 60 degrees C
1310nm 0 ~ 60 degrees C
1310nm 0 ~ 60 degrees C
1310nm 0 ~ 60 degrees C
1550nm 0 ~ 60 degrees C
1310nm -40 ~ 75 degrees C
1550nm -40 ~ 75 degrees C
