4.9.5 Port Shaping

This page provides an overview of QoS Egress Port Shapers for all switch ports. The Port Shaper screen in
appears.
The page includes the following fields:
Object
• Port
• Q0 ~Q7
•
Port

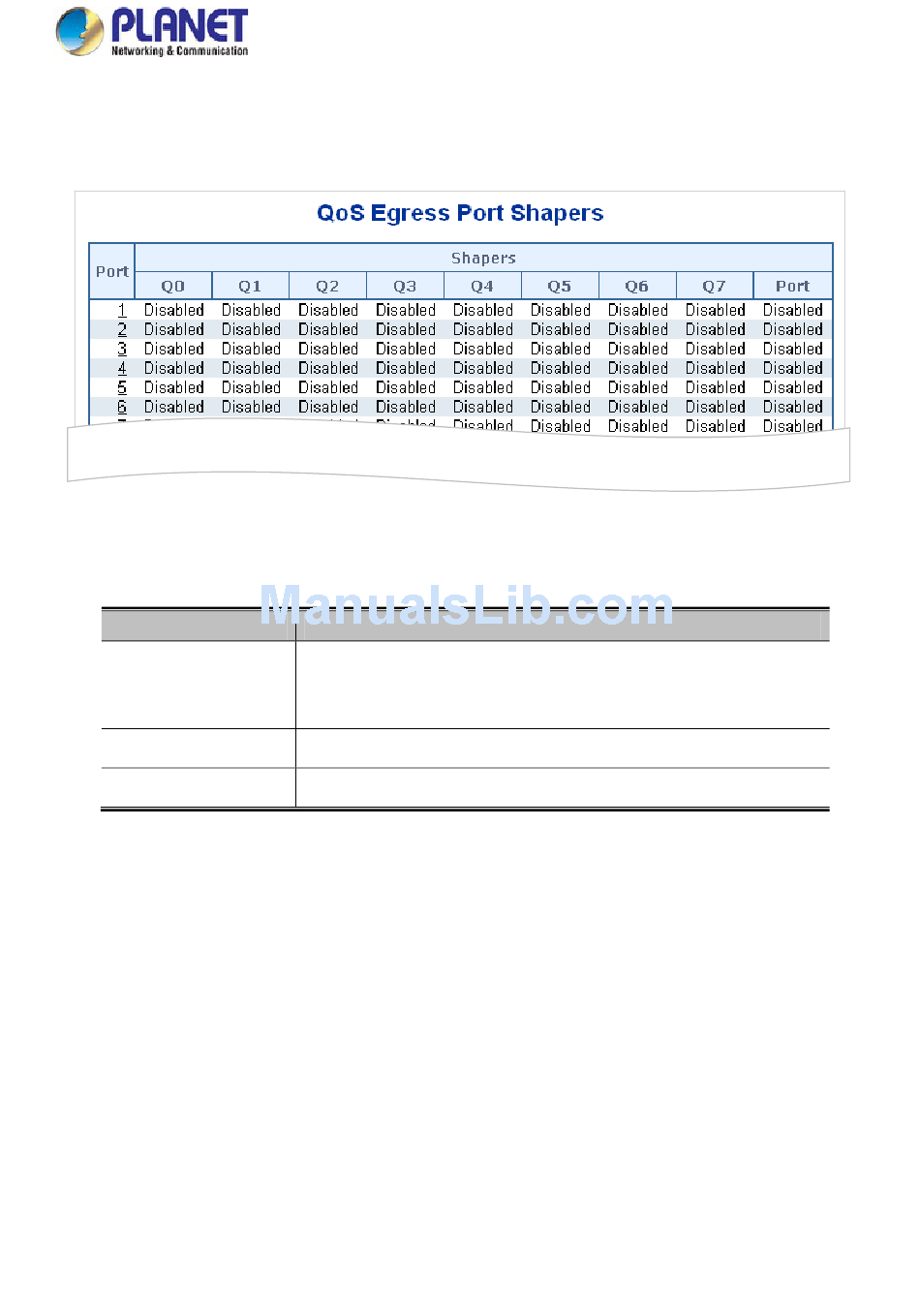

Figure 4-9-4: QoS Egress Port Shapers Page Screenshot
Description
The logical port for the settings contained in the same row.
Click on the port number in order to configure the shapers.
For more details, please refer to chapter 4.9.5.1.
Shows "disabled" or actual queue shaper rate, e.g., "800 Mbps".
Shows "disabled" or actual port shaper rate, e.g., "800 Mbps".
