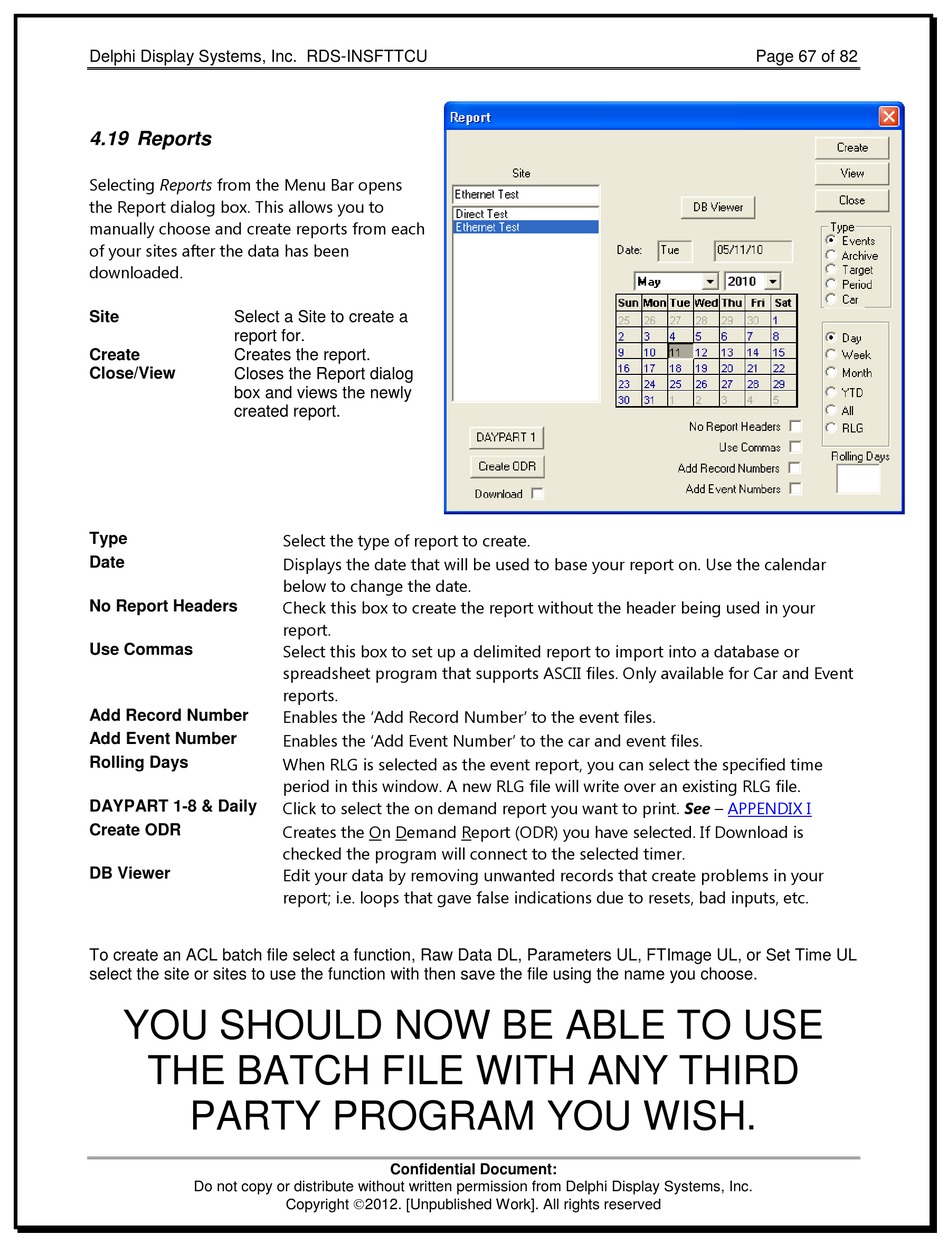

4.19 Reports

Selecting Reports from the Menu Bar opens
the Report dialog box. This allows you to
manually choose and create reports from each
of your sites after the data has been
downloaded.
Site Select a Site to create a
report for.
Create Creates the report.
Close/View Closes the Report dialog
box and views the newly
created report.
Type
Date
No Report Headers
Use Commas
Add Record Number
Add Event Number
Rolling Days
DAYPART 1-8 & Daily
Create ODR
DB Viewer
To create an ACL batch file select a function, Raw Data DL, Parameters UL, FTImage UL, or Set Time UL
select the site or sites to use the function with then save the file using the name you choose.
YOU SHOULD NOW BE ABLE TO USE
THE BATCH FILE WITH ANY THIRD
PARTY PROGRAM YOU WISH.
Do not copy or distribute without written permission from Delphi Display Systems, Inc.
Select the type of report to create.
Displays the date that will be used to base your report on. Use the calendar
below to change the date.
Check this box to create the report without the header being used in your
report.
Select this box to set up a delimited report to import into a database or
spreadsheet program that supports ASCII files. Only available for Car and Event
reports.
Enables the 'Add Record Number' to the event files.
Enables the 'Add Event Number' to the car and event files.
When RLG is selected as the event report, you can select the specified time
period in this window. A new RLG file will write over an existing RLG file.
Click to select the on demand report you want to print. See –
Creates the On Demand Report (ODR) you have selected. If Download is
checked the program will connect to the selected timer.
Edit your data by removing unwanted records that create problems in your
report; i.e. loops that gave false indications due to resets, bad inputs, etc.
