Delphi Display Systems, Inc. RDS-INSFTTCU

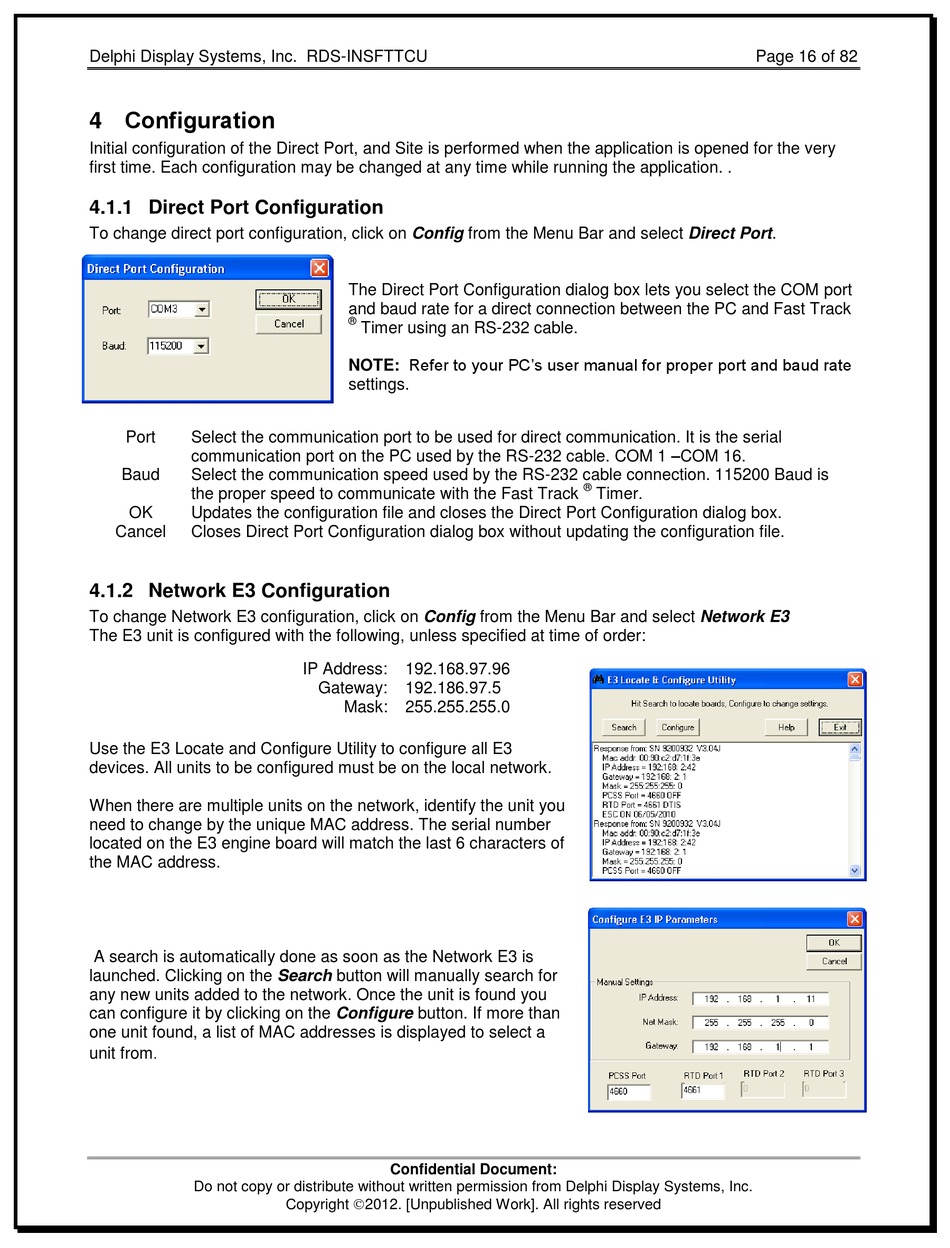

4 Configuration

Initial configuration of the Direct Port, and Site is performed when the application is opened for the very
first time. Each configuration may be changed at any time while running the application. .

4.1.1 Direct Port Configuration

To change direct port configuration, click on Config from the Menu Bar and select Direct Port.
Port Select the communication port to be used for direct communication. It is the serial
communication port on the PC used by the RS-232 cable. COM 1 –COM 16.
Baud Select the communication speed used by the RS-232 cable connection. 115200 Baud is
the proper speed to communicate with the Fast Track
OK Updates the configuration file and closes the Direct Port Configuration dialog box.
Cancel Closes Direct Port Configuration dialog box without updating the configuration file.

4.1.2 Network E3 Configuration

To change Network E3 configuration, click on Config from the Menu Bar and select Network E3
The E3 unit is configured with the following, unless specified at time of order:
Use the E3 Locate and Configure Utility to configure all E3
devices. All units to be configured must be on the local network.
When there are multiple units on the network, identify the unit you
need to change by the unique MAC address. The serial number
located on the E3 engine board will match the last 6 characters of
the MAC address.
A search is automatically done as soon as the Network E3 is
launched. Clicking on the Search button will manually search for
any new units added to the network. Once the unit is found you
can configure it by clicking on the Configure button. If more than
one unit found, a list of MAC addresses is displayed to select a
unit from.
Do not copy or distribute without written permission from Delphi Display Systems, Inc.
The Direct Port Configuration dialog box lets you select the COM port
and baud rate for a direct connection between the PC and Fast Track
®
Timer using an RS-232 cable.
NOTE: Refer to your PC's user manual for proper port and baud rate
settings.
IP Address: 192.168.97.96
Gateway: 192.186.97.5
Mask: 255.255.255.0
Confidential Document:
Copyright 2012. [Unpublished Work]. All rights reserved
Page 16 of 82
®
Timer.
