Delphi Display Systems, Inc. RDS-INSFTTCU

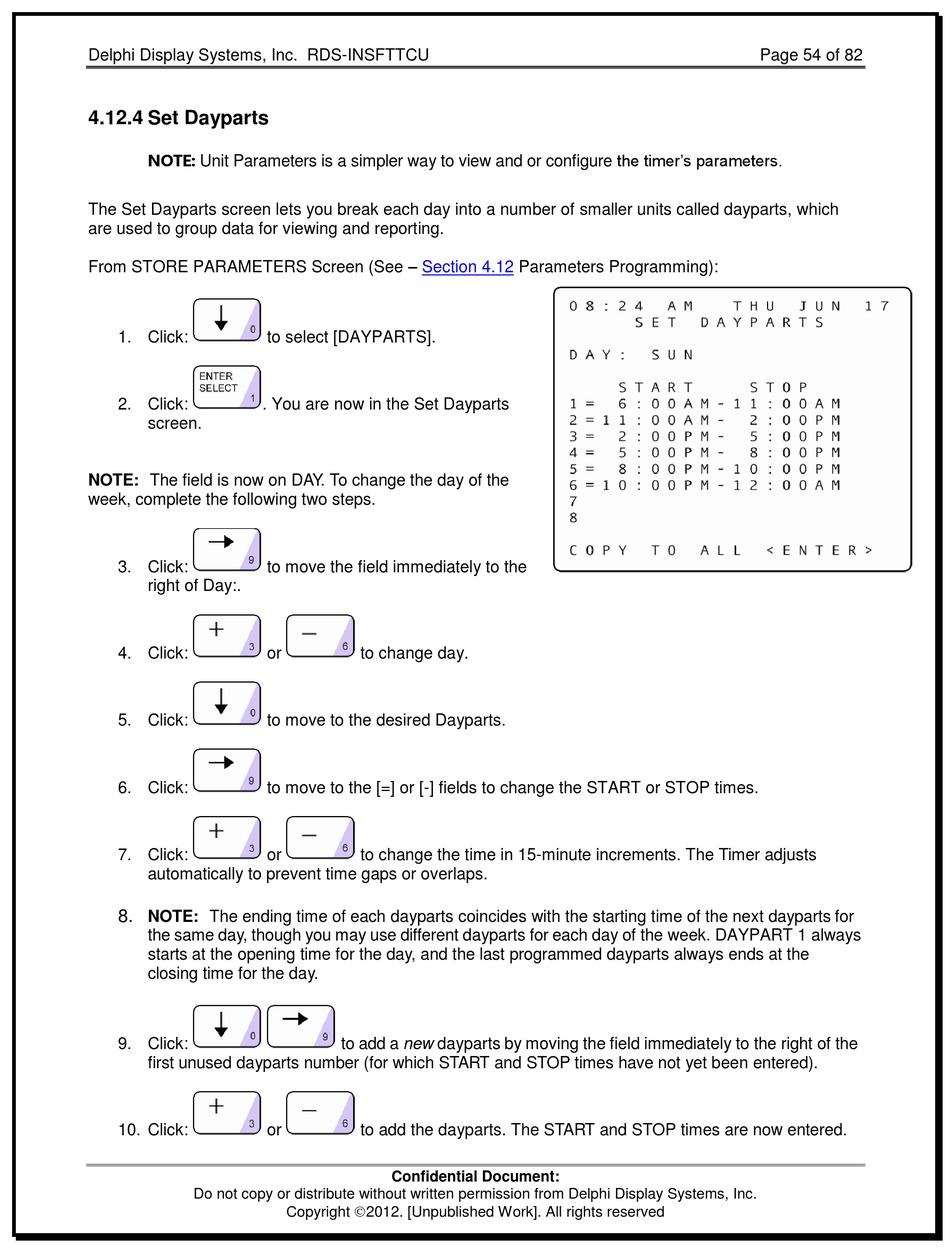

4.12.4 Set Dayparts
NOTE: Unit Parameters is a simpler way to view and or configure the timer's parameters.
The Set Dayparts screen lets you break each day into a number of smaller units called dayparts, which
are used to group data for viewing and reporting.
From STORE PARAMETERS Screen (See –
1. Click:
to select [DAYPARTS].
2. Click:
. You are now in the Set Dayparts
screen.
NOTE: The field is now on DAY. To change the day of the
week, complete the following two steps.
3. Click:
to move the field immediately to the
right of Day:.
4. Click:
or
5. Click:
to move to the desired Dayparts.
6. Click:
to move to the [=] or [-] fields to change the START or STOP times.
7. Click:
or
automatically to prevent time gaps or overlaps.
8.
NOTE: The ending time of each dayparts coincides with the starting time of the next dayparts for
the same day, though you may use different dayparts for each day of the week. DAYPART 1 always
starts at the opening time for the day, and the last programmed dayparts always ends at the
closing time for the day.
9. Click:
first unused dayparts number (for which START and STOP times have not yet been entered).
10. Click:
or
Do not copy or distribute without written permission from Delphi Display Systems, Inc.
Section 4.12
to change day.
to change the time in 15-minute increments. The Timer adjusts
to add a new dayparts by moving the field immediately to the right of the
to add the dayparts. The START and STOP times are now entered.
Confidential Document:
Copyright 2012. [Unpublished Work]. All rights reserved
Parameters Programming):
Page 54 of 82
