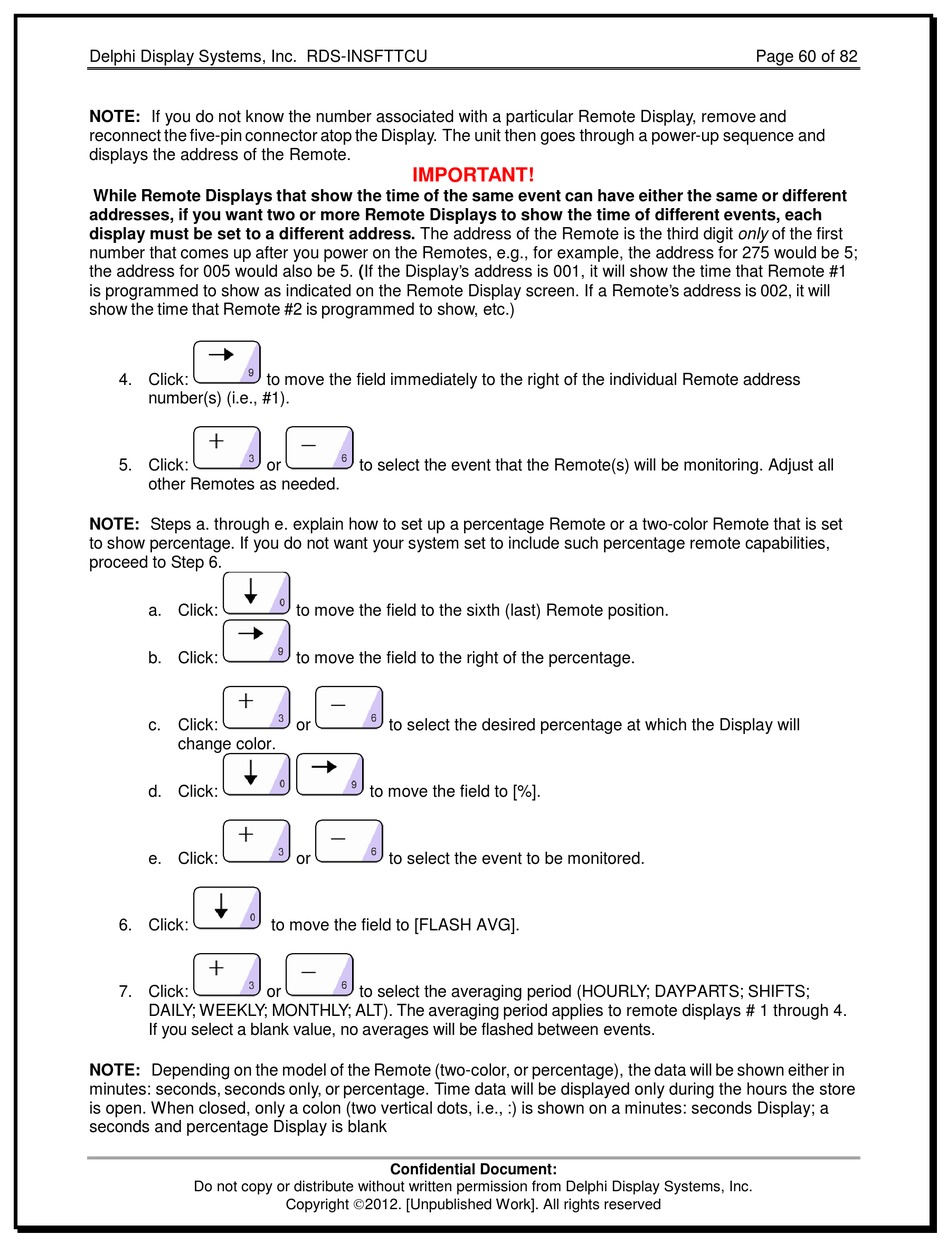

Delphi Display Systems RDS-INSFTTCU Configuration And User's Manual page 60

Delphi Display Systems, Inc. RDS-INSFTTCU
NOTE: If you do not know the number associated with a particular Remote Display, remove and
reconnect the five-pin connector atop the Display. The unit then goes through a power-up sequence and
displays the address of the Remote.
While Remote Displays that show the time of the same event can have either the same or different
addresses, if you want two or more Remote Displays to show the time of different events, each
display must be set to a different address. The address of the Remote is the third digit only of the first
number that comes up after you power on the Remotes, e.g., for example, the address for 275 would be 5;
the address for 005 would also be 5. (If the Display's address is 001, it will show the time that Remote #1
is programmed to show as indicated on the Remote Display screen. If a Remote's address is 002, it will
show the time that Remote #2 is programmed to show, etc.)
4. Click: to move the field immediately to the right of the individual Remote address
number(s) (i.e., #1).
5. Click: or
other Remotes as needed.
NOTE: Steps a. through e. explain how to set up a percentage Remote or a two-color Remote that is set
to show percentage. If you do not want your system set to include such percentage remote capabilities,
proceed to Step 6.
a. Click:
b. Click:
c. Click:
change color.
d. Click:
e. Click:
6. Click:
7. Click: or
DAILY; WEEKLY; MONTHLY; ALT). The averaging period applies to remote displays # 1 through 4.
If you select a blank value, no averages will be flashed between events.
NOTE: Depending on the model of the Remote (two-color, or percentage), the data will be shown either in
minutes: seconds, seconds only, or percentage. Time data will be displayed only during the hours the store
is open. When closed, only a colon (two vertical dots, i.e., :) is shown on a minutes: seconds Display; a
seconds and percentage Display is blank
Do not copy or distribute without written permission from Delphi Display Systems, Inc.
IMPORTANT!
to select the event that the Remote(s) will be monitoring. Adjust all
to move the field to the sixth (last) Remote position.
to move the field to the right of the percentage.
or to select the desired percentage at which the Display will
to move the field to [%].
or to select the event to be monitored.
to move the field to [FLASH AVG].
to select the averaging period (HOURLY; DAYPARTS; SHIFTS;
