Delphi Display Systems, Inc. RDS-INSFTTCU

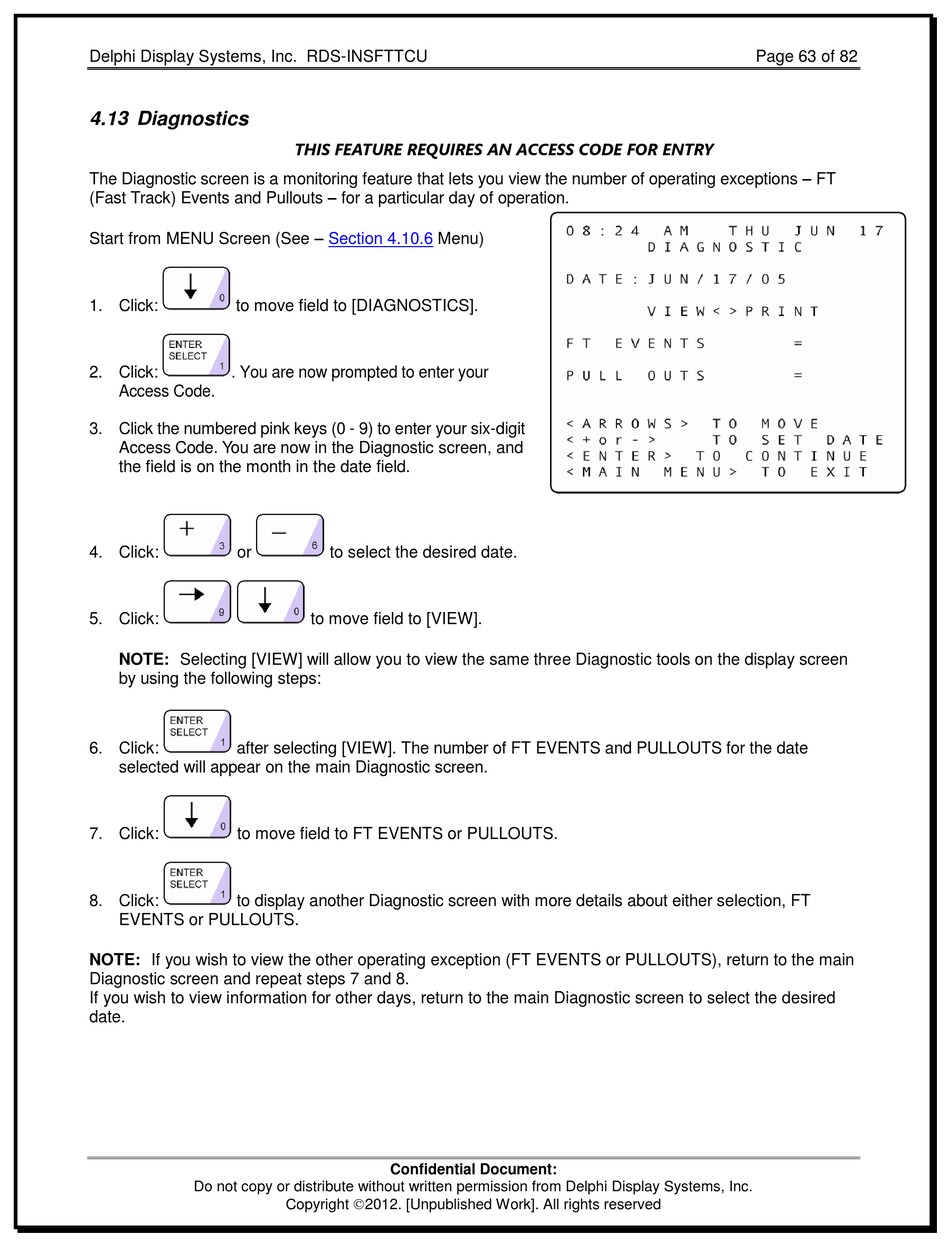

4.13 Diagnostics

The Diagnostic screen is a monitoring feature that lets you view the number of operating exceptions – FT
(Fast Track) Events and Pullouts – for a particular day of operation.
Start from MENU Screen (See –
1. Click: to move field to [DIAGNOSTICS].
2. Click: . You are now prompted to enter your
Access Code.
3. Click the numbered pink keys (0 - 9) to enter your six-digit
Access Code. You are now in the Diagnostic screen, and
the field is on the month in the date field.
4. Click: or
5. Click:
NOTE: Selecting [VIEW] will allow you to view the same three Diagnostic tools on the display screen
by using the following steps:
6. Click: after selecting [VIEW]. The number of FT EVENTS and PULLOUTS for the date
selected will appear on the main Diagnostic screen.
7. Click: to move field to FT EVENTS or PULLOUTS.
8. Click: to display another Diagnostic screen with more details about either selection, FT
EVENTS or PULLOUTS.
NOTE: If you wish to view the other operating exception (FT EVENTS or PULLOUTS), return to the main
Diagnostic screen and repeat steps 7 and 8.
If you wish to view information for other days, return to the main Diagnostic screen to select the desired
date.
Do not copy or distribute without written permission from Delphi Display Systems, Inc.
THIS FEATURE REQUIRES AN ACCESS CODE FOR ENTRY
Section 4.10.6 Menu)
to select the desired date.
to move field to [VIEW].
Confidential Document:
Copyright 2012. [Unpublished Work]. All rights reserved
Page 63 of 82
