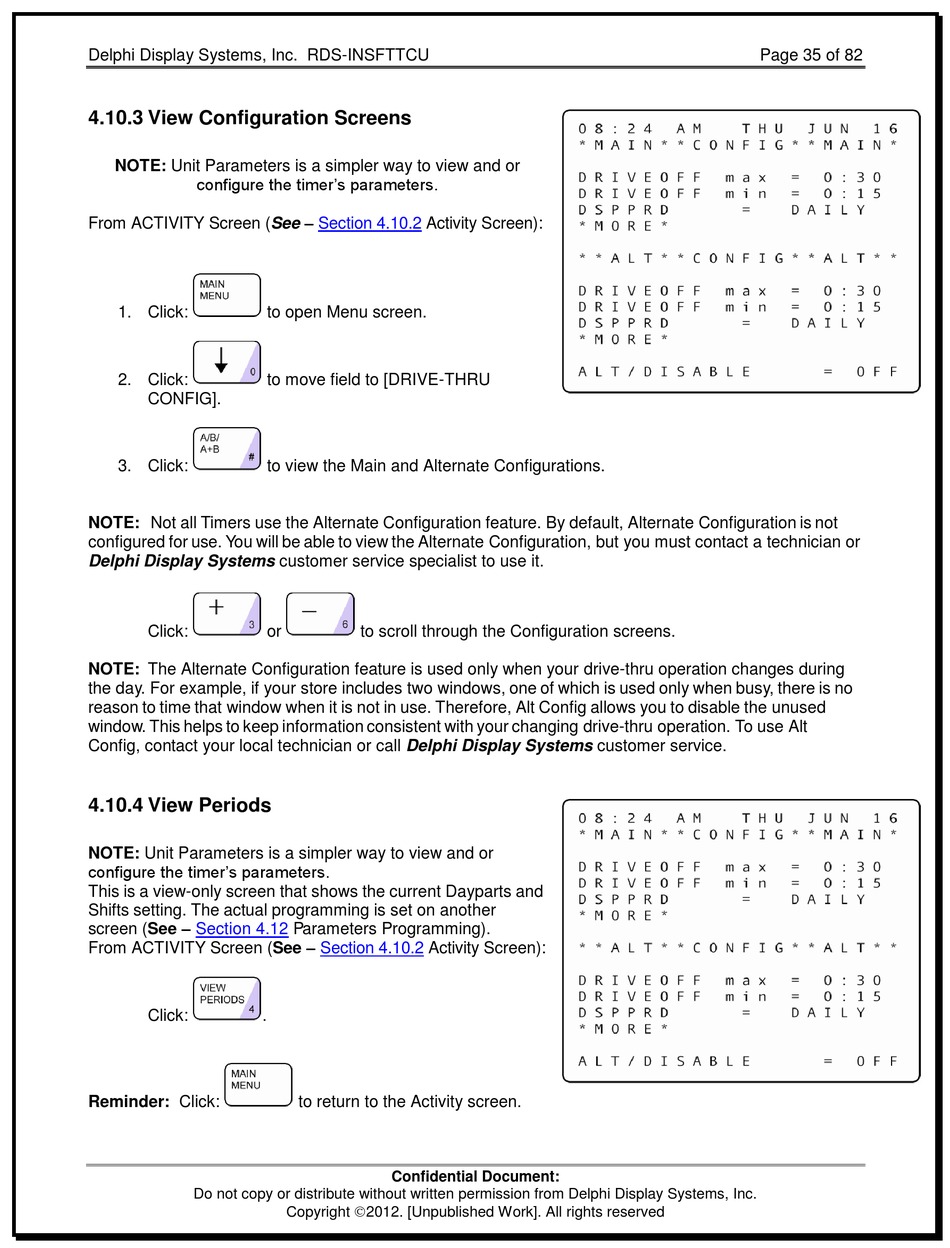

4.10.3 View Configuration Screens

NOTE: Unit Parameters is a simpler way to view and or
configure the timer's parameters.
From ACTIVITY Screen (See –
1. Click: to open Menu screen.
2. Click: to move field to [DRIVE-THRU
CONFIG].
3. Click: to view the Main and Alternate Configurations.
NOTE: Not all Timers use the Alternate Configuration feature. By default, Alternate Configuration is not
configured for use. You will be able to view the Alternate Configuration, but you must contact a technician or
Delphi Display Systems customer service specialist to use it.
Click: or
NOTE: The Alternate Configuration feature is used only when your drive-thru operation changes during
the day. For example, if your store includes two windows, one of which is used only when busy, there is no
reason to time that window when it is not in use. Therefore, Alt Config allows you to disable the unused
window. This helps to keep information consistent with your changing drive-thru operation. To use Alt
Config, contact your local technician or call Delphi Display Systems customer service.

4.10.4 View Periods

NOTE: Unit Parameters is a simpler way to view and or
configure the timer's parameters.
This is a view-only screen that shows the current Dayparts and
Shifts setting. The actual programming is set on another
screen (See –
Section 4.12
From ACTIVITY Screen (See –
Click: .
Reminder: Click:
Do not copy or distribute without written permission from Delphi Display Systems, Inc.
Section 4.10.2 Activity Screen):
to scroll through the Configuration screens.
Parameters Programming).
Section 4.10.2 Activity Screen):
to return to the Activity screen.
