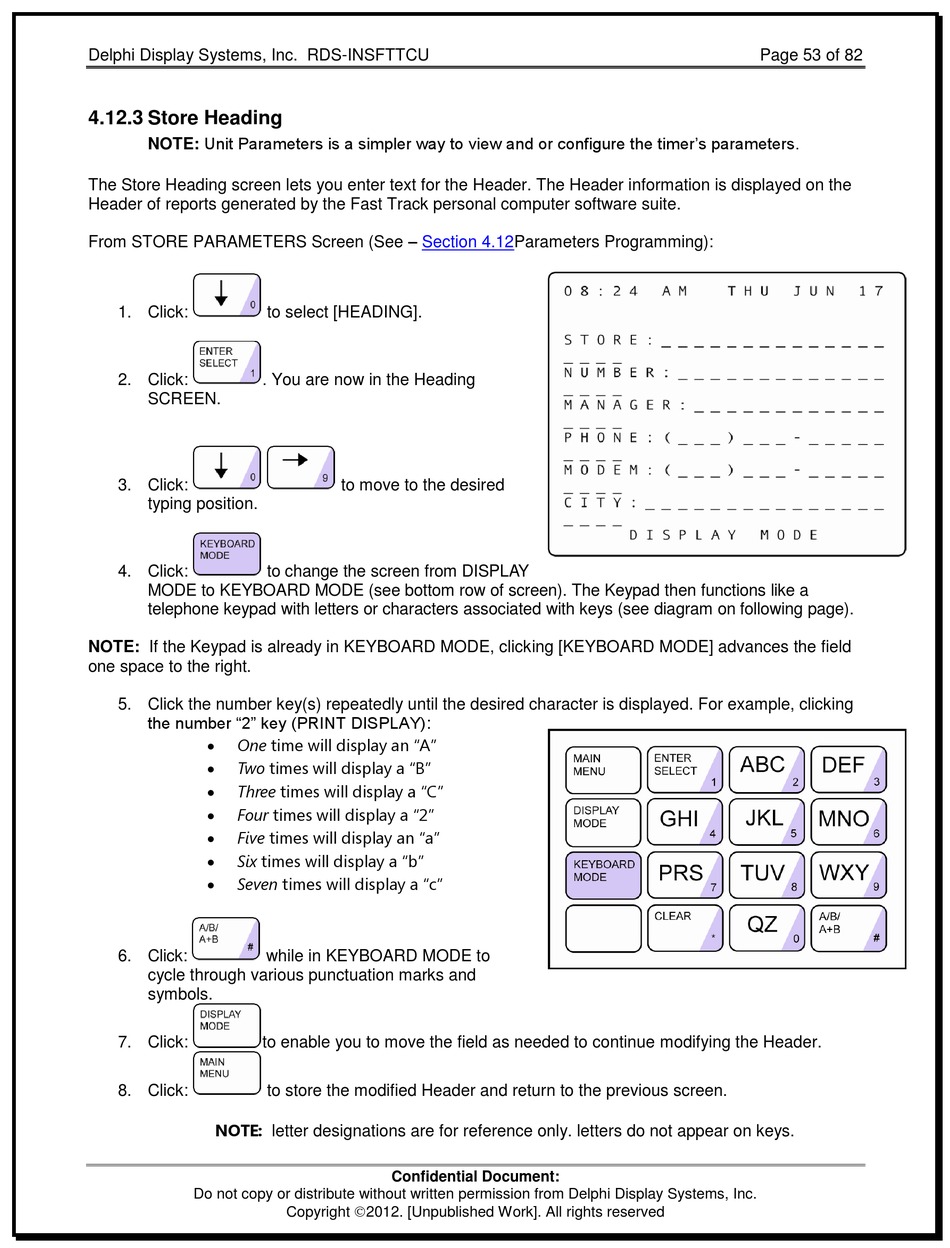

4.12.3 Store Heading

NOTE: Unit Parameters is a simpler way to view and or configure the timer's parameters.
The Store Heading screen lets you enter text for the Header. The Header information is displayed on the
Header of reports generated by the Fast Track personal computer software suite.
From STORE PARAMETERS Screen (See –
1. Click: to select [HEADING].
2. Click: . You are now in the Heading
SCREEN.
3. Click:
typing position.
4. Click: to change the screen from DISPLAY
MODE to KEYBOARD MODE (see bottom row of screen). The Keypad then functions like a
telephone keypad with letters or characters associated with keys (see diagram on following page).
NOTE: If the Keypad is already in KEYBOARD MODE, clicking [KEYBOARD MODE] advances the field
one space to the right.
5. Click the number key(s) repeatedly until the desired character is displayed. For example, clicking
the number "2" key (PRINT DISPLAY):
One time will display an "A"

Two times will display a "B"

Three times will display a "C"

Four times will display a "2"

Five times will display an "a"

Six times will display a "b"

Seven times will display a "c"

6. Click: while in KEYBOARD MODE to
cycle through various punctuation marks and
symbols.
7. Click: to enable you to move the field as needed to continue modifying the Header.
8. Click: to store the modified Header and return to the previous screen.
NOTE: letter designations are for reference only. letters do not appear on keys.
