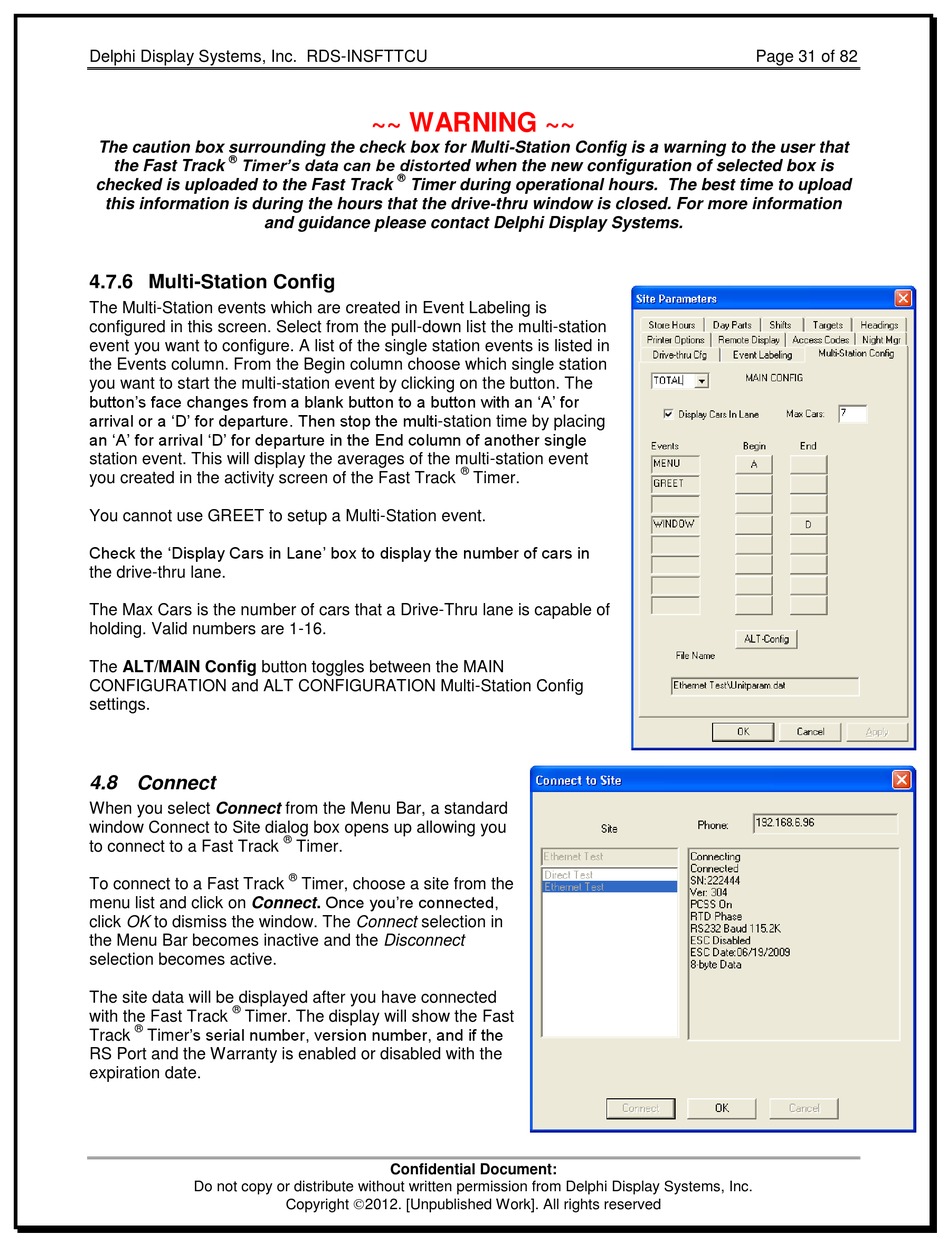

Delphi Display Systems, Inc. RDS-INSFTTCU Page 31 of 82
~~ WARNING ~~
The caution box surrounding the check box for Multi-Station Config is a warning to the user that
®
Timer's data can be distorted when the new configuration of selected box is
the Fast Track
®
checked is uploaded to the Fast Track Timer during operational hours. The best time to upload
this information is during the hours that the drive-thru window is closed. For more information
and guidance please contact Delphi Display Systems.

4.7.6 Multi-Station Config

The Multi-Station events which are created in Event Labeling is
configured in this screen. Select from the pull-down list the multi-station
event you want to configure. A list of the single station events is listed in
the Events column. From the Begin column choose which single station
you want to start the multi-station event by clicking on the button. The
button's face changes from a blank button to a button with an 'A' for
arrival or a 'D' for departure. Then stop the multi-station time by placing
an 'A' for arrival 'D' for departure in the End column of another single
station event. This will display the averages of the multi-station event
®
you created in the activity screen of the Fast Track Timer.
You cannot use GREET to setup a Multi-Station event.
Check the 'Display Cars in Lane' box to display the number of cars in
the drive-thru lane.
The Max Cars is the number of cars that a Drive-Thru lane is capable of
holding. Valid numbers are 1-16.
The ALT/MAIN Config button toggles between the MAIN
CONFIGURATION and ALT CONFIGURATION Multi-Station Config
settings.

4.8 Connect

When you select Connect from the Menu Bar, a standard
window Connect to Site dialog box opens up allowing you
®
to connect to a Fast Track Timer.
®
To connect to a Fast Track Timer, choose a site from the
menu list and click on Connect. Once you're connected,
click OK to dismiss the window. The Connect selection in
the Menu Bar becomes inactive and the Disconnect
selection becomes active.
The site data will be displayed after you have connected
®
with the Fast Track Timer. The display will show the Fast
®
Timer's serial number, version number, and if the
Track
RS Port and the Warranty is enabled or disabled with the
expiration date.
