Software Installation (Using Supplied Thumb Drive) - Delphi Display Systems RDS-INSFTTCU Configuration And User's Manual

Delphi Display Systems, Inc. RDS-INSFTTCU
NOTE: letter designations are for reference only. letters do not appear on keys.
NOTE: Most of the operations performed in Remote Control can be accomplished through "Site
Parameters." See –
Section 4.6

3 Software Installation (using supplied thumb drive)

*** IMPORTANT: PLEASE READ BEFORE INSTALLING! ***
1. It is strongly recommended to exit all programs before installing your software.
2. Insert the USB drive into your USB slot.
3. If the computer senses the drive and asks what you want to do, select OPEN TO VIEW FILES,
otherwise, browse My Computer for the new REMOVABLE DISK and open it.
4. Locate and double click the file called "Fast Track PC Software Setup 225H DOT NET.exe" to begin
the software installation.
5. This starts the Install Shield
Next to continue with the installation or Cancel to quit.
6. Software license agreement. Click I accept the terms of the license agreement, if you agree with the
terms and continue with the installation, Click I do not accept the terms of the license agreement, to
cancel installation and exit, or Back to return to the previous screen. Click on the print button to print
the license to your printer.
7. Enter the user name and company name.
8. Select the type install, typical or custom.
a. Typical ~ Installation is automatic, files installed to C:\Program Files\Fast Track Software
Suite
b. Custom ~ Choose a destination location. Click Next to create the default location
(C:\Program Files\Fast Track Software Suite) and continue, click Browse to select
another location then Yes to confirm and then Next to continue or click Back to return to
the previous screen or Cancel to quit.
c. Custom ~ Select the components that you would like to install. Program File, Manuals
9. Click install, Install Shield
when the files have been transferred, click on Finish to end.
10. Close the Removable Disk directory, use the Windows method to "SAFELY REMOVE HARDWARE"
in the SysTray, select the MASS STORAGE DEVICE that matches, then remove the USB drive when
prompted.
Installation of Software is now complete and ready for configuration.
NOTE: The USB drive contains other support utilities that are not installed at time of installation.
These files may be copied into your Fast Track directory at any time.
Do not copy or distribute without written permission from Delphi Display Systems, Inc.

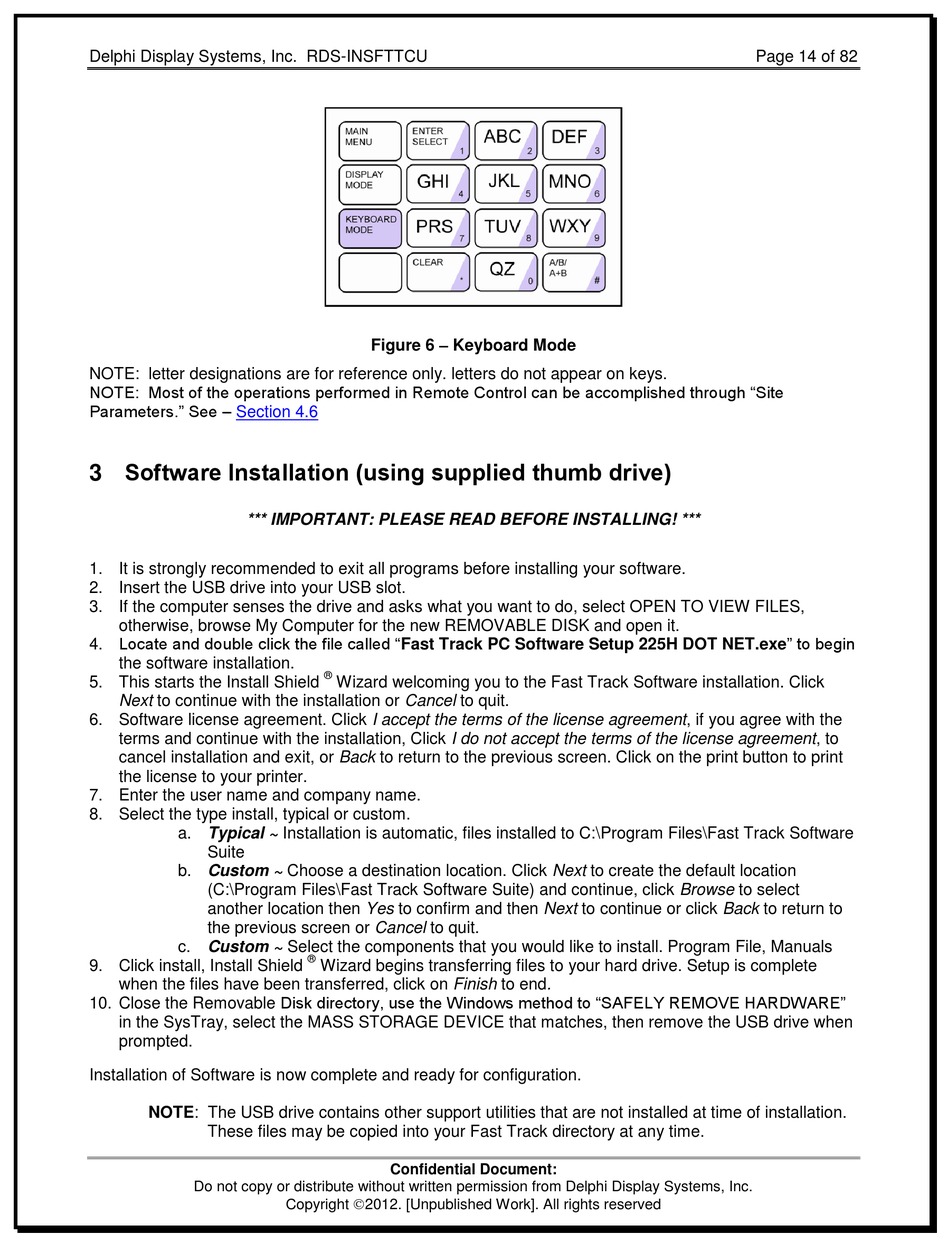

Figure 6 – Keyboard Mode
®
Wizard welcoming you to the Fast Track Software installation. Click
®
Wizard begins transferring files to your hard drive. Setup is complete
Confidential Document:
Copyright 2012. [Unpublished Work]. All rights reserved
Page 14 of 82
