Connecting Additional Equipment

VGA output
Use dual display adapter
for projector or monitor 2

Additional microphone pod

© Polycom, Inc.

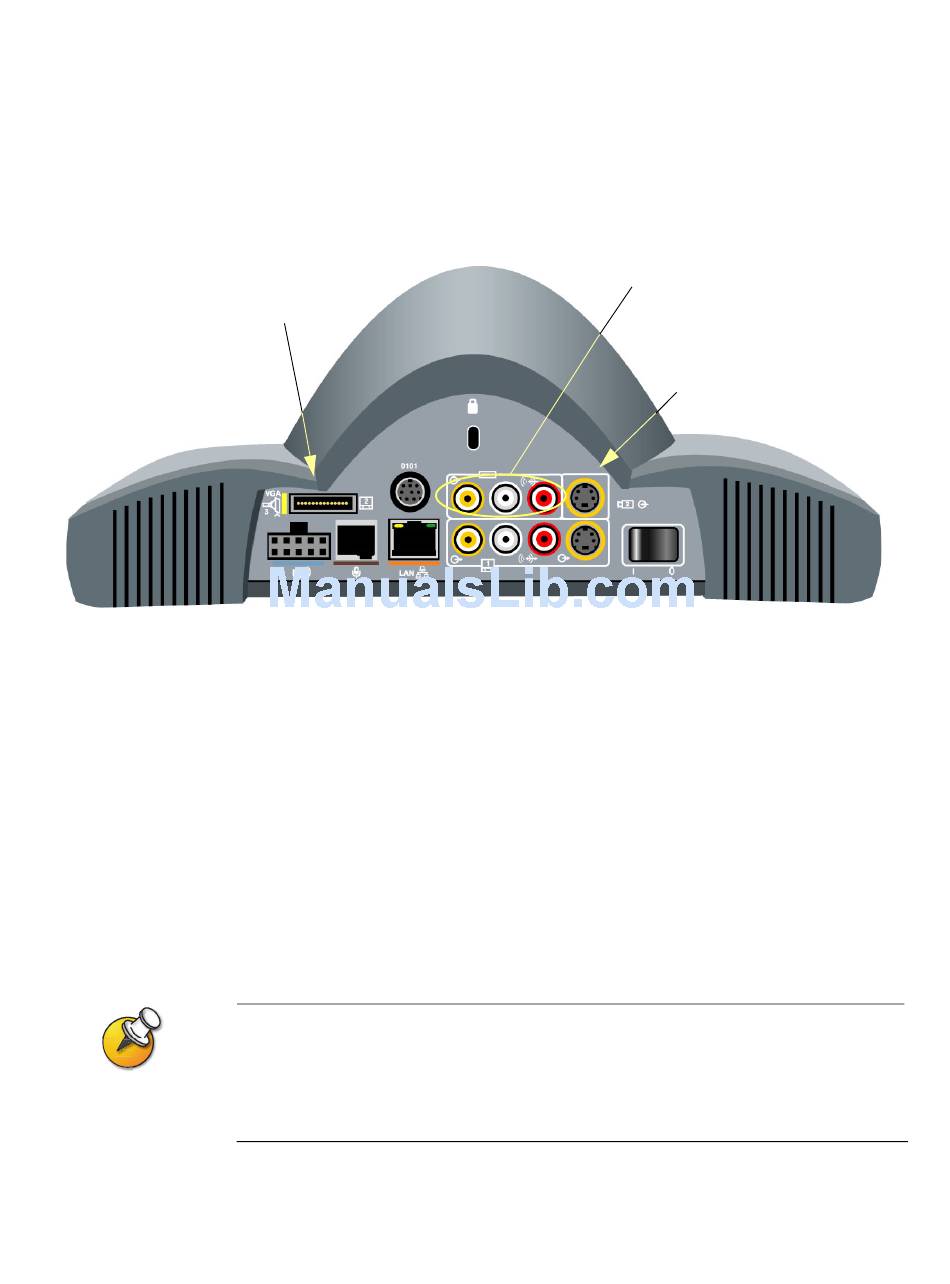

The following figure identifies which ports to use to connect additional equipment
to the VSX system.
Before you connect additional equipment to the VSX system:
1. Ensure that the system is switched off.
2. Ensure that the subwoofer's power cord is not connected to a power outlet.
1. Connect a conference link cable to the available connector on the microphone
pod, or to the available conference link connector on the bottom of the Visual
Concert VSX.
2. Connect the additional microphone pod to the conference link cable.
You can connect two microphone pods to the VSX 7000 set-top, or two microphone pods
and a Visual Concert VSX data collaboration unit.
The cable from the system to the first microphone pod may be up to 50 ft. (15 m); cables
farther from the system must be no more than 30 ft (9 m).
Chapter 2 - Setting Up the Equipment
VCR/DVD inputs
Use triple RCA cable
to play recordings into calls
Camera 2 input
Use S-Video
cable
