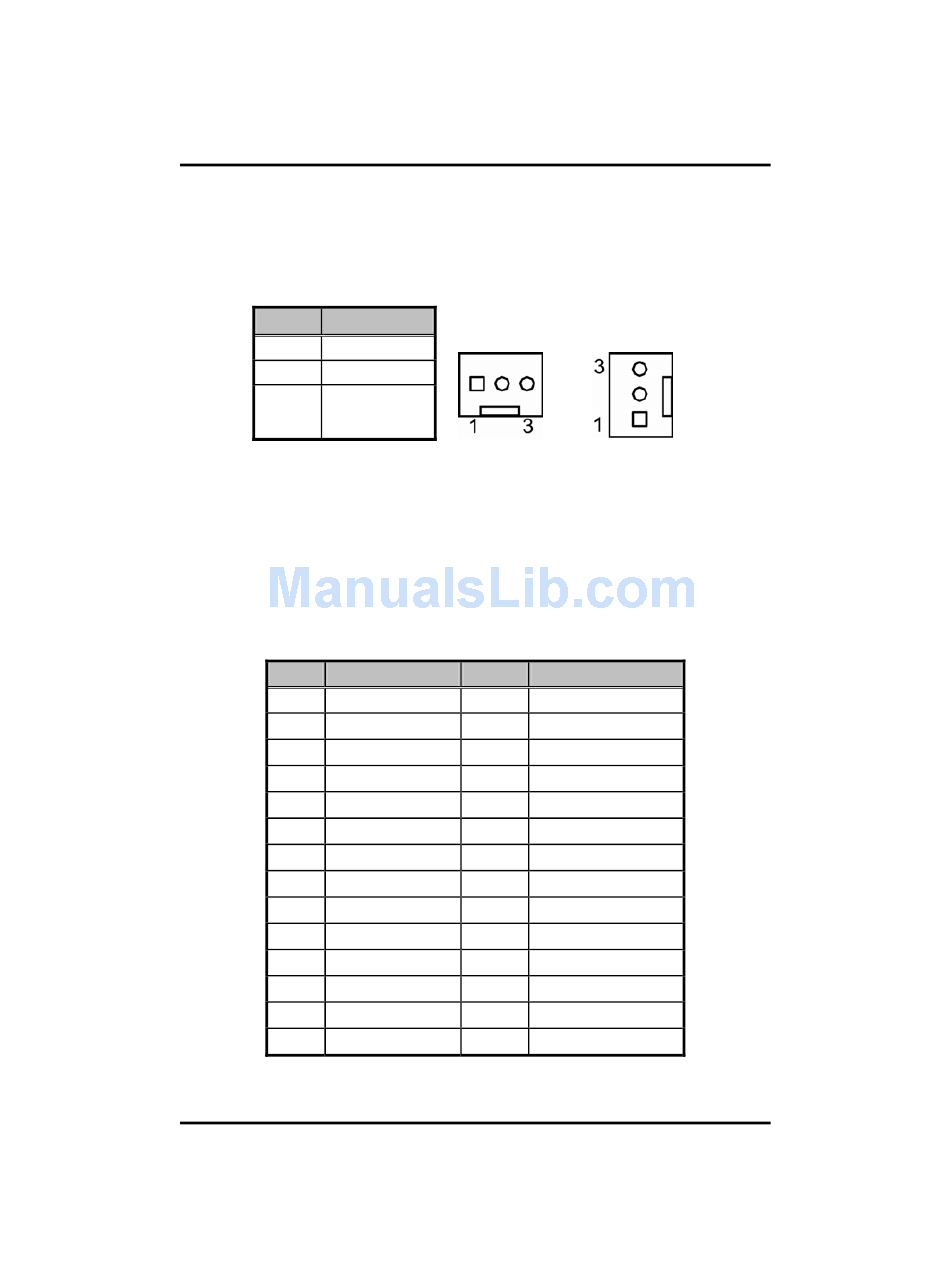

2.4.16 CPU & System Fan Connectors: FAN1, FAN2
Fan1 is a fan connector for CPU, and FAN2 for system. Pentium
microprocessors require a fan for heat dispensing. The CPU/System
fan connectors respectively provide power to the CPU/System fans.
Pin Description
1 Ground
2 +12V
3 Sensor
2.4.17 CompactFlash
The board is equipped with a CompactFlash
the solder side to support an IDE interface CompactFlash
with DMA mode supported. The socket is especially designed to avoid
incorrect installation of the CompactFlash
or removing the CompactFlash
system power is off. The CompactFlash
C: or D: disk drive in your PC system.
Pin Description
1 GND
2 Data 3
3 Data 4
4 Data 5
5 Data 6
6 Data 7
7 CS0-
8 Address 10
9 ATASEL
10 Address 9
11 Address 8
12 Address 7
13 +5V
14 Address 6
Jumpers and Connectors
EP830 All-In-One EPIC Board User's Manual
FAN1
™
Socket: CFS1
TM
disk type-II socket on
TM
disk card. When installing
TM
disk card, please make sure the
TM
disk card is defaulted as the
Pin Description
26 CD1-
27 Data 11
28 Data 12
29 Data 13
30 Data 14
31 Data 15
32 CS1-
33 VS1-
34 IORD-
35 IOWR-
36 WE#
37 INTR
38 +5V
39 CSEL-
FAN2
TM
disk card
