2.4.4

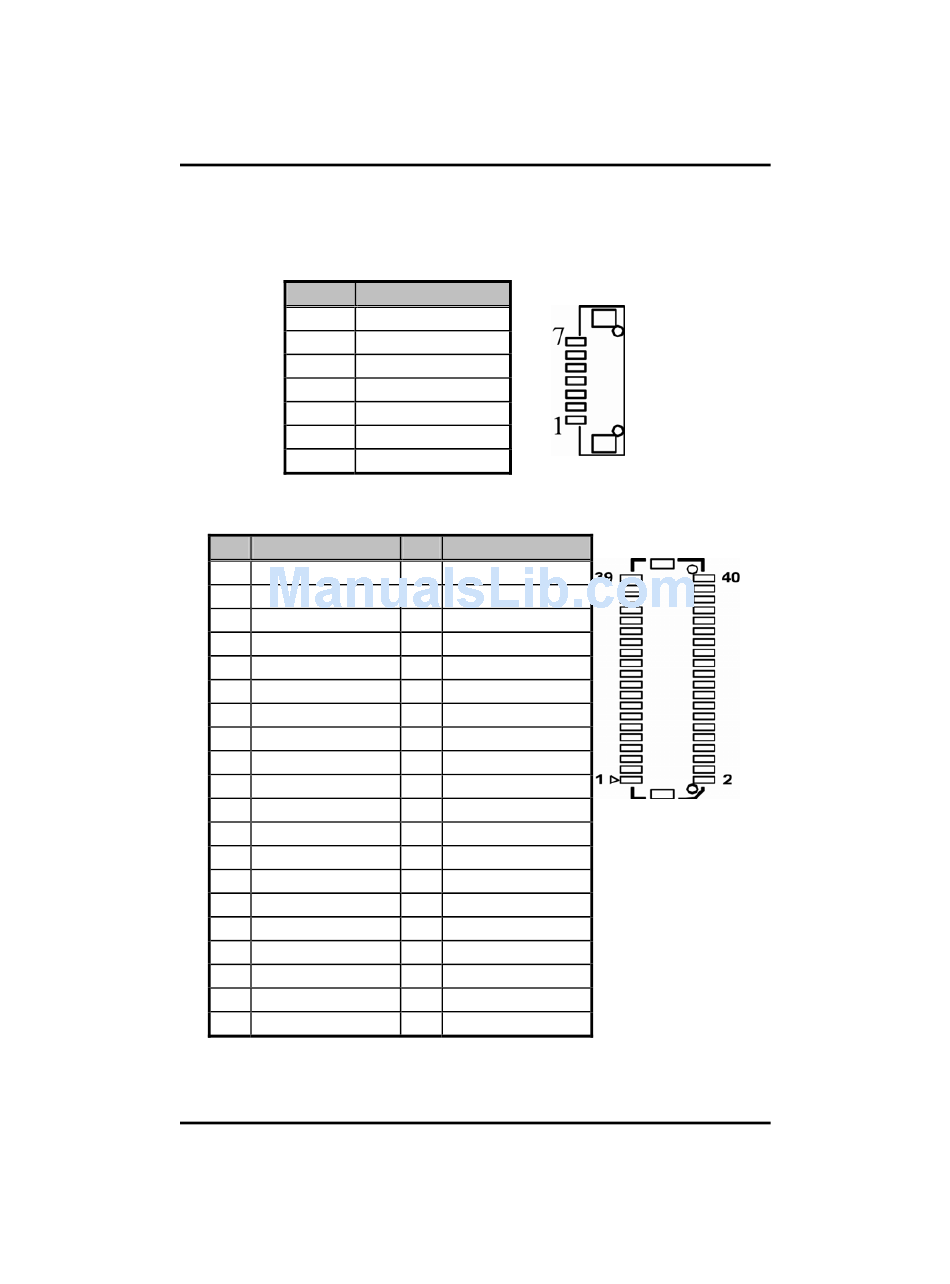

LVDS Backlight Connector: CN4

The 7-pin inverter connector on the EP830 is with Hirose connector.
The matching connector is strongly recommended to use Hirose DF13-
7S-1.25C.
Pin
1
2
3
4
5
6
7
2.4.5

JST Connector for LVDS Flat Panel: CN5

Pin Description
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 Channel B D3-
13 Channel B D3+
15 GND
17 Channel B CLK-
19 Channel B CLK+
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
33 GND
35 Channel A D2-
37 Channel A D2+
39 GND
Jumpers and Connectors
EP830 All-In-One EPIC Board User's Manual
Description
12V
12V
5V
ENABLE
GND
GND
GND
Pin Description
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 Channel B D0-
14 Channel B D0+
16 GND
18 Channel B D1-
20 Channel B D1+
22 GND
24 Channel B D2-
26 Channel B D2+
28 GND
30 Channel A D3-
32 Channel A D3+
34 GND
36 Channel A CLK-
38 Channel A CLK+
40 GND
CN4
CN5
