EP830 All-In-One EPIC Board User's Manual
2.3.1

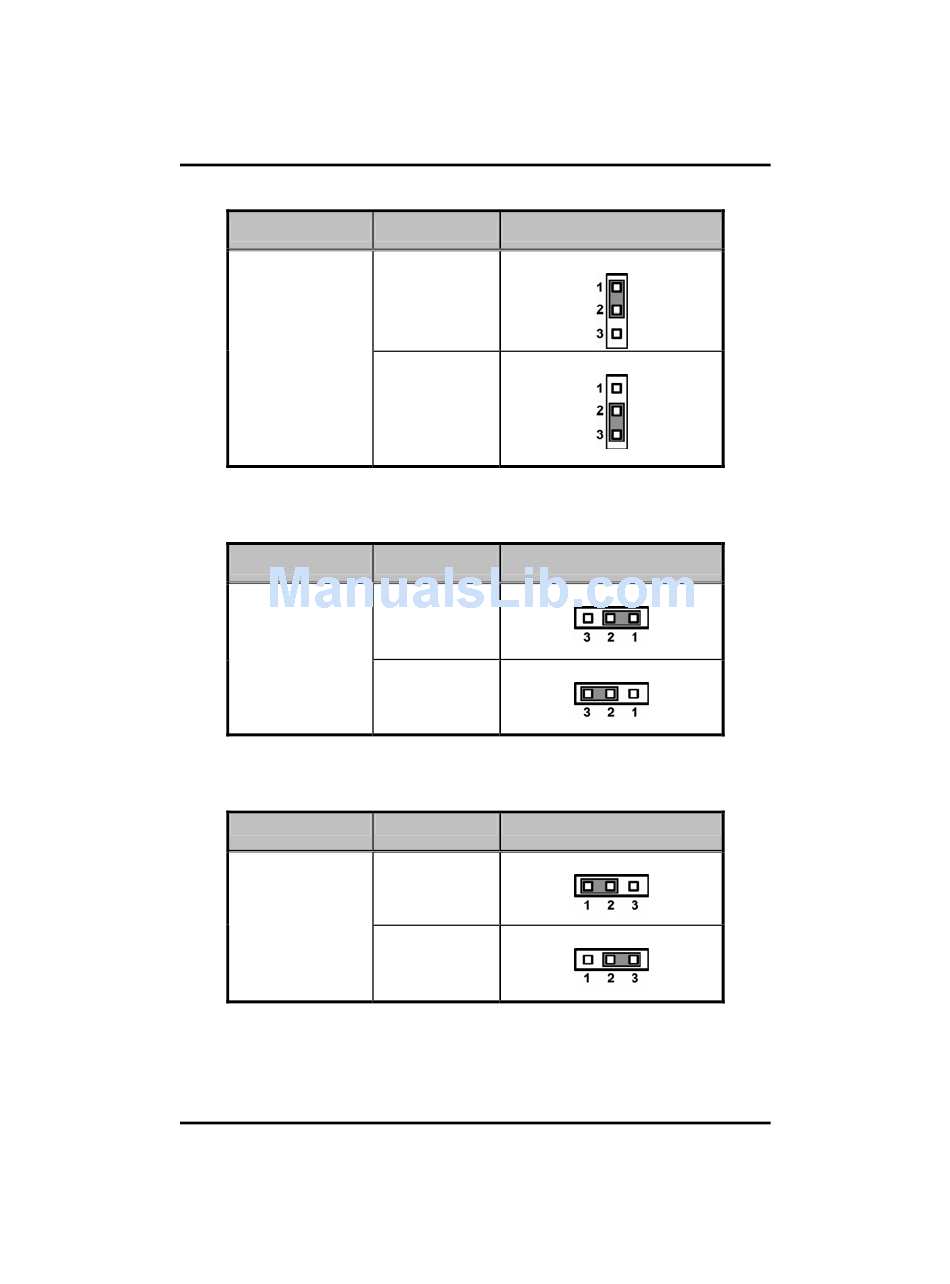

CompactFlash Mode Selection Jumper: JP1

Description
CompactFlash
Mode Selection
2.3.2

Power AT or ATX Selection Jumper: JP2

This jumper let you select either AT or ATX power supply.
Description
Power Supply
Selection
2.3.3

LVDS Voltage Selection Jumper: JP3

This jumper is to select the voltage for LVDS interface.
Description
LVDS Voltage
Selection
10
Function
Slave (Default)
Master
Function
ATX POWER
(Default)
AT POWER
Function
3.3V (Default)
5V
Jumper Setting
JP1
JP1
Jumper Setting
JP2
JP2
Jumper Setting
JP3
JP3
Jumpers and Connectors
