EP830 All-In-One EPIC Board User's Manual
2.4.6

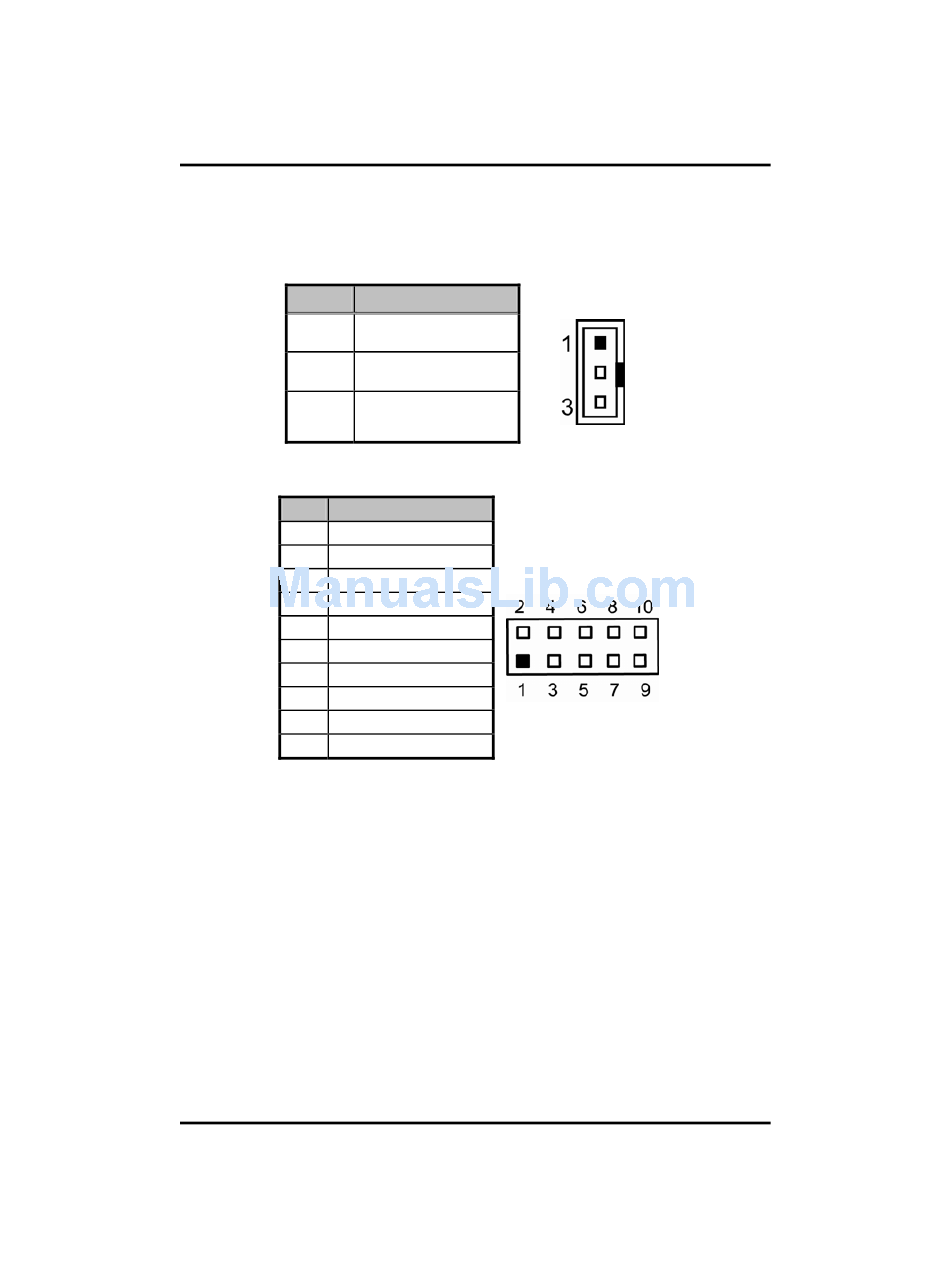

SMBUS Connector: CN6

Connector CN6 is for SMBUS interface support.
Pin
1
2
3
2.4.7

IEEE 1394 Connectors: CN7/CN10

Pin
1 XTPA1P
2 XTPA1N
3 GND
4 GND
5 XTPB1P
6 XTPB1N
7 +12V
8 +12V
9 N.C.
10 GND
22
Description
CLOCK
DATA
GND
Description
CN7, CN10
CN6
Jumpers and Connectors
