2.3.4

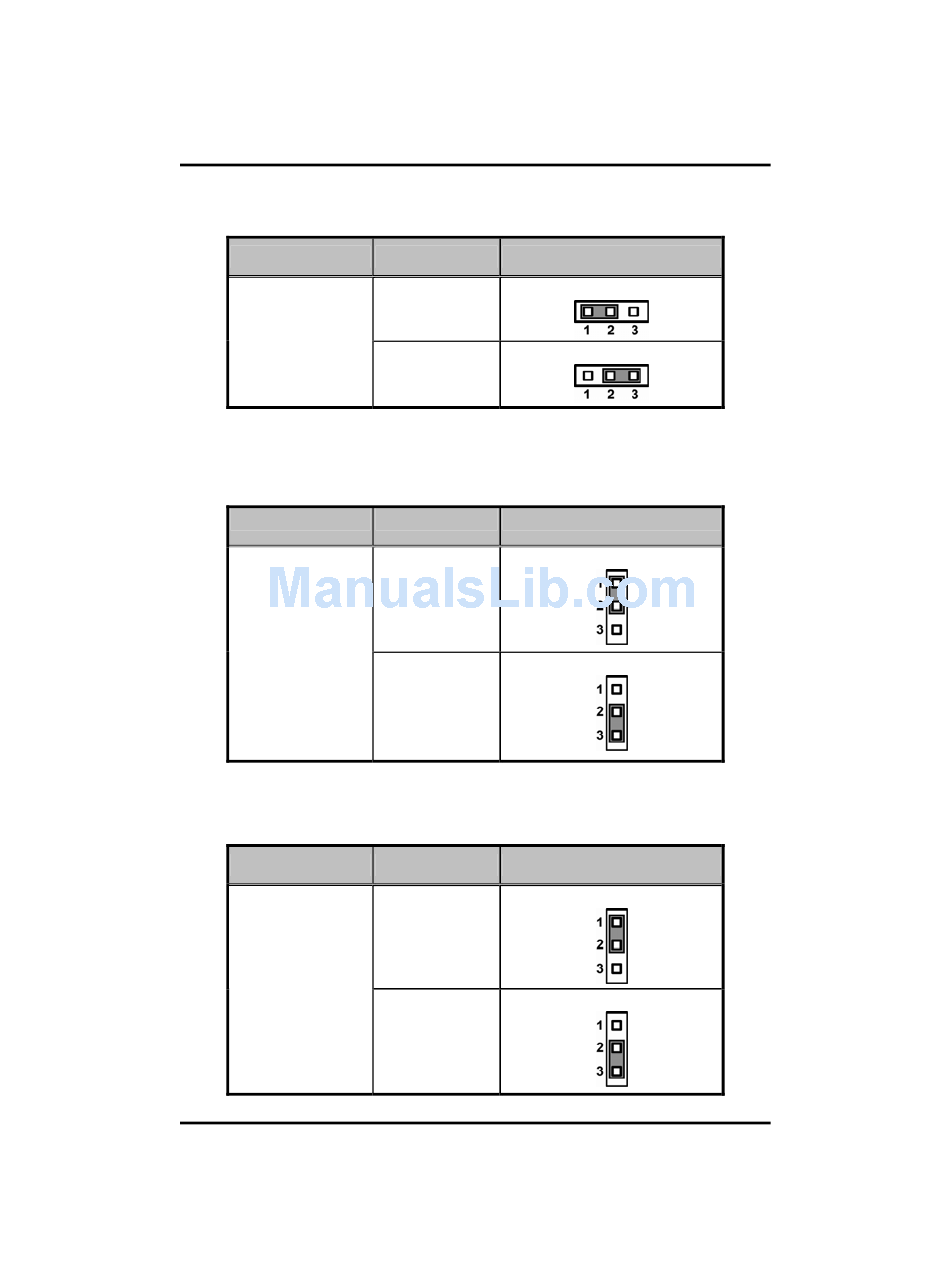

USB Voltage Selection Jumpers: JP4, JP7

This jumper is to select the voltage for USB interface.
Description
USB Voltage
Selection
2.3.5

CMOS Clear Jumper: JP5

You may need to use this jumper is to clear the CMOS memory if
incorrect settings in the Setup Utility.
Description
CMOS Clear
2.3.6

CompactFlash Voltage Selection Jumper: JP6

This jumper is to select the voltage for CompactFlash interface.
Description
CompactFlash
Voltage Selection
Jumpers and Connectors
EP830 All-In-One EPIC Board User's Manual
Function
5V_SBY
5V (Default)
Function
Normal (Default)
Clear CMOS
Function
3.3V (Default)
5V
Jumper Setting
JP4/JP7
JP4/JP7
Jumper Setting
JP5
JP5
Jumper Setting
JP6
JP6
11
