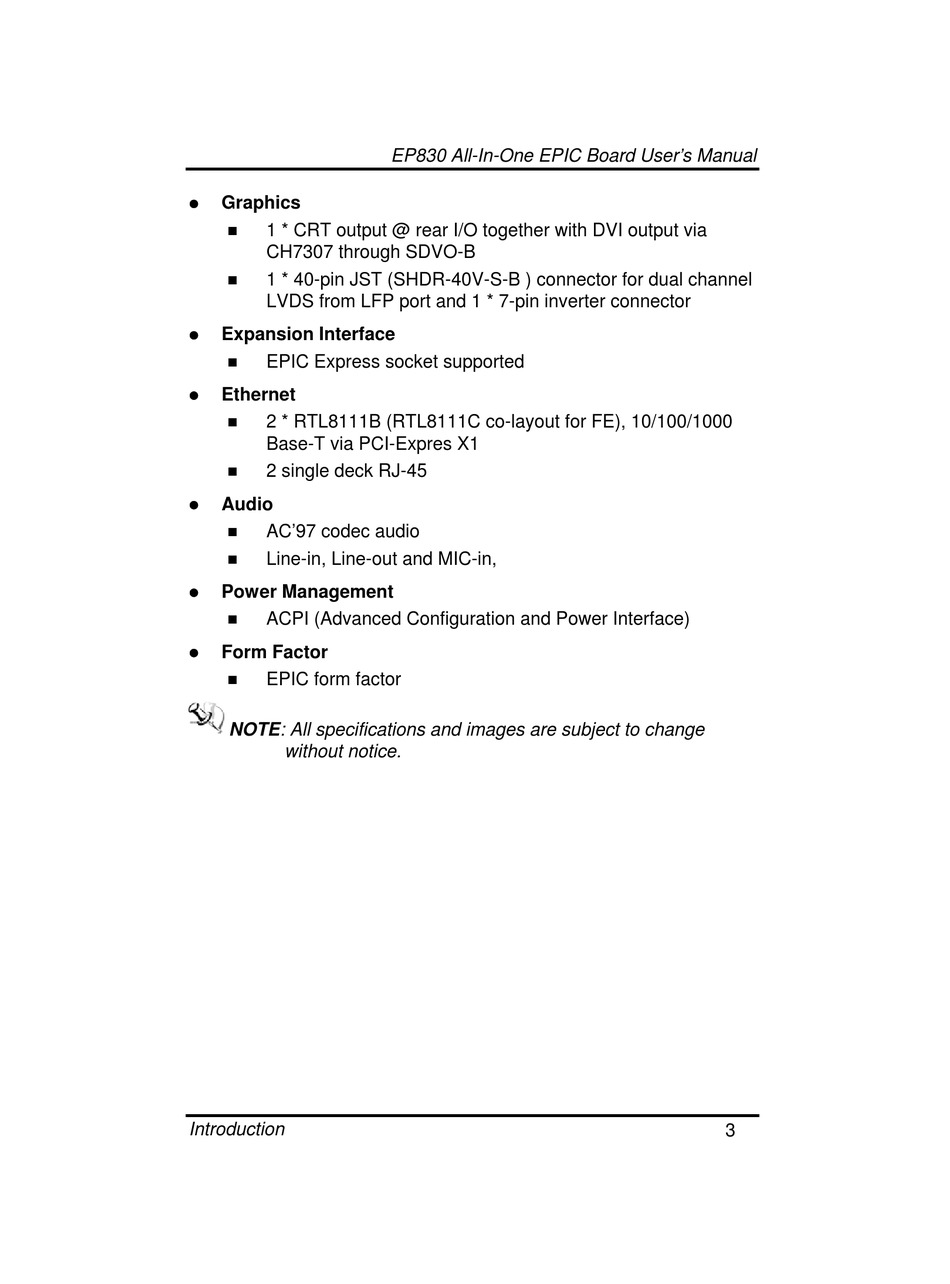

AXIOMTEK EP830 Series User Manual page 9

 Graphics
 1 * CRT output @ rear I/O together with DVI output via
CH7307 through SDVO-B
 1 * 40-pin JST (SHDR-40V-S-B ) connector for dual channel
LVDS from LFP port and 1 * 7-pin inverter connector
 Expansion Interface
 EPIC Express socket supported
 Ethernet
 2 * RTL8111B (RTL8111C co-layout for FE), 10/100/1000
Base-T via PCI-Expres X1
2 single deck RJ-45

 Audio
 AC'97 codec audio
 Line-in, Line-out and MIC-in,
 Power Management
 ACPI (Advanced Configuration and Power Interface)
 Form Factor
 EPIC form factor
NOTE: All specifications and images are subject to change
without notice.
Introduction
EP830 All-In-One EPIC Board User's Manual
3
