EP830 All-In-One EPIC Board User's Manual
Pin Description
1 MDI0+
2 MDI0-
3 MDI1+
4 MDI2+
5 MDI2-
6 MDI1-
7 MDI3+
8 MDI3-
A Active LED
B 100/1000 LAN LED

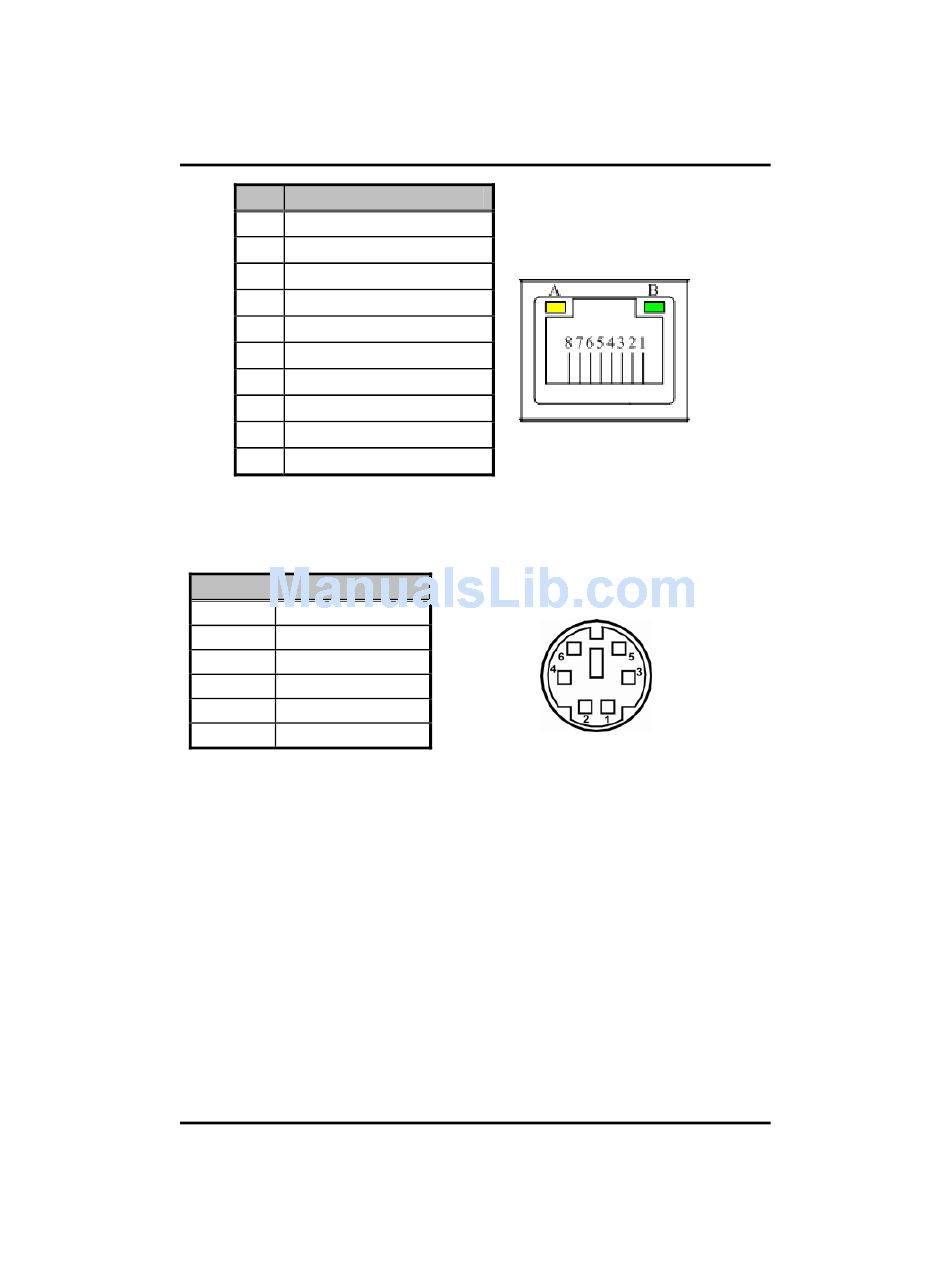

2.4.12 Keyboard and PS/2 Mouse Connector: CN13

The board provides a keyboard and Mouse interface. CN13 is a DIM
connector for PS/2 keyboard Connection VIA "Y" Cable.
Pin Signal
1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard CLK
6 Mouse CLK
26
LAN1
CN13
Jumpers and Connectors
