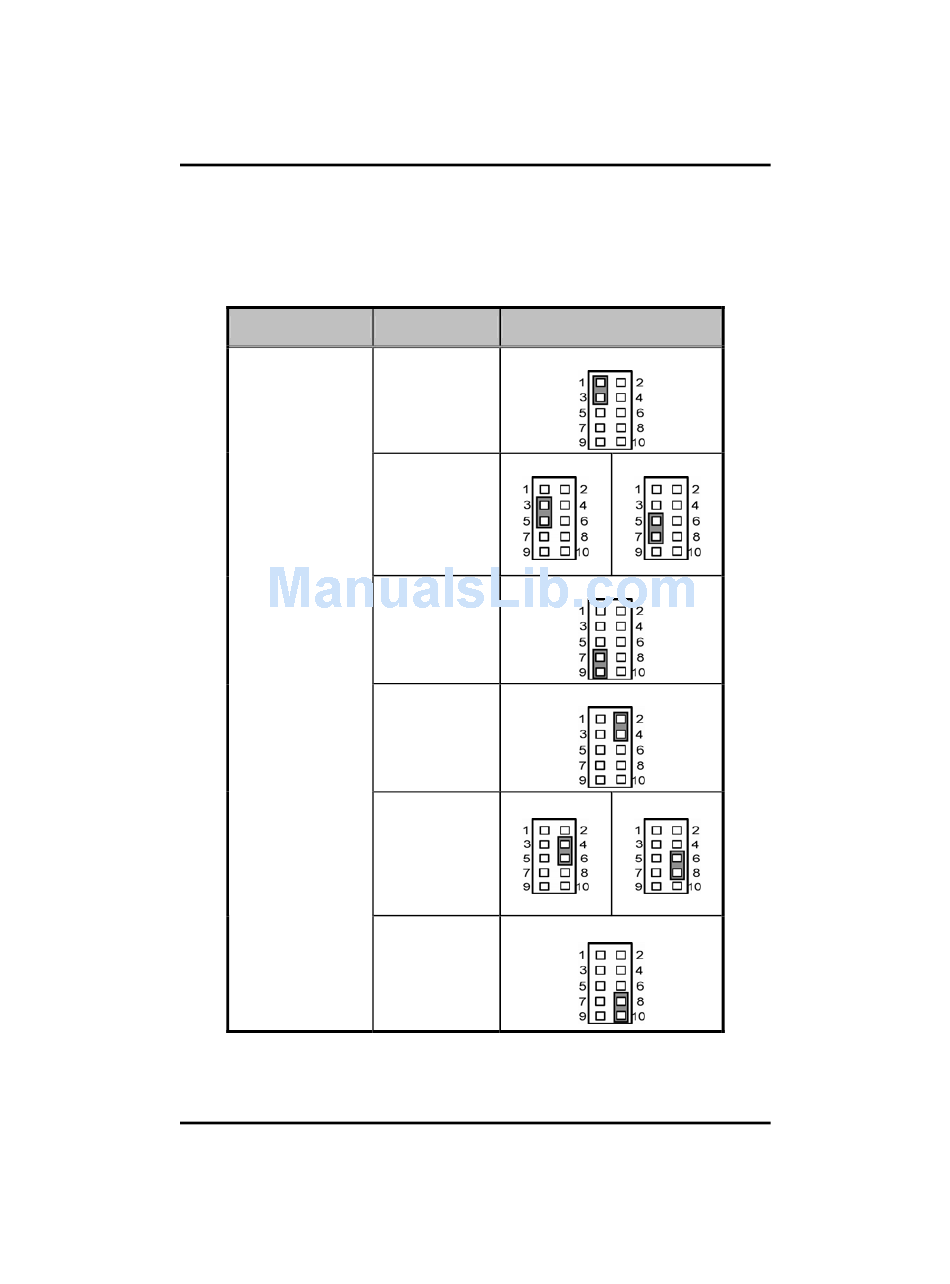

2.3.8 COM1~4 Mode Selection Jumpers: JP9, JP10,

JP12, JP13

These jumpers select the COM1, COM2, COM3, COM4 ports' DCD

and RI mode.

Description

COM1

Jumpers and Connectors

EP830 All-In-One EPIC Board User's Manual

Function

Pin 1=12V

Pin 1=5V

JP12

*Pin 1=DCD

(Default)

Pin 9=12V

Pin 9=5V

JP12

*Pin 9=RI

(Default)

Jumper Setting

JP12
