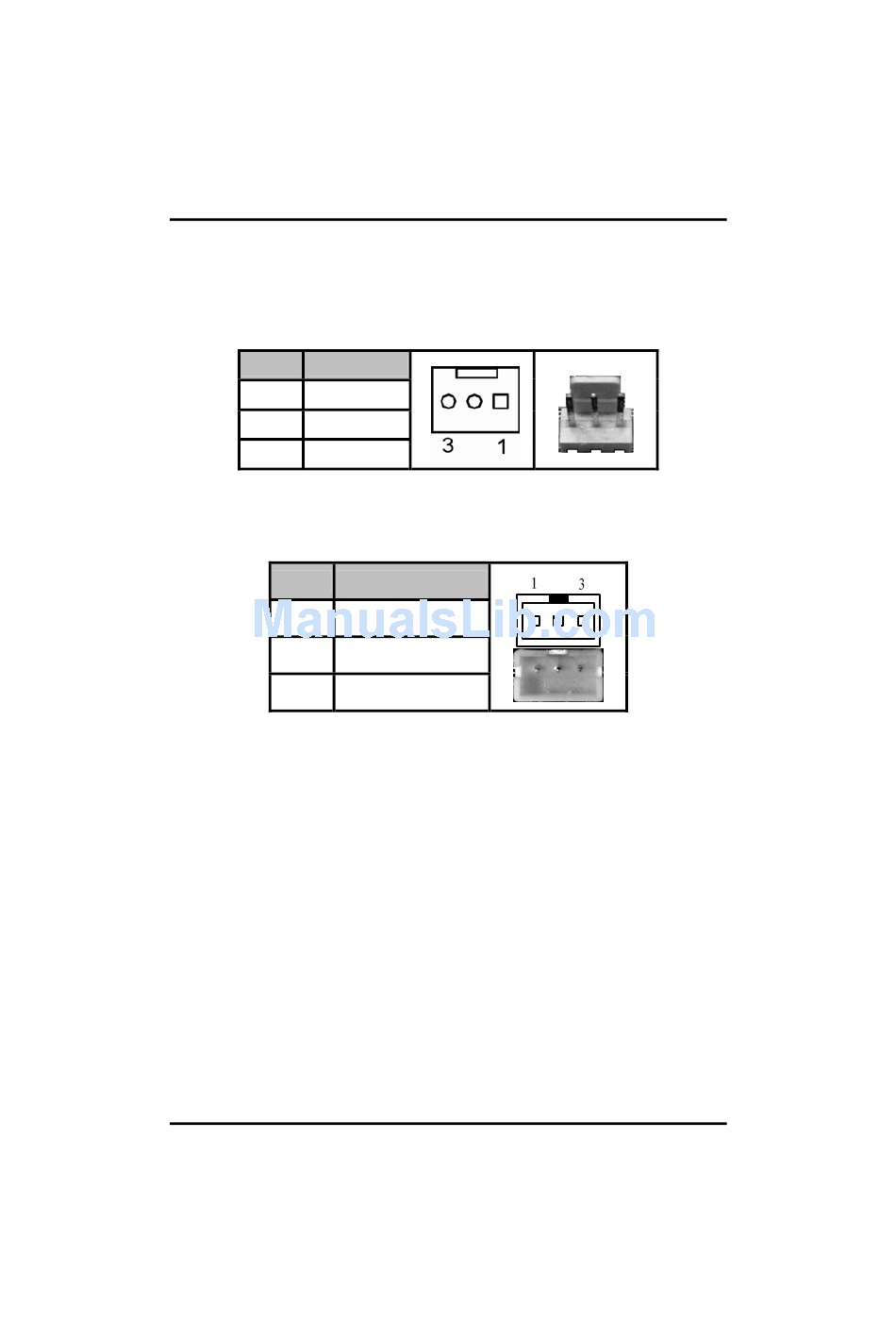

2.4.5 CPU & System Fan Connectors (CN5, CN7, CN8)
CN5 is a fan connector for CPU, and CN7, CN8 for system. Pentium
microprocessors require a fan for heat dispensing. The CPU/System
fan connectors respectively provide power to the CPU/System fans.
Pin
Signal
1
GND
2
+12V
3
Sensor
2.4.6 SMBUS Connector (CN6)
Connector CN5 is for SMBUS interface support.
Pin
1
CLOCK
2
DATA
3
GND
Jumpers and Connectors
SHB211 Socket P Half-Size SBC User's Manual
Signal
23
