Note: One LAN profile shall be enabled at least to keep the normal operation. The default
LAN profile named "lan1" shall not be deleted. Otherwise, the system might be damaged. If
such file is deleted due to careless, please reset your router to restore the default setting.
4 . 2 . 1 . 1
4 . 2 . 1 . 1

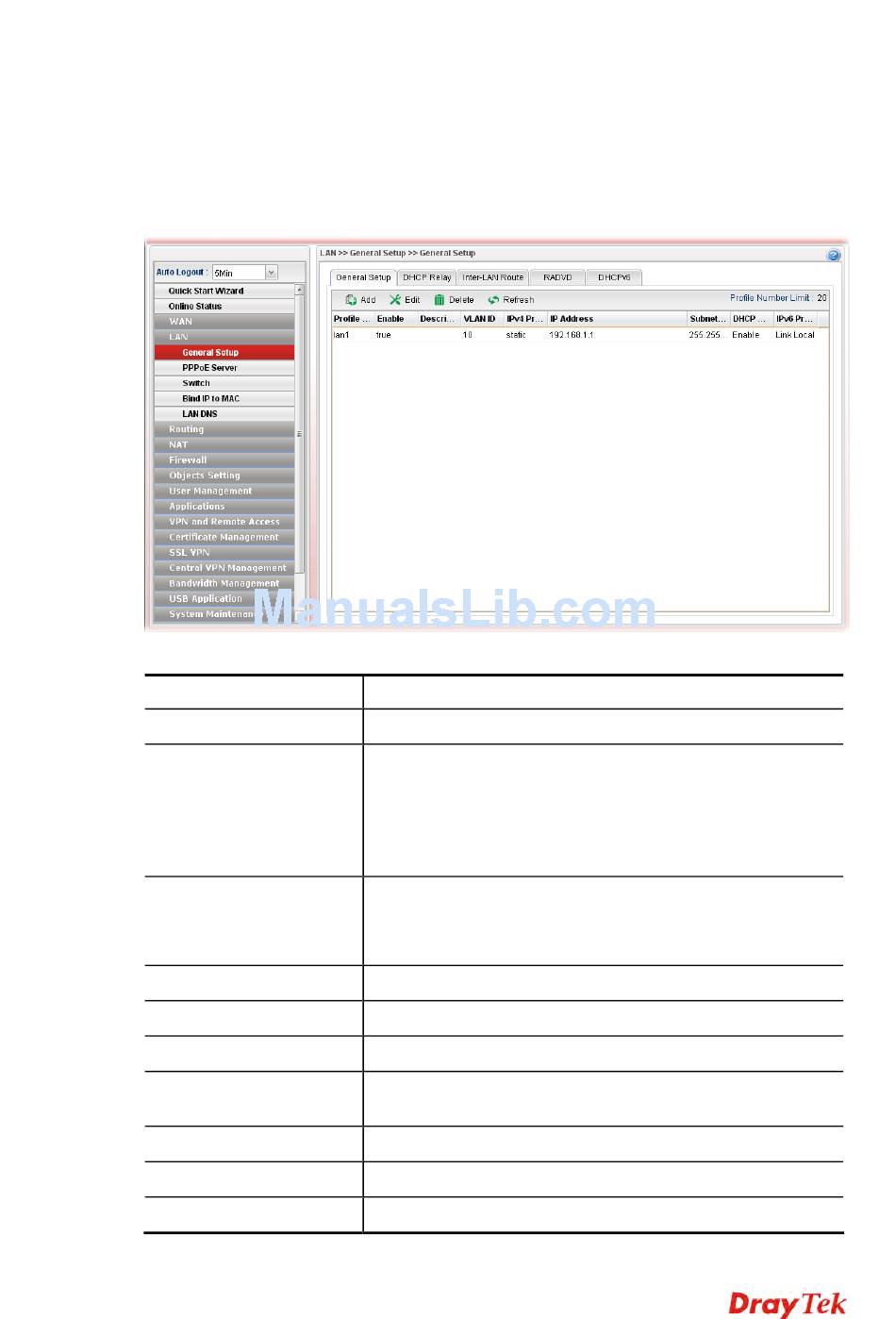

This page allows you to enable the profile, give a brief explanation for such profile, specify
the VLAN ID, specify MAC address, and choose protocol type for such profile.
Each item will be explained as follows:
Item
Add
Edit
Delete
Refresh
Profile Number Limit
Profile (max length:7)
Enable
Description
VLAN ID
IPv4 Protocol
Vigor2960 Series User's Guide
G e n e r a l S e t u p
G e n e r a l S e t u p
Description
Add a new LAN profile.
Modify the selected LAN profile.
To edit a profile, simply select the one you want to modify
and click the Edit button. The edit window will appear for
you to modify the corresponding settings for the selected
rule.
Remove the selected LAN profile.
To delete a rule, simply select the one you want to delete and
click the Delete button.
Renew current web page
Display the total number of the profiles to be created.
Display the name of the LAN profile.
Display the status of the profile. False means disabled; True
means enabled.
Display the brief explanation for the LAN profile.
Display the VLAN ID configured for the LAN profile.
Display the IPv4 protocol type for the LAN profile.
