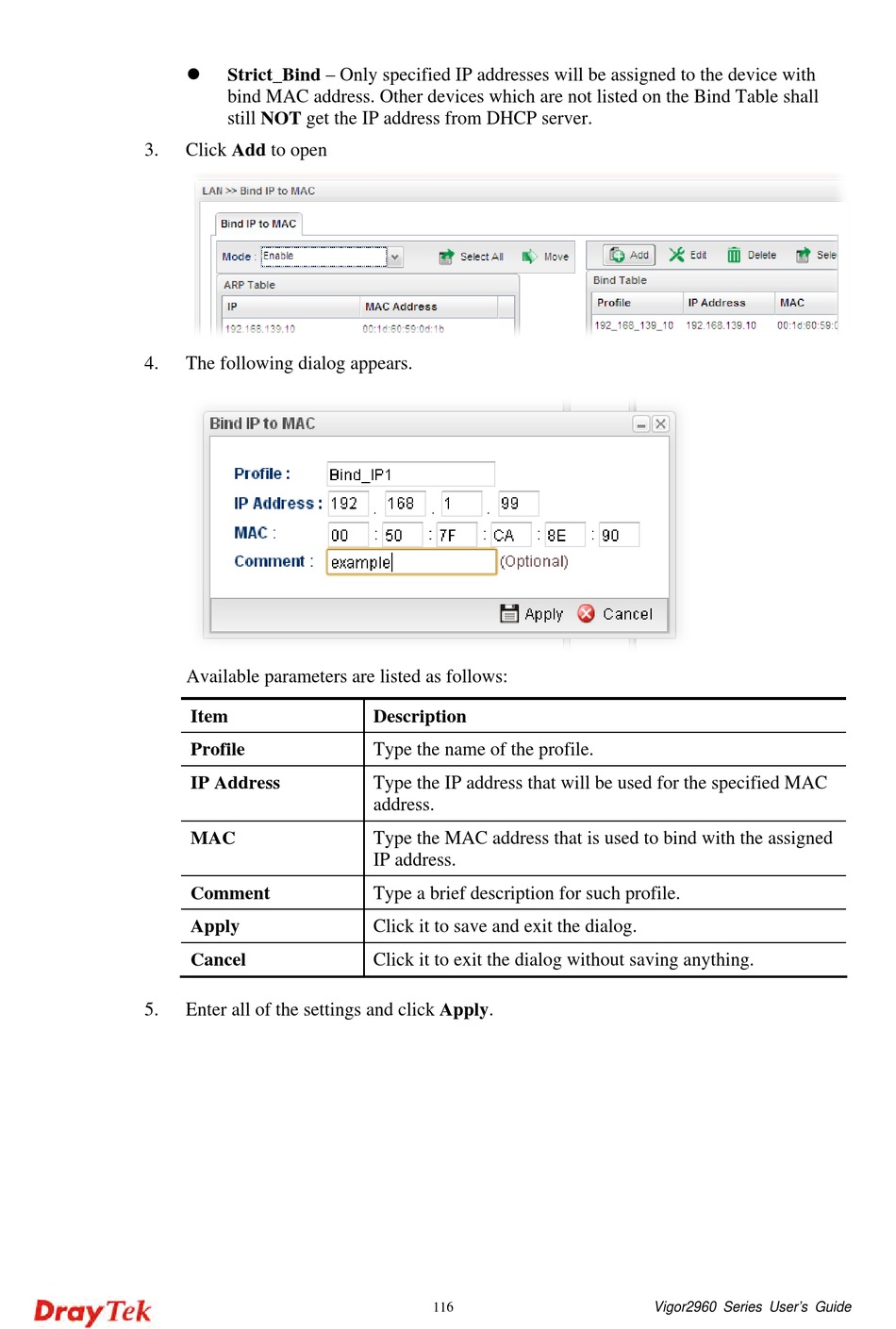

Draytek Vigor2960 Series User Manual page 124


Strict_Bind – Only specified IP addresses will be assigned to the device with
bind MAC address. Other devices which are not listed on the Bind Table shall
still NOT get the IP address from DHCP server.
3. Click Add to open
4. The following dialog appears.
Available parameters are listed as follows:
Item
Profile
IP Address
MAC
Comment
Apply
Cancel
5. Enter all of the settings and click Apply.
Description
Type the name of the profile.
Type the IP address that will be used for the specified MAC
address.
Type the MAC address that is used to bind with the assigned
IP address.
Type a brief description for such profile.
Click it to save and exit the dialog.
Click it to exit the dialog without saving anything.
116
Vigor2960 Series User's Guide
