Draytek Vigor2960 Series User Manual page 70

4 . 1 . 1 . 1 E t h e r n e t W
4 . 1 . 1 . 1 E t h e r n e t W

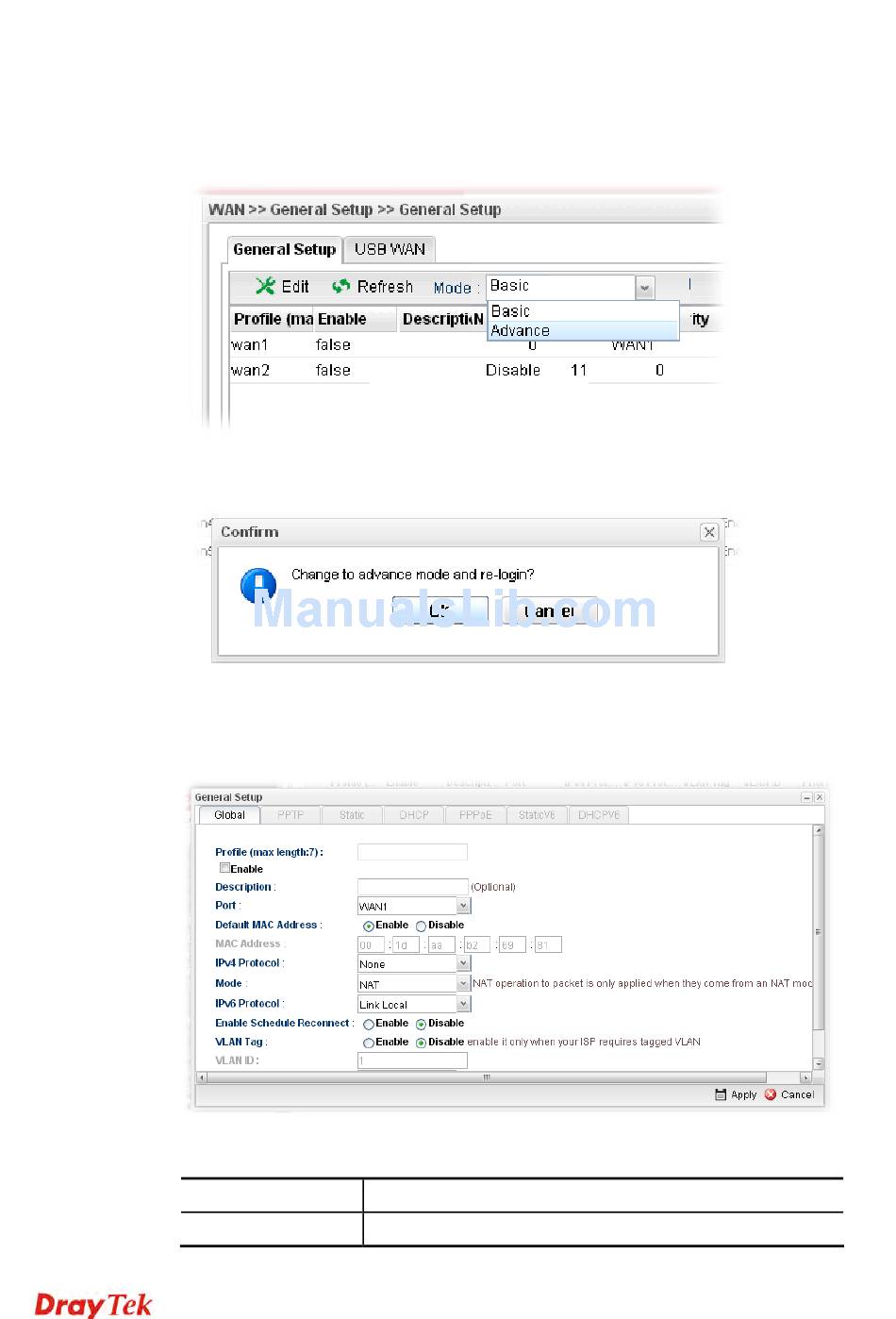

How to add a new WAN profile:
1. If the router is under Basic mode, you have to switch into Advance mode. If the router
is under Advance mode, go to Step 4 directly.
2. A confirmation dialog will appear. Click OK to apply the related settings for Advance
mode.
3. Re-login the system.
4. Open WAN>>General Setup. Click the Add button to open the following dialog.
Different protocol type selected will bring up different configuration web page.
Available parameters for global configuration are listed as follows:
Item
Profile (max
A N P r o f i l e s
A N P r o f i l e s
Description
Type a name (less than 7 characters) for such profile.
62
Vigor2960 Series User's Guide
