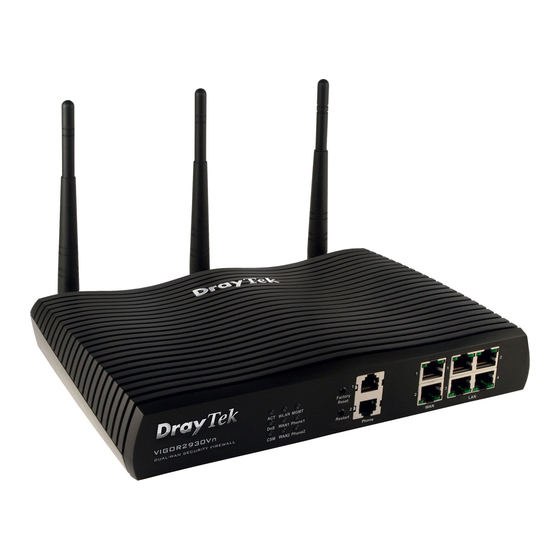

Draytek Vigor2930 Series Quick Start Manual
  1. Manuals
  2. Brands
  3. Draytek Manuals
  4. Firewall
  5. Vigor2930 Series
  6. Quick start manual
Draytek Vigor2930 Series Quick Start Manual

Draytek Vigor2930 Series Quick Start Manual

Dual-wan security firewall
Hide thumbs Also See for Vigor2930 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Vigor2930 Series
Dual-WAN Security Firewall
Quick Start Guide
Version: 1.0
Date: 2007/05/15
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor2930 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor2930 Series

Summary of Contents for Draytek Vigor2930 Series

  • Page 1 Vigor2930 Series Dual-WAN Security Firewall Quick Start Guide Version: 1.0 Date: 2007/05/15...
  • Page 2 Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
  • Page 3 No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor2930 Series Router DrayTek Corp. declares that Vigor2930 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 89/336/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

  • Page 4: Table Of Contents

    1. Introduction......................1 1.1 Panel Explanation ........................2 1.1.1 For Vigor2930 ....................... 2 1.1.2 For Vigor2930n ......................3 1.1.3 For Vigor2930Vn ......................4 1.1.4 For Vigor2930VS......................5 1.1.5 For Vigor2930VSn......................7 1.2 Package Content........................9 2. Installing Your Router..................11 2.1 Hardware Installation.........................11 2.2 ISDN Phone Adapter Installation....................

  • Page 5: Introduction

    ISDN S0 intern in Germany. The ISDN S0 1 port on Vigor2930 series is fixed to connect phone forever and the LED on the connecter will light orange always. However ISDN S0 2 port on this device is configurable for connecting phone or accessing Internet according to the settings that you adjust on WEB UI (please refer to VoIP>>Phone Setting for detailed information).

  • Page 6: Panel Explanation

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The DoS/DDoS function is active. Blinking It will blink while deleting an attack. The profile of CSM (Content Security Management) for IM/P2P application is active. (It is enabled from Objects Setting >>...

  • Page 7: For Vigor2930N

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The DoS/DDoS function is active. Blinking It will blink while deleting an attack. The profile of CSM (Content Security Management) for IM/P2P application is active. (It is enabled from Objects Setting >>...

  • Page 8: For Vigor2930Vn

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The DoS/DDoS function is active. Blinking It will blink while deleting an attack. The profile of CSM (Content Security Management) for IM/P2P application is active. (It is enabled from Objects Setting >>...

  • Page 9: For Vigor2930Vs

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The DoS/DDoS function is active. Blinking It will blink while deleting an attack. The profile of CSM (Content Security Management) for IM/P2P application is active. (It is enabled from Objects Setting >>...
  • Page 10 (Green) The port is disconnected. Blinking The data is transmitting. Right LED The port is connected with 100Mbps. (Green) The port is disconnected with 10Mbps. Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds.

  • Page 11: For Vigor2930Vsn

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. The DoS/DDoS function is active. Blinking It will blink while deleting an attack. The profile of CSM (Content Security Management) for IM/P2P application is active. (It is enabled from Objects Setting >>...
  • Page 12 Blinking The data is transmitting. Right LED The port is connected with 100Mbps. (Green) The port is disconnected with 10Mbps. Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds.

  • Page 13: Package Content

    Quick Start Guide RJ-45 Cable (Ethernet) RJ-45 to RJ-45 Cable for S models ISDN Phone Adapter The type of the power adapter depends on the country that the router will be installed: UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter * The maximum power consumption is 17-23 Watt.
  • Page 14 This page is left blank.

  • Page 15: Installing Your Router

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45).

  • Page 16: Isdn Phone Adapter Installation

    Such information is provided for Vigor2930 S models (e.g., Vigor2930VS). ISDN S0 1 is always fixed to connect ISDN phone. However, ISDN S0 2 is configurable as NT (ISDN S0 intern) or TE (ISDN S0 extern) mode. When the user configures ISDN S0 2 as NT mode in VoIP>>...

  • Page 17: Configuring Web

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 18 Enter the login password on the field of New Password and retype it on the field of Retype New Password. Then click Next to continue. On the next page as shown below, please select the WAN interface that you use. Choose Auto negotiation as the physical type for your router.
  • Page 19 PPPoE: if you click PPPoE or PPPoA as the protocol, please manually enter the Username/Password provided by your ISP. Then click Next. PPTP: if you click PPTP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step. Static IP: if you click Static IP, you will get the following page.
  • Page 20 DHCP: if you click DHCP, you will get the following page. Simply click Next to continue. Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router.

  • Page 21: Wireless Configuration

    For the user of Vigor2930/2910VS, please skip this section. For operating Vigor2930n/Vn/VSn well, it is necessary for you to set the wireless LAN settings for using wireless function. Please read the following section carefully for configuring the settings for this router. (The default value of Frequency Domain was set by factory depends on the reselling region.) In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an...

  • Page 22: Security Settings

    At present, the router can connect to IEEE802.11b, IEEE802.11g and IEEE802.11n stations simultaneously. Simply choose Mix (11b+11g+11n) mode. Type in the name of the SSID. The default name for SSID is default. We suggest you change it to a particular name for your necessity. It is used to name the wireless LAN for this router, and it must SSID (service set have the same content in client PC/notebook wireless card(s).
  • Page 23 router, please select any one of the encryption mode here. WEP Only Accepts only WEP clients and the encryption key should be entered in WEP Key. WEP/802.1x Only Accepts only WEP clients and the encryption key is obtained dynamically from RADIUS server with 802.1X protocol. WPA/PSK Only Accepts only WPA clients and the encryption key should be entered in PSK.
  • Page 24 This page is left blank.

  • Page 25: Trouble Shooting

    This section will guide you to solve abnormal situations if you cannot access into the Internet after installing the router and finishing the web configuration. Please follow sections below to check your basic installation status stage by stage. Checking if the hardware status is OK or not. Checking if the network connection settings on your computer are OK or not.
  • Page 26 The example is based on Windows XP. As to the examples for other operation systems, please refer to the similar steps or find support notes in www.draytek.com. Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties.
  • Page 27 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4.

  • Page 28: Pinging The Router From Your Computer

    The default gateway IP address of the router is 192.168.1.1. For some reason, you might need to use “ping” command to check the link status of the router. The most important thing is that the computer will receive a reply from 192.168.1.1. If not, please check the IP address of your computer.

  • Page 29: Checking If The Isp Settings Are Ok Or Not

    Open WAN >> Internet Access page and then check whether the ISP settings are set correctly. Click Details Page of WAN1/WAN2 to review the settings that you configured previously. Check if the Enable option is selected. Check if Username and Password are entered with correct values that you got from your ISP.
  • Page 30 Check if the Enable option for Broadband Access is selected. Check if WAN IP Network Settings is set appropriately. Check if IP Address, Subnet Mask and Gateway are set correctly (must identify with the values from your ISP) if you choose Specify an IP address. Check if the Enable option for PPTP Link is selected.

  • Page 31: Backing To Factory Default Setting If Necessary

    Sometimes, a wrong connection can be improved by returning to the default settings. Try to reset the router by software or hardware. Warning: After pressing factory default setting, you will loose all settings you did before. Make sure you have recorded all useful settings before you pressing.

  • Page 32: Contacting Your Dealer

    If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
