Machine description – quick overview
Machine control – Operating elements
Machine control – Operating elements
4.3
Item Symbol
1
2
3
4
5
6
20
Description 0
Button, welding process
MIG/MAG welding
MMA welding
Air arc gouging
Display, left
Welding current, wire feed speed
Status displays
"Welding current display" signal light
"Wire feed speed display" signal light
Display, welding process
J1 MIG/MAG welding
J2 MMA welding
J3 Gouging
Rotary dial, welding parameters
MIG/MAG: setting dynamics/choke effect
MMA: setting MMA welding current
Button, select operating mode
No function.
Setting is made on the wire feed unit.

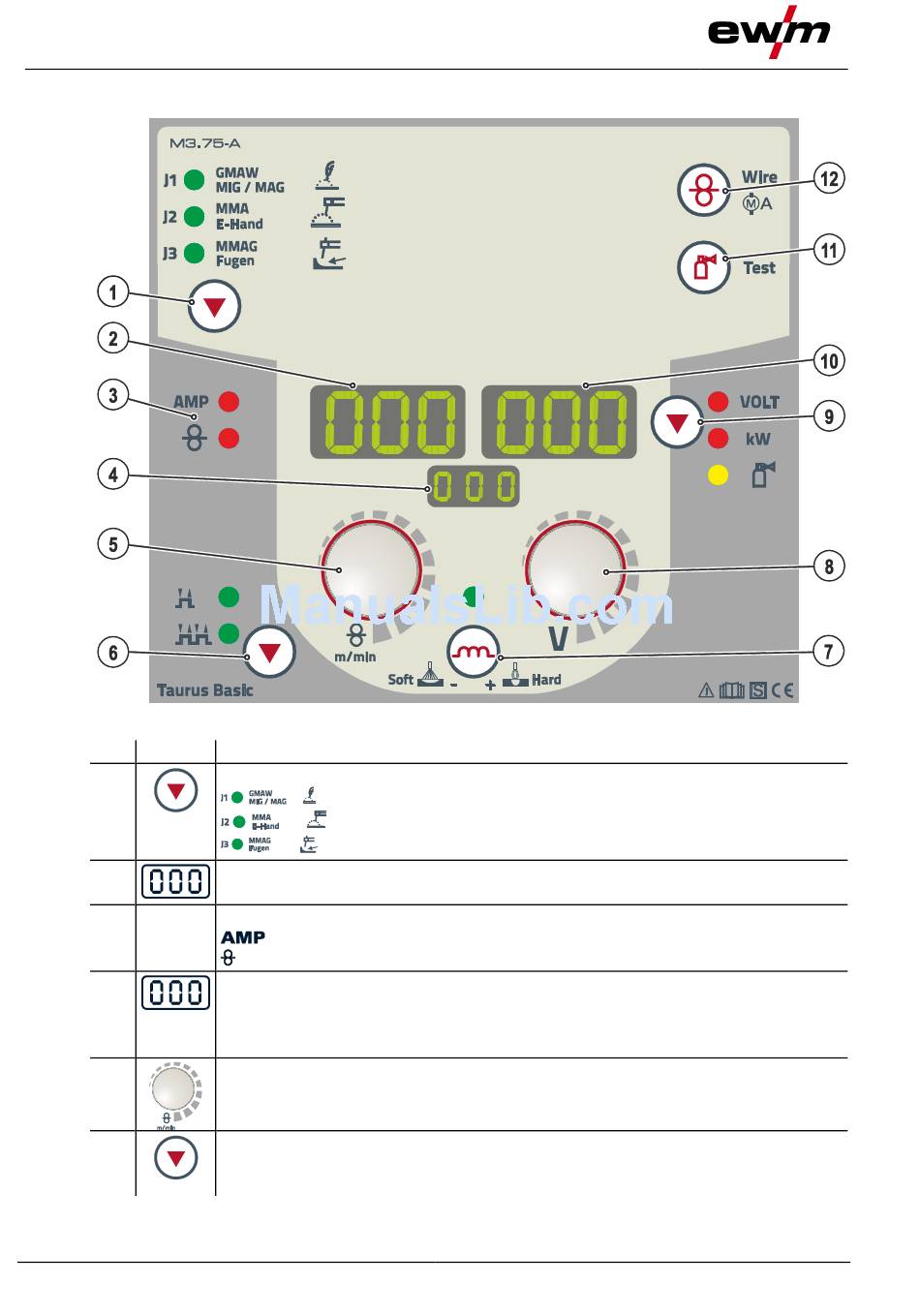

Figure 4-3
