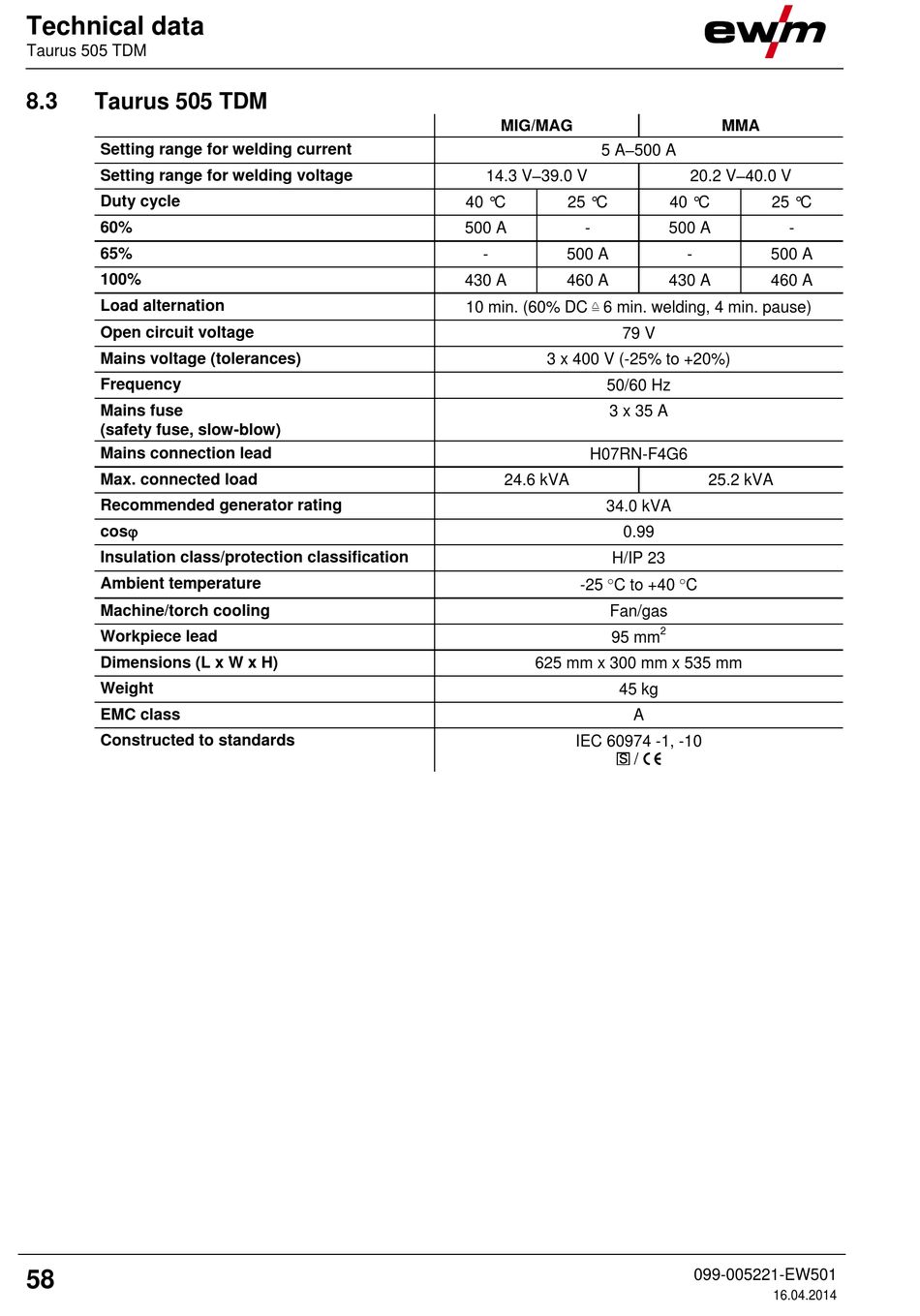

Technical data

Taurus 505 TDM

8.3 Taurus 505 TDM
Setting range for welding current
Setting range for welding voltage
Duty cycle
60%
65%
100%
Load alternation
Open circuit voltage
Mains voltage (tolerances)
Frequency
Mains fuse
(safety fuse, slow-blow)
Mains connection lead
Max. connected load
Recommended generator rating
cos
Insulation class/protection classification
Ambient temperature
Machine/torch cooling
Workpiece lead
Dimensions (L x W x H)
Weight
EMC class
Constructed to standards
58
MIG/MAG
5 A–500 A
14.3 V–39.0 V
40 °C 25 °C
500 A -
- 500 A
430 A 460 A

10 min. (60% DC 6 min. welding, 4 min. pause)
79 V
3 x 400 V (-25% to +20%)
50/60 Hz
3 x 35 A
H07RN-F4G6
24.6 kVA
34.0 kVA
0.99
H/IP 23
-25 C to +40 C
Fan/gas
95 mm
625 mm x 300 mm x 535 mm
45 kg
A
IEC 60974 -1, -10
/
MMA
20.2 V–40.0 V
40 °C 25 °C
500 A -
- 500 A
430 A 460 A
25.2 kVA
2
099-005221-EW501
16.04.2014
