UM1057
2.18
Camera module
A 1.3 megapixel camera module is connected to DCMI bus of STM32F207IGH6 and shares
the same I/Os with the motor control connector. SB16 must be kept open for camera module
application.
Table 13.
Jumper
Note:
1
When the camera demo loaded in Flash is executed, some green pixels may appear in high
contrast zones, depending on the image captured.
2

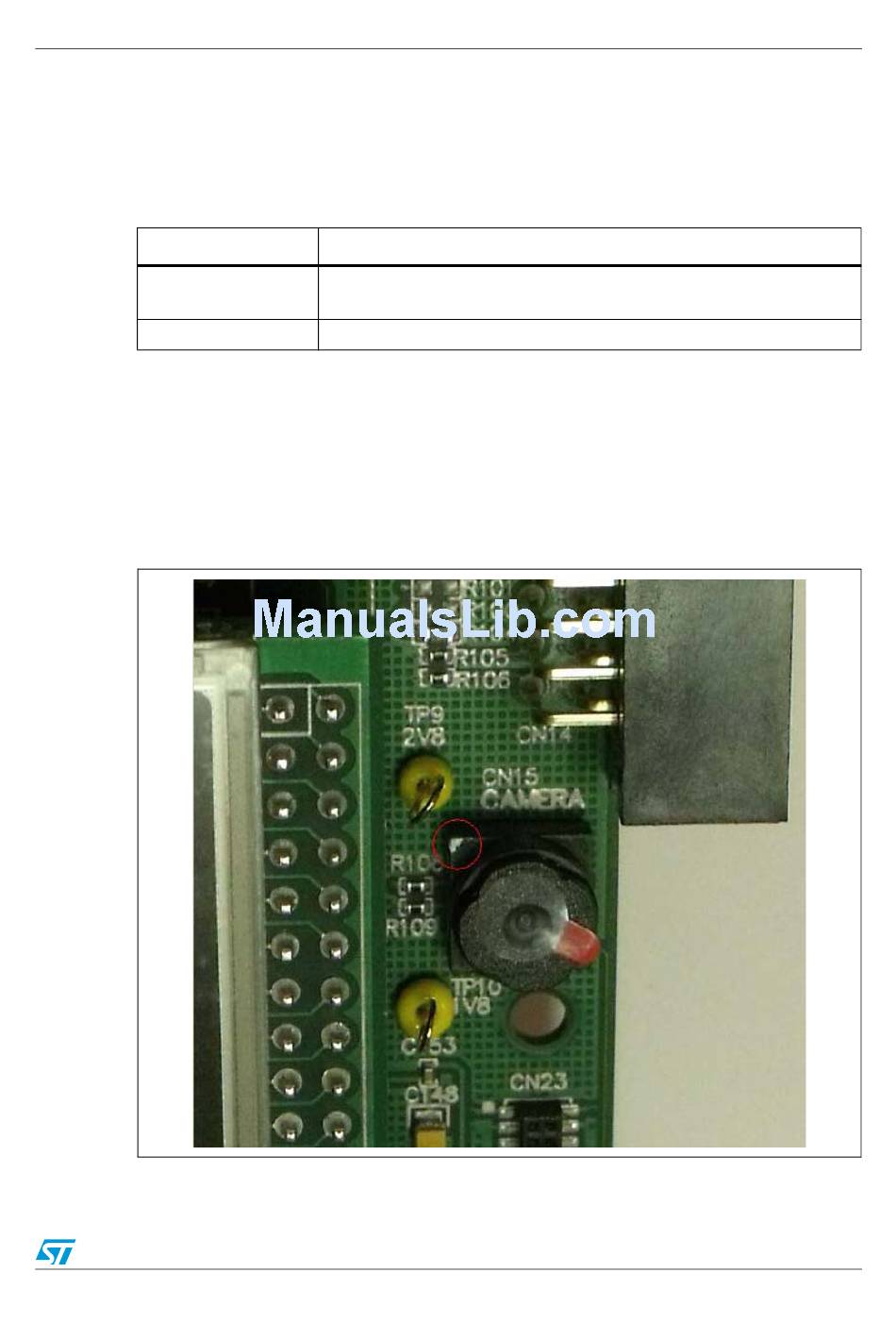

The camera is not firmly restricted on its connector (CN15). It is possible that during
shipment the camera could be unplugged. In such case you need to plug it into the right
position as shown on the picture below (pin 1 dot on top left corner of the socket).
It is not recommended to remove it in order to avoid false contact later.
Figure 4.
The camera extension connector CN23 is available on the boards to connect the ST camera
plug-in board.
Camera module related jumpers
To set power down mode for the camera module, JP26 is fitted.
JP26
Default setting: Not Fitted
SB16
Description of SB16 is in
Pin 1 camera plug
Doc ID 018499 Rev 2
Hardware layout and configuration
Description
Section 2.9: Motor
control.
17/64
