DASP-52282 Card User's Manual

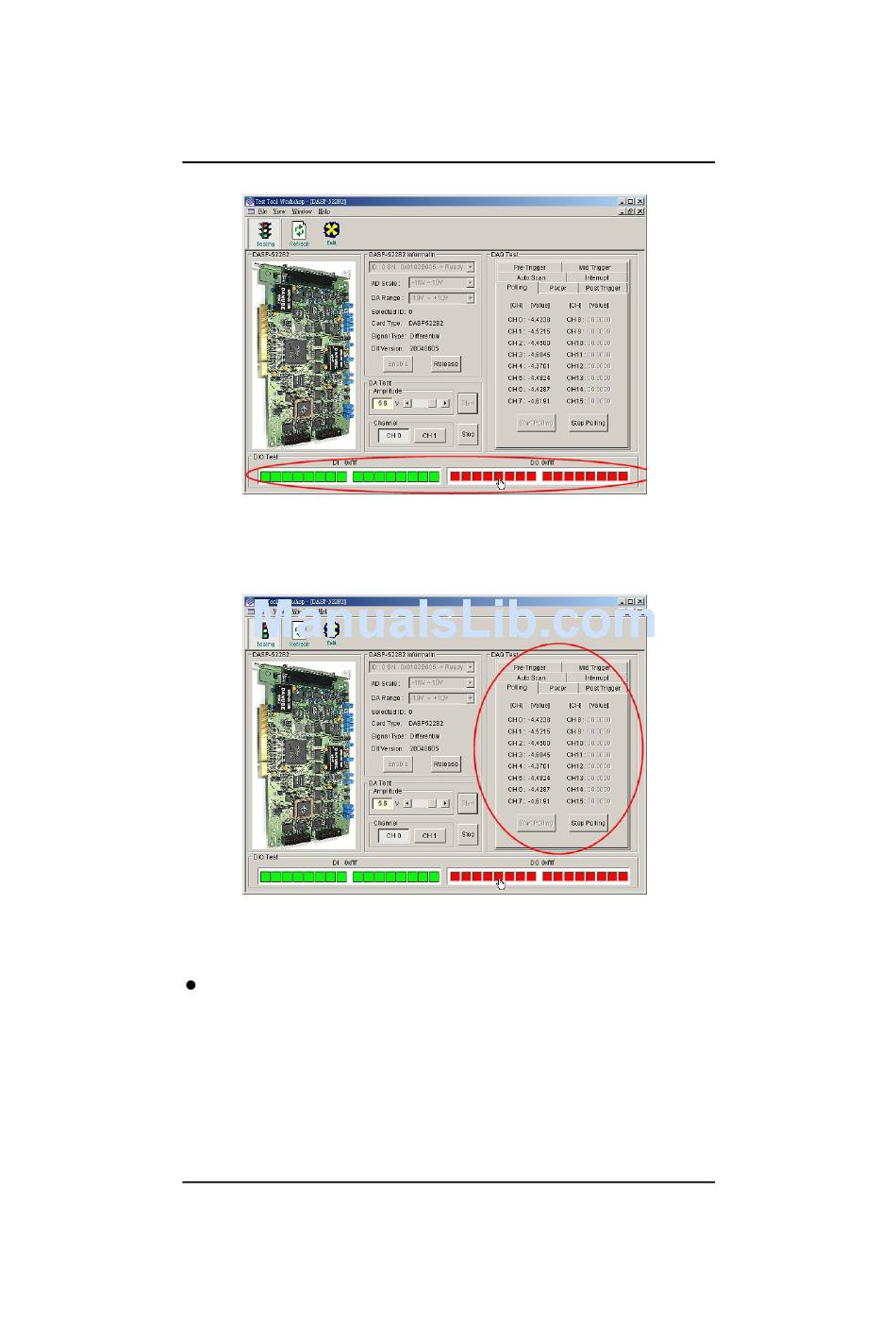

Perform DIO Test of DASP-52282, the DO of DASP-52282 Can
be Routed to DI and Test Them by Commanded the DO Port
Value and Read Back the DI Port Value. (DIO Wiring Refer to
Section 2.4 )
Perform the Analog Input Test of DASP-52282. A Reference
Analog Input Signal can be Connected to AI Pins of Terminal
Box of DASP-52282, Press ' Get' Button to Read Back AI Value.
Press 'Stop' button to stop AD converting.
Before exiting ToolWorkShop, press 'Release'
button to release DASP-52282 library.
