DASP-52282 Card User's Manual
2.2 Signal Connections
2.2.1
Signal Connection Descriptions

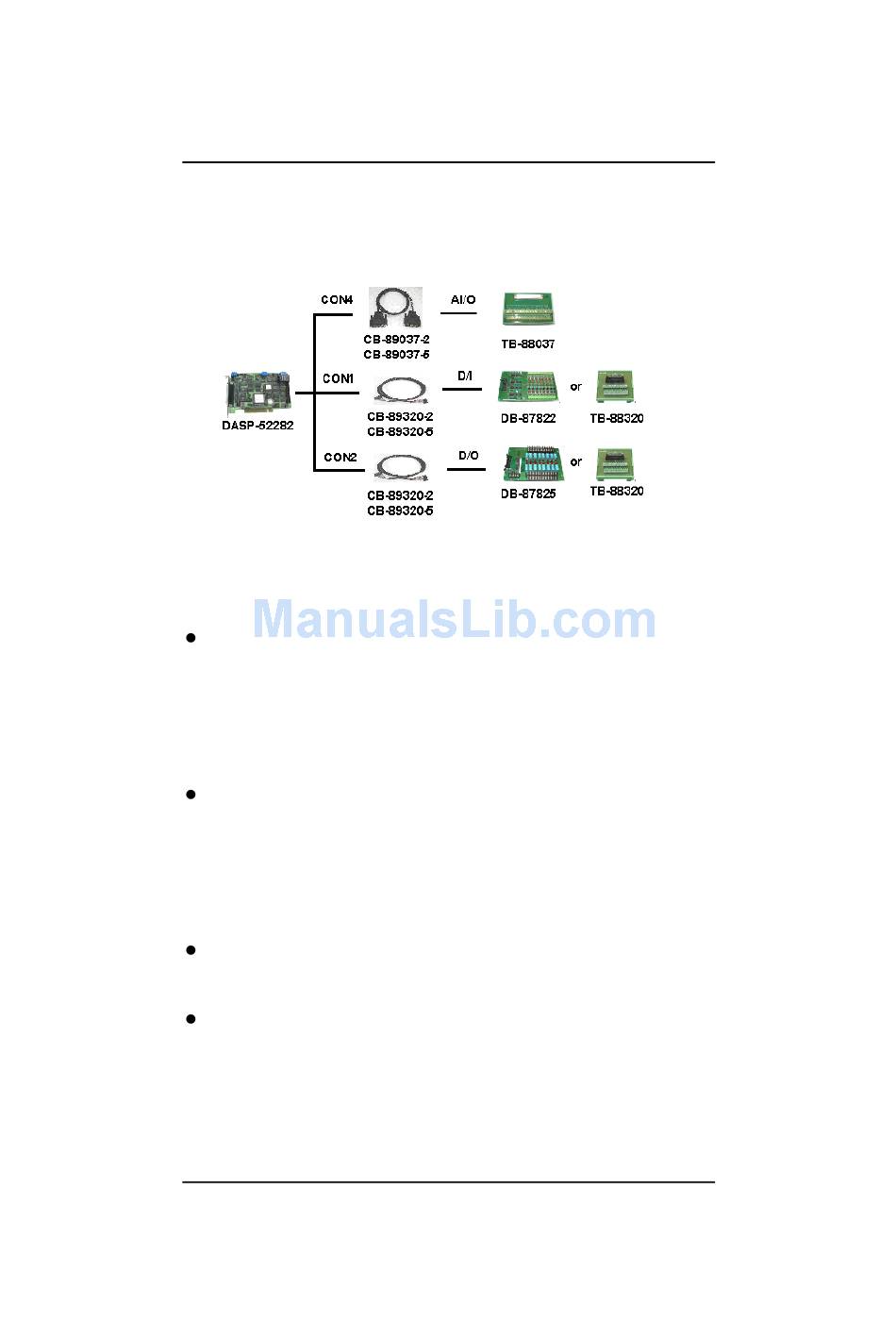

Signal Connections for DASP-52282
Referring to above figure, the accessories of the DASP-52282
are depicted and described as below.
CON1:
The I/O connector CON1 on the DASP-52282 is a
20-pin flat connector for digital input signals. CON1
enables you to connect to accessories, either the
daughter board DB-87822 or the terminal block
TB-88320,
with
CB-89320-5.
CON2:
The I/O connector CON2 on the DASP-52282 is a
20-pin flat connector for digital output signals. CON2
enables you to connect to accessories, either the
daughter board DB-87825 or the terminal block
TB-88320,
with
CB-89320-5.
CON3:
The I/O connector CON3 on the DASP-52282 is a
JTAG test signal for internal usage only.
CON4:
The I/O connector CON4 on the DASP-52282 is a
37-pin D-sub connector for analog input and output
signals. CON4 enables you to connect to accessory
TB-88037 with the shielded cable CB-89037-2 or
CB-89037-5.
8
the
flat
cable
CB-89320-2
the
flat
cable
CB-89320-2
Hardware Installation
or
or
