Video tab
Click the tab to open the
Video
and user preset management options.

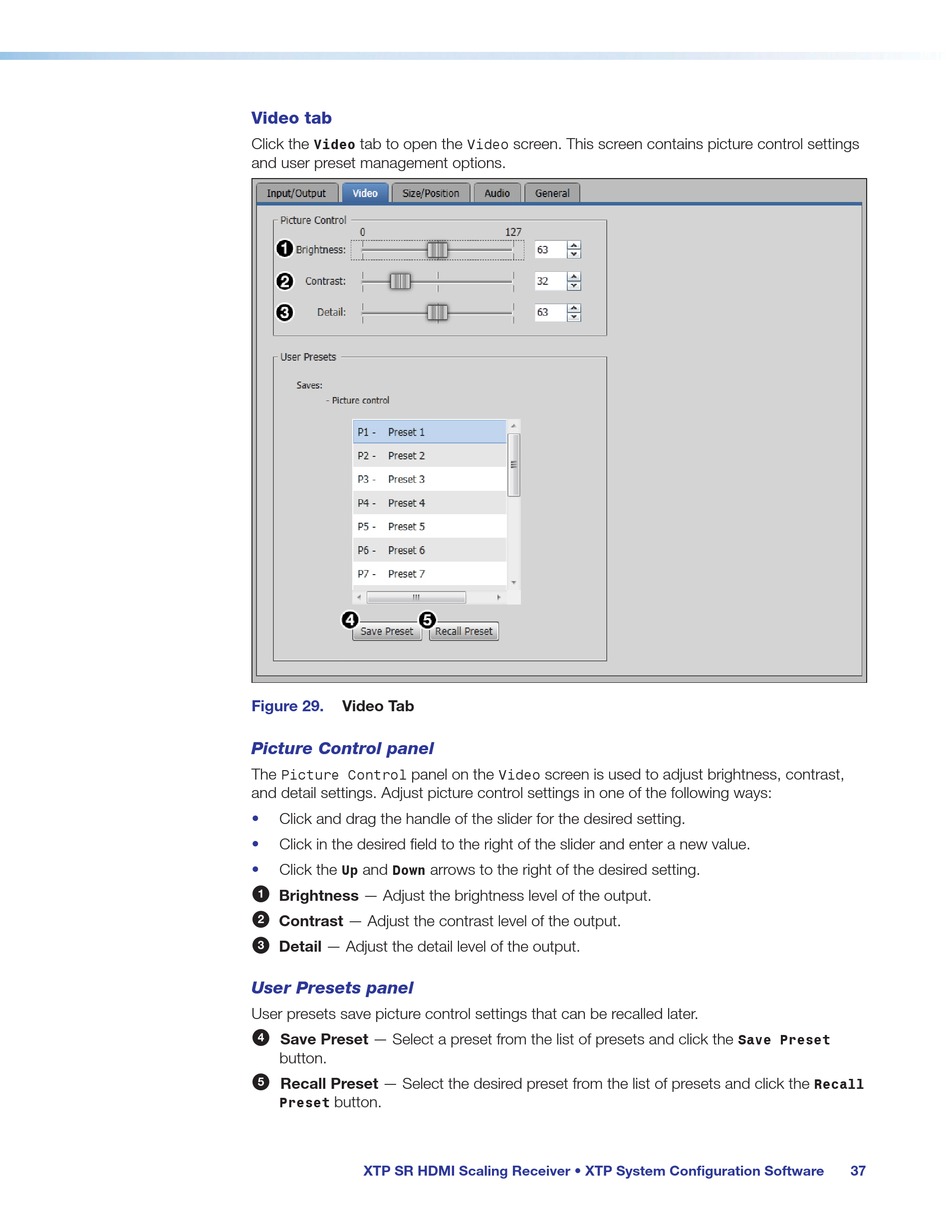

Figure 29. Video Tab
Picture Control panel
The panel on the
Picture Control
and detail settings. Adjust picture control settings in one of the following ways:
• Click and drag the handle of the slider for the desired setting.
• Click in the desired field to the right of the slider and enter a new value.
• Click the and arrows to the right of the desired setting.
Up Down
1
Brightness — Adjust the brightness level of the output.
2 Contrast — Adjust the contrast level of the output.
3 Detail — Adjust the detail level of the output.
User Presets panel
User presets save picture control settings that can be recalled later.
4
Save Preset — Select a preset from the list of presets and click the
button.
5 Recall Preset — Select the desired preset from the list of presets and click the
button.
Preset
