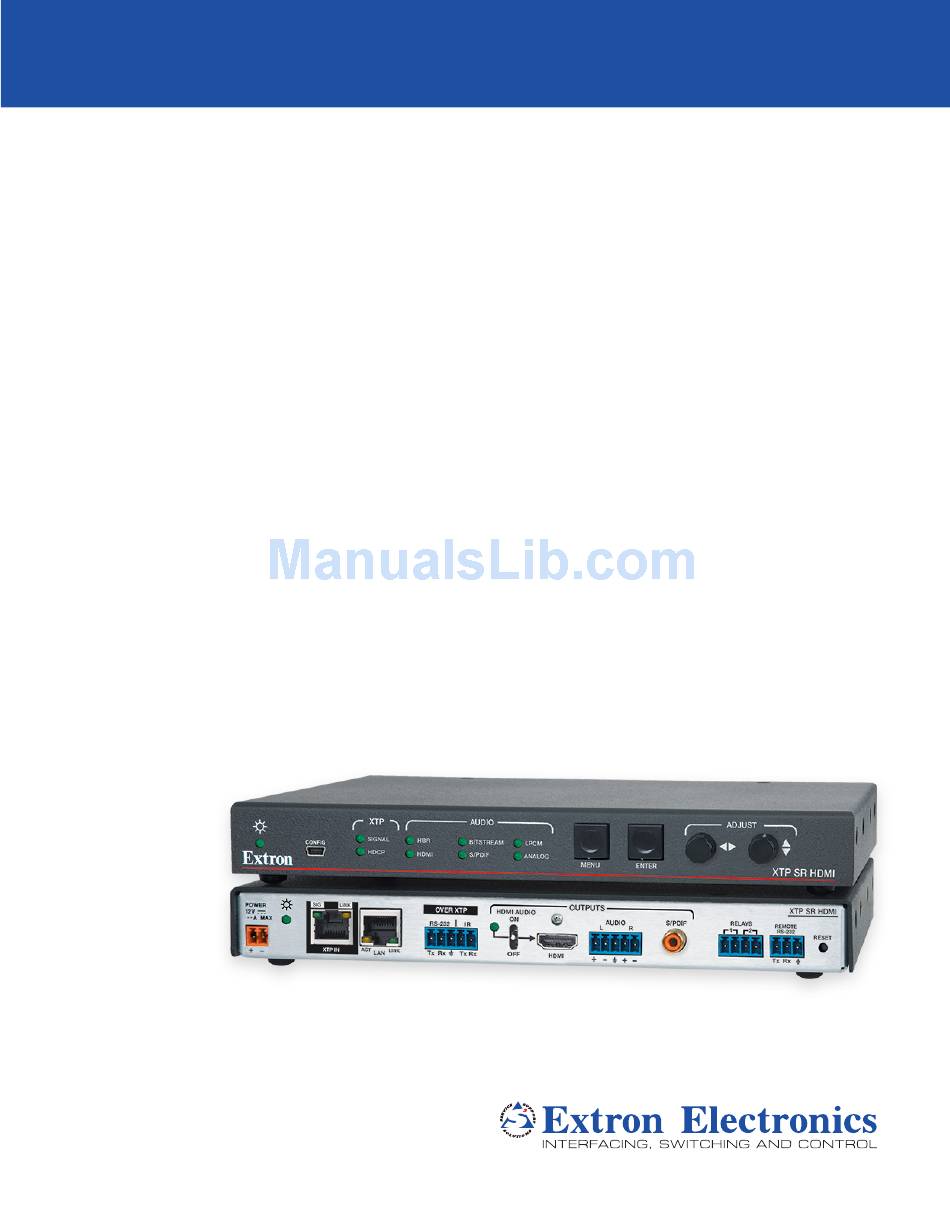

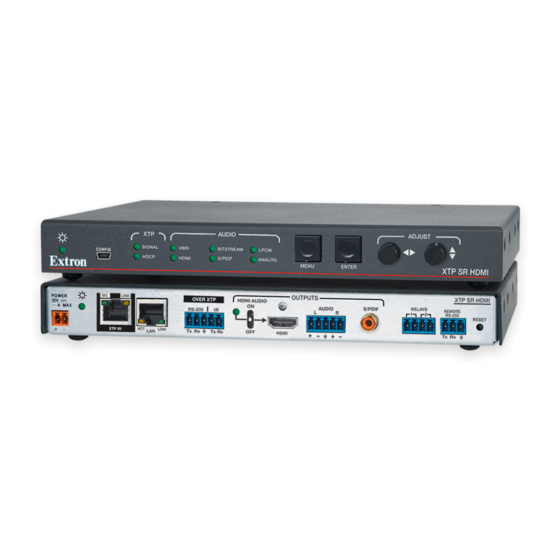

- Page 1 User Guide XTP Extenders XTP SR HDMI XTP HDMI Scaling Receiver 68-2007-01 Rev. A 09 13...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на... - Page 3 Compliance Guide” on the Extron website. Copyright © 2013 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks , registered service marks...
- Page 4 Conventions Used in this Guide Notifications The following notifications are used in this guide: A warning indicates a situation that has the potential to result in death or WARNING: severe injury. ATTENTION: Attention indicates a situation that may damage or destroy the product or associated equipment.
-
Page 5: Table Of Contents
SIS Configuration and Control ............ 1 ..... 20 About This Guide ..........1 Host Device Connection ........20 About the XTP SR HDMI Scaling Receiver ..1 SIS Programming Guide ........20 Key Features ............2 Host-to-Device and Device-to-Host Communication ........... 20 Error Responses ........... - Page 6 XTP SR HDMI Scaling Receiver • Contents...
-
Page 7: Introduction
About This Guide This guide provides installation, operation, control, and reference information for the XTP SR HDMI scaling receiver. In this guide, the terms "scaling receiver" and "XTP SR HDMI" are used interchangeably to refer to the XTP SR HDMI scaling receiver. -
Page 8: Key Features
The following diagram shows one way the XTP SR HDMI can be integrated in an XTP point-to-point application. The scaling receiver can also be used with an XTP matrix switcher (see the XTP matrix switcher user guide for more details on matrix applications). - Page 9 - power supply excluded. Above-the-ceiling placement conceals the scaling receiver to prevent theft, and is convenient for installing equipment when space inside the room is limited. XTP SR HDMI Scaling Receiver • Introduction...
-
Page 10: Installation
This section contains installation procedures for the XTP SR HDMI and wiring details. Topics in this section include: • Cabling • Connection and Wiring Details The XTP SR HDMI can be placed on a tabletop or mounted in a rack or under a desk (see Mounting on page 41). Cabling LINK POWER... - Page 11 Do not exceed 24 V at 1.0 A for each port. Remote RS-232 connector — Connect a host device to the 3.5 mm, 3-pole captive screw connector for serial control of the scaling receiver. XTP SR HDMI Scaling Receiver • Installation...
-
Page 12: Connection And Wiring Details
Power connector — Connect the external 12 V, 1.0 A power supply to the 2-pole captive screw connector. The Power LED lights to indicate the device is receiving power. NOTE: The XTP SR HDMI can also be powered remotely (see Power Connection on page 9). -
Page 13: Tp Cable Termination And Recommendations
Figure 5. TP Cable Termination Connector Supported cables The XTP SR HDMI is compatible with CAT 5e, 6, 6a, and 7 shielded twisted pair (F/UTP, SF/ UTP, and S/FTP) and unshielded twisted pair (U/UTP) cable. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products. -
Page 14: Rs-232 And Ir Over Xtp Communication
The length of exposed wires is critical. The ideal length is 3/16 inch (5 mm). • Longer bare wires can short together. • Shorter wires are not as secure in the connectors and could be pulled out. XTP SR HDMI Scaling Receiver • Installation... -
Page 15: Power Connection
Figure 7. Power Wiring The XTP SR HDMI can be connected to a local power supply (see figure 7 above). WARNING: The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring. - Page 16 Remote power The XTP SR HDMI can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.
-
Page 17: Operation
Operation This section contains information for front panel operation and configuration of the XTP SR HDMI and configuration through the On-Screen Display (OSD) menu. Topics in this section include: • Front Panel Features and Indicators • Rear Panel HDMI Audio Switch •... -
Page 18: Rear Panel Hdmi Audio Switch
Rear Panel HDMI Audio Switch The XTP SR HDMI has an HDMI audio switch that mutes or unmutes AUDIO the embedded audio on the HDMI output connector. The LED next to the switch lights when HDMI audio is enabled. Move and hold the rear panel HDMI audio switch up for about 1... -
Page 19: Menu Overview
Press the Enter button to accept the new value. Press the Menu button to cancel any pending changes. To exit the OSD menu: While in the list of submenus, press the Menu button to exit the OSD menu. XTP SR HDMI Scaling Receiver • Operation... -
Page 20: Auto-Image Submenu
The Auto-Image submenu allows the execution of a one-time Auto-Image. Figure 10. Auto-Image Submenu Auto-Image — Press the Enter button to execute a one-time Auto-Image. This Auto-Image automatically resizes and centers the input to fill the output screen. XTP SR HDMI Scaling Receiver • Operation... -
Page 21: Picture Controls Submenu
Brightness and contrast — Rotate the Horizontal Adjustment knob to adjust the brightness (Bright) of the image. Rotate the Vertical Adjustment knob to adjust the contrast (Cont) of the image. Detail — Rotate the adjustment knobs to adjust the detail of the image. XTP SR HDMI Scaling Receiver • Operation... -
Page 22: User Presets Submenu
Recall — Rotate the adjustment knobs to select a preset to recall saved picture control settings. Save — Rotate the adjustment knobs to select a preset to store the current picture control settings. XTP SR HDMI Scaling Receiver • Operation... -
Page 23: Input Configuration Submenu
The Output Configuration submenu is used to configure of the output resolution and refresh rate. Color space, color bit depth, and HDMI data settings are set to and not Auto configurable. Figure 14. Output Configuration Submenu XTP SR HDMI Scaling Receiver • Operation... - Page 24 Color bit depth — Sets the color bit depth of the input signal. This is not configurable. HDMI data— Reads the EDID of the display and determines if the output is capable of receiving ancillary data. This is not configurable. XTP SR HDMI Scaling Receiver • Operation...
-
Page 25: Advanced Configuration Submenu
Enter buttons simultaneously for about 2 seconds or until the Power LED blinks (see Executive mode SIS commands on page 27 or XTP System Configuration Software on page 29 for remote enabling or disabling of executive mode). XTP SR HDMI Scaling Receiver • Operation... -
Page 26: Sis Configuration And Control
Use a computer running the Extron DataViewer utility or HyperTerminal, or use a control system to make serial control of the receiver possible. To connect directly to an XTP SR HDMI, connect the computer to the XTP SR HDMI through the front panel USB Config port (see on page 11) or the rear panel Remote RS-232 connector (see on page 4). -
Page 27: Using Command And Response Tables For Sis Commands
ASCII to Hexadecimal Conversion Figure 17. Symbol definitions = Carriage return with line feed or ¦ = Carriage return (no line feed) • = Space character or W = Escape key XTP SR HDMI Scaling Receiver • SIS Configuration and Control... - Page 28 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz 75 Hz 640x480 800x600 852x480 1024x768 1024x852 1024x1024 1280x768 1280x800 1280x1024 1360x765 1360x768 1365x768 1366x768 1365x1024 1440x900 1400x1050 1680x1050 1600x1200 1920x1200 480p 576p 720p 1080i 1080p 2048x1080 * = default XTP SR HDMI Scaling Receiver • SIS Configuration and Control...
-
Page 29: Command And Response Tables For Sis Commands
View contrast level View the contrast level. X&] CONT Cont NOTES: = Video mute = unmute (default); = mute video; = mute video and sync X& = Picture adjustment = default) XTP SR HDMI Scaling Receiver • SIS Configuration and Control... - Page 30 View the image height. VSIZ Vsiz NOTES: X& = Picture adjustment = default) = Horizontal position or size = default) 65535 32768 = Vertical position or size = default) 65535 32768 XTP SR HDMI Scaling Receiver • SIS Configuration and Control...
-
Page 31: Output Configurations
= crosshatch; = colorbars; = greyscale = Output scaler rate and refresh rate Output scaler rate and refresh rate on page 22 for a table of available resolutions and refresh rates. XTP SR HDMI Scaling Receiver • SIS Configuration and Control... -
Page 32: Audio Configurations
Save preset X1*] Save the current settings to user preset NOTES: = Audio mute = unmute; = HDMI; = analog; = all X1& = Volume = default) = User preset XTP SR HDMI Scaling Receiver • SIS Configuration and Control... -
Page 33: Advanced Configuration
View relay status. NOTES: = Enable or disable = disabled or off; = enabled or on = Relay = relay 1; = relay 2 = Pulse time (in 16 ms steps) 65535 XTP SR HDMI Scaling Receiver • SIS Configuration and Control... -
Page 34: Reset
= no sink or source device detected; = sink or source detected with no HDCP encryption = sink or source detected with HDCP encryption = Input signal status = no input; = input detected XTP SR HDMI Scaling Receiver • SIS Configuration and Control... -
Page 35: Xtp System Configuration Software
To download the software from the website: Figure 18. Extron Website Download Page On the Extron website, click the tab. Download From the left sidebar, click the link. Software Navigate to XTP System Configuration. XTP SR HDMI Scaling Receiver • XTP System Configuration Software... -
Page 36: Using The Xtp System Configuration Software
Program Files folder, and places four icons into a group folder named “Extron Electronics\XTP System Configuration.” Using the XTP System Configuration Software The XTP SR HDMI can be controlled directly from the front panel Config port or remotely from a connected XTP matrix switcher. Connections When opening the XTP System Configuration Software, the Connections screen opens first. -
Page 37: Top Menu
Disconnect device is connected. Exit This option disconnects the receiver from the software and closes the application. From the menu, select . The application closes. File Exit XTP SR HDMI Scaling Receiver • XTP System Configuration Software... -
Page 38: Update Firmware
Select file from computer connected host device. Select the desired firmware file and click the button after the firmware finishes Close updating. XTP SR HDMI Scaling Receiver • XTP System Configuration Software... - Page 39 This option opens the XTP System Configuration Software help file in a web browser. From the menu, select Help Help Extron Website This option opens the Extron website in a web browser. From the menu, select Help Extron Website XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
-
Page 40: Device Settings
Audio Mute output. Audio and video mute — Click the button to mute or unmute AV Mute audio and video output. NOTE: The mute buttons turn red when they are enabled. XTP SR HDMI Scaling Receiver • XTP System Configuration Software... - Page 41 Pulse — In the desired relay panel, select a length of time from the field. Click the Duration button to pulse the relay for the time specified in the field. Pulse Duration XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
- Page 42 Save preset — Select a preset from the list of presets and click the button. Save Preset Recall preset — Select the desired preset from the list of presets and click the Recall button. Preset XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
- Page 43 Enter a value or click the arrows in the Down Horizontal Size Vertical fields. Size Enter a value or click the arrows in the Down Horizontal Position fields. Vertical Position XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
-
Page 44: Audio Tab
Volume slider — Click and drag the handle of the slider, enter a value in the Volume field, or click the arrows to adjust analog audio output volume. Volume Down XTP SR HDMI Scaling Receiver • XTP System Configuration Software... -
Page 45: Factory Reset
Click the button to reset the receiver to factory settings (except for firmware). Factory Reset NOTE: This is the same as the SIS command (see Reset SIS commands ZXXX page 28). XTP SR HDMI Scaling Receiver • XTP System Configuration Software... - Page 46 S/PDIF Audio — Displays the mute status of the audio on the S/PDIF output. Analog Audio — Displays the mute status of the analog audio outout. Analog Audio Volume — Displays the analog audio output volume level. XTP SR HDMI Scaling Receiver • XTP System Configuration Software...
-
Page 47: Reference Information
Updating Firmware with Firmware Loader Mounting The XTP SR HDMI can be placed on a tabletop or mounted in a rack or underneath a desk. Tabletop Mounting Attach the provided rubber feet to the bottom four corners of the enclosure. -
Page 48: Updating Firmware With Firmware Loader
Updating Firmware with Firmware Loader To upload and update firmware for the XTP SR HDMI, download the new firmware to a connected computer and upload the firmware with the Extron Firmware Loader utility. Downloading Extron Firmware Loader Firmware Loader on the Extron Website Figure 32. -
Page 49: Downloading Firmware
Follow the instructions on the Installation Wizard screens to install the new firmware on the computer. A Release Notes file is provided for information on what has changed in the new firmware version and instructions for updating the firmware. XTP SR HDMI Scaling Receiver • Reference Information... -
Page 50: Installing Firmware
Firmware Loader main window. Click to start the upload process. Begin Close Firmware Loader when the field shows , the Remaining Time 00.00.00 column shows , and the field shows Progress 100% Status completed XTP SR HDMI Scaling Receiver • Reference Information... - Page 51 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
