User Presets Submenu - Extron electronics XTP SR HDMI User Manual

User Presets Submenu

The
User Presets
input. User presets can be saved and recalled later on another input, allowing them to also
be used as aspect ratio or discrete size and center shortcuts. There are 8 user preset slots
available.

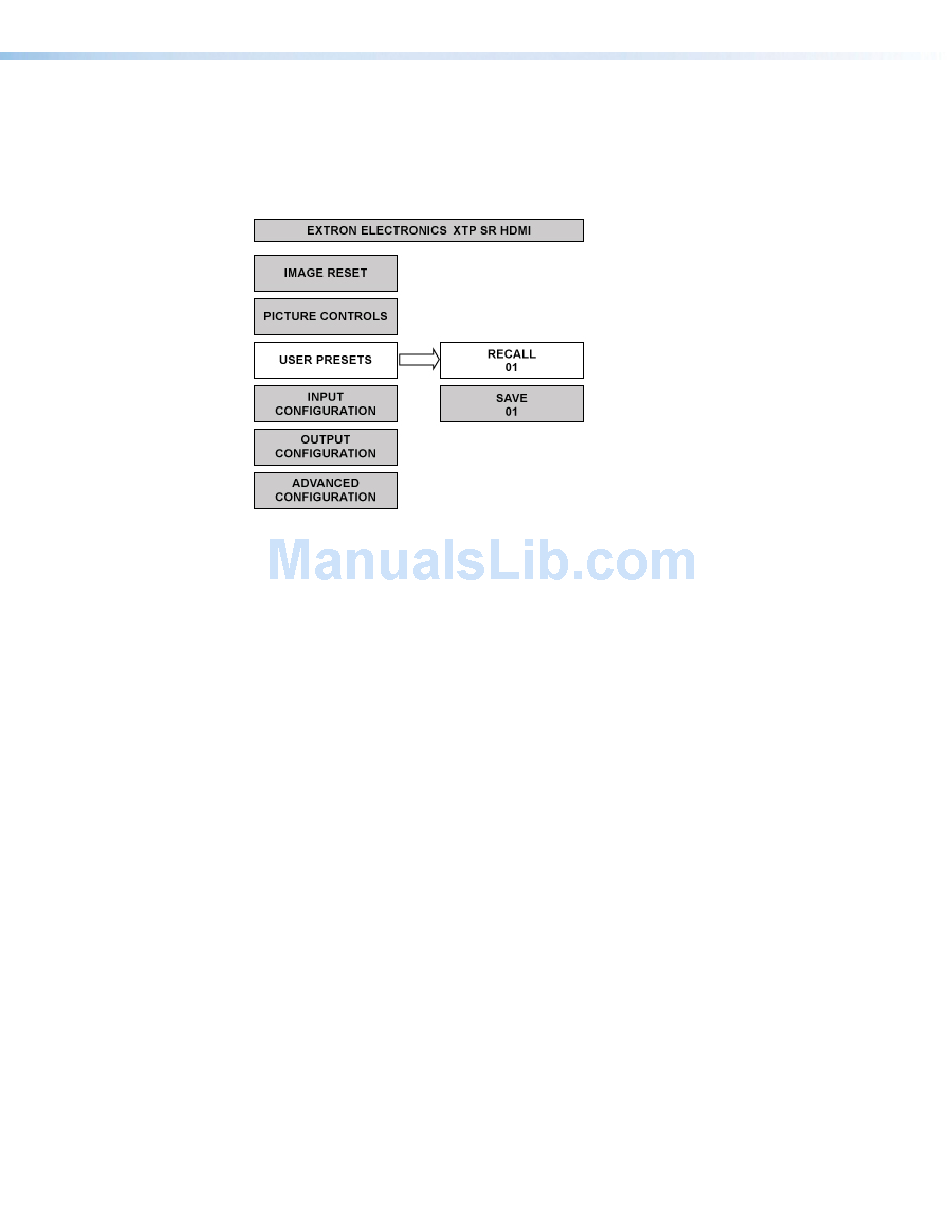

Figure 12.
User presets save the following settings:
• Brightness and contrast
• Detail
• Image size and position
Recall — Rotate the adjustment knobs to select a preset to recall.
Save — Rotate the adjustment knobs to select a preset to store the current picture control
settings.
submenu saves the current picture control settings for the selected
User Presets Submenu
XTP SR HDMI Scaling Receiver • Operation 16
