Remote power
The XTP SR HDMI can be powered remotely through an XTP Power Injector or through an
XTP matrix switcher.
ATTENTION:
• XTP remote power is intended for indoor use only. No part of the network that uses
XTP remote power should be routed outdoors.
•
XTP à distance est destiné à une utilisation en intérieur seulement. Aucune partie
du réseau qui utilise l'alimentation XTP à distance ne peut être routée en extérieur.
Power injector
To power the XTP SR HDMI remotely with an XTP Power Injector, power one device locally
(see Local power on page 10) and connect an XTP Power Injector to the XTP cable
run along the XTP ports (see the XTP Power Injector User Guide for more installation
information).
POWER INPUTS
AUDIO
12V
0.7A MAX
XTP T HDMI
HDMI LOOP THRU
Extron
XTP T HDMI
XTP Transmitter
12V Local Power
Supply

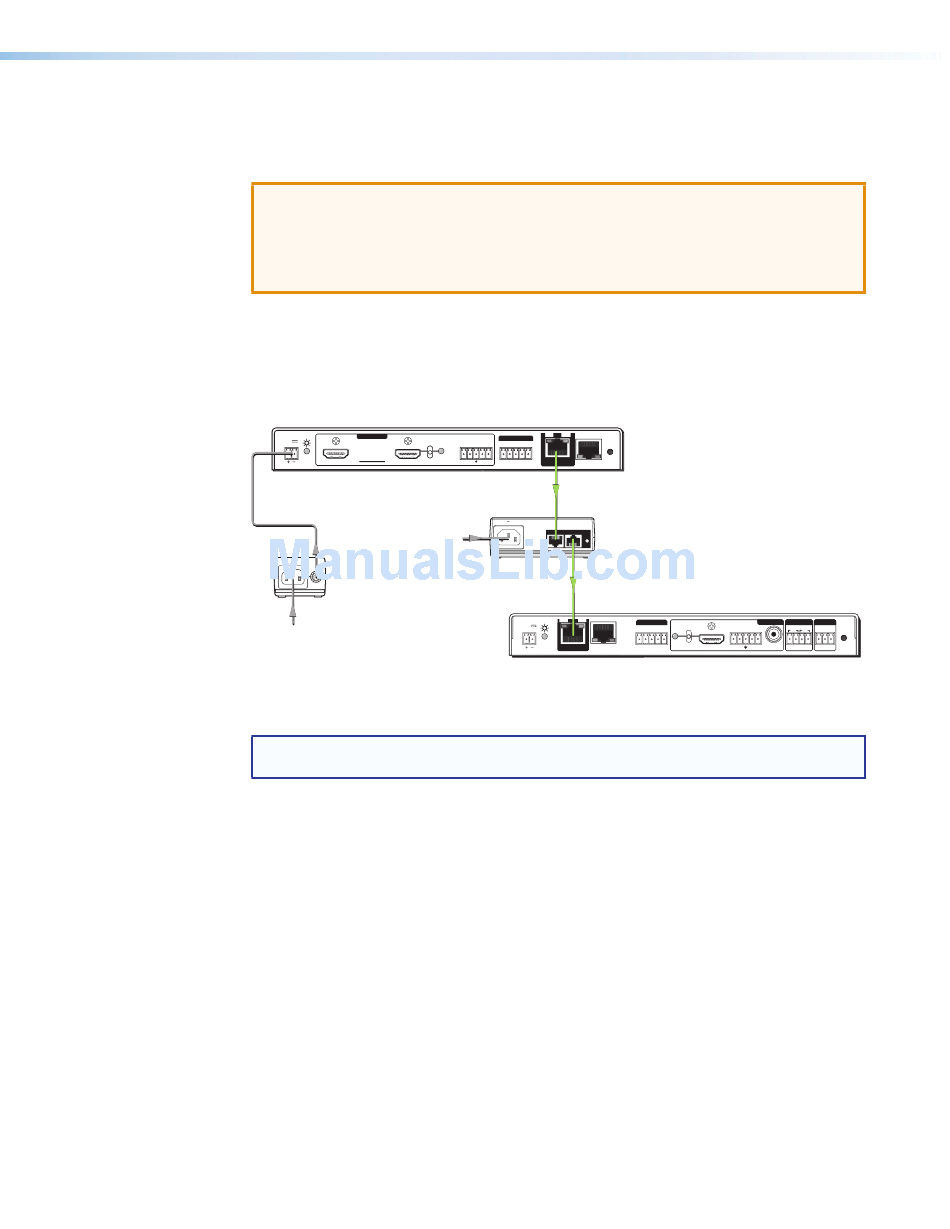

Figure 8. Typical Point-to-Point Application with Remote Power
NOTE: The power injector provides remote power up to 330 feet with a shielded twisted
pair cable with 24 AWG wire.
Direct power from an XTP matrix switcher
XTP matrix switchers have a fixed amount of power available to provide remote power to
connected XTP endpoints (see the XTP matrix switcher user guide for more details). To
manage available power from the XTP matrix switcher, use the XTP System Configuration
Software with the matrix switcher.
SIG LINK
OVER XTP
AUDIO
ON RS-232 IR
L R RESET
OFF
+ −
+ − Tx Rx G Tx Rx XTP OUT
LAN
CAT 5-Type
Cable
100-240V 50/60 Hz
Power ---A MAX
XTP XTP PWR
PWR
Extron
XTP PI 100
REMOTE
XTP Power
POWER
Injector
POWER SIG LINK
12V
1A MAX
XTP IN
LAN
Extron
XTP SR HDMI
XTP Receiver
XTP SR HDMI Scaling Receiver • Installation
OVER XTP RELAYS
OUTPUTS
AUDIO AUDIO
RS-232 IR
ON L R 1 2
OFF
+ − + − S/PDIF Tx Rx G
Tx Rx G Tx Rx HDMI
REMOTE
RS-232
RESET
11
