- Page 1 DTP3 T 202 DTP3 R 201 HDMI Twisted Pair Transmitters and Receivers User Guide DTP Systems 68-3445-01, Rev. F 06 24...
- Page 2 Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le produit, WARNING: This symbol, , when used on the product, is intended to signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une alert the user of the presence of uninsulated dangerous voltage within the tension électrique dangereuse susceptible de provoquer un choc électrique.
- Page 3 • 安全说明 简体中文 警告： 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险电 压， 有触电危险。 注意： 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 www.extron.com 用的特性等相关内容，敬请访问 Extron 网站 , ，参见 Extron 安 全规范指南，产品编号 68-290-01 。 安全記事 • 繁體中文 안전 지침 • 한국어 警告: 若產品上使用此符號， 是為了提醒使用者， 產品機殼內存在未隔離的危險 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지 電壓，...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0...
-
Page 7: Table Of Contents
Connecting to PCS ..........................17 Device Discovery Panel ........................17 TCP/IP Panel ..........................18 Offline Device Preview ........................19 Software Overview ..........................20 Software Menu ..........................20 Device Menu ........................... 22 DTP3 T 202 / DTP3 R 201 • Contents... - Page 8 Command and Response Table for SIS Commands ................27 Reference Information ......................31 Mounting the Devices ........................31 Tabletop Use ........................... 31 Mounting Kits ..........................31 UL Rack-Mounting Guidelines......................31 Internal Settings ..........................32 DTP3 T 202 / DTP3 R 201 • Contents viii...
-
Page 9: Introduction
Introduction This section gives an overview of the DTP3 T 202 and DTP3 R 201 and their features. Topics include: • About this Guide • Product Description • Features • Application Diagram About this Guide This user guide contains installation, configuration, and operating information for two different models of the Extron DTP3 T 202 and DTP3 R 201: •... -
Page 10: Features
• EDID Minder automatically manages EDID communication between connected devices (DTP3 T 202) — EDID Minder ensures that the source powers up properly and reliably outputs content for display. • HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP. -
Page 11: Application Diagram
• Includes LockIt HDMI cable lacing brackets • External Extron Everlast power supply included with the DTP3 T 202 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs. • Extron Everlast Power Supply is covered by a 7 year parts and labor warranty. -
Page 12: Installation
ATTENTION: • The DTP3 T 202 and DTP3 R 201 devices are configured to output power to DTP3 models only. If connected to a non-DTP3 device, set the toggle switch to the OFF position. Failure to turn the power OFF will damage the connected device. -

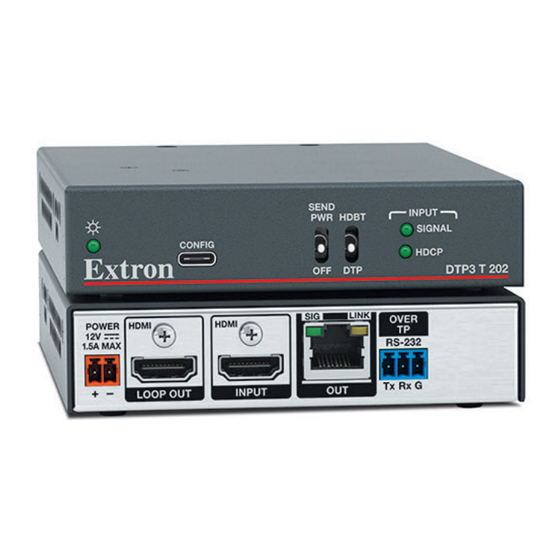

Page 13: Rear Panel Features
(see on page 6) of the DTP receiver. Over TP port — Connect a serial RS-232 signal to this 3.5 mm, 3-pole captive screw port for bidirectional RS-232 communication DTP3 T 202 / DTP3 R 201 • Installation... -
Page 14: Receiver
No Ground Here Ring Sleeves Sleeves Ring No Ground Here Do not tin the wires! Balanced Audio Output Unbalanced Audio Output Figure 4. Captive Screw Connector Wiring for Stereo Audio Output DTP3 T 202 / DTP3 R 201 • Installation... -
Page 15: Connection Details
Power Supply Wiring A 12 VDC, 2.0 A power supply is provided with the DTP3 T 202 transmitter. Follow the instructions and figure 5 on page 8 to wire the 2-pole captive screw connector to the power supply: CAUTION: Risk of electric shock. - Page 16 4. To verify the power cord polarity before connecting the plug, connect the power supply with no load and check the output with a voltmeter. 5. Use the supplied tie wrap to strap the power cord to the extended tail of the connector. DTP3 T 202 / DTP3 R 201 • Installation...
-
Page 17: Tp Cable Termination And Recommendations For Dtp Communication
Do not comb the cable for the first 65 feet (20 meters), where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. DTP3 T 202 / DTP3 R 201 • Installation... -
Page 18: Rs-232 Connector Wiring
4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket ( 5. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length ( DTP3 T 202 / DTP3 R 201 • Installation... -
Page 19: Operation
ATTENTION: • The DTP3 T 202 and DTP3 R 201 devices are configured to output power to DTP3 models only. If connected to a non-DTP3 device, set the toggle switch to the OFF position. Failure to turn the power off will damage the connected device. - Page 20 INPUT HDBT SIGNAL SIGNAL CONFIG CONFIG HDCP HDCP DTP3 T 202 CATx Cable DTP3 R 201 up to 330' (100 m) Local Power Supply Figure 10. Send Power Toggle Switch Configuration DTP3 T 202 / DTP3 R 201 • Operation...
-
Page 21: Operation
When a Macbook, or any of the other devices listed above, is connected, the output video is unencrypted. When a source playing content that requires video encryption (for example, Blu-ray) is connected, the source does not output video. DTP3 T 202 / DTP3 R 201 • Operation... -
Page 22: Audio Mute
EDID from a connected sink. This can be changed via SIS commands (see 5 V Output Mode on page 28) or PCS (see the DTP3 T/R 202/201 Help File). DTP3 T 202 / DTP3 R 201 • Operation... -
Page 23: Product Configuration Software
Product Configuration Software The DTP3 T 202 and DTP3 R 201 can be easily configured using Extron Product Configuration Software (PCS). This section describes the software installation and communication (see the DTP3 T/R 202/201 Help File for detailed information). Topics include: •... - Page 24 6. (Optional) Click Release Notes for more information about the firmware or software update. 7. (Optional) Click Archives to download previous versions of firmware or software. NOTE: The Archives link is listed only if there is previous firmware. DTP3 T 202 / DTP3 R 201 • Product Configuration Software...
-
Page 25: Connecting To Pcs
For 60-1869-62/63 models, the connection appears as USB. Figure 14. Device Discovery Screen 3. Select the DTP3 T 202 device by clicking on it to highlight it in the list ( 4. Click Connect ( DTP3 T 202 / DTP3 R 201 • Product Configuration Software... -
Page 26: Tcp/Ip Panel
), enter the port number or leave the field blank. PCS scans for the port if blank. NOTE: Select the Show Characters checkbox ( ) to display the password characters. 5. Click the Connect button ( ). A new device tab opens. DTP3 T 202 / DTP3 R 201 • Product Configuration Software... -
Page 27: Offline Device Preview
A new offline device configuration tab opens. NOTE: The DTP3 T 202 device tab (see the image below) has a grayed out indicator (circle) to indicate that there is no device connected and the software is running in offline configuration mode. -
Page 28: Software Overview
Display a general overview of where to find features in the PCS framework. 1. From the Software menu, select Tutorial. The Tutorial dialog box opens. 2. Click the I Get It! button to close the dialog box. DTP3 T 202 / DTP3 R 201 • Product Configuration Software... - Page 29 2. Click the Details button (see figure 22, ) for more information. 3. To display details about third-party software packages and associated licensing, click Licenses ( 4. Click OK ( ) to close the dialog box. DTP3 T 202 / DTP3 R 201 • Product Configuration Software...
-
Page 30: Device Menu
Device Menu (60-1869-52/53) device. • Restore to Multiple Devices — Upload a saved configuration file for the DTP3 T 202/DTP3 R 201 to multiple devices on the network. • Update Firmware (Update Firmware to this Device...) — Upload firmware from the host device to the connected device only. -
Page 31: Remote Configuration And Control
New passwords must be configured to secure the device. • On password-protected connections, there are two levels of protection: administrator and user. Administrators have full access to all editing functions. DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control... -
Page 32: Simple Instruction Set Control
• • • All Signal status Output HDCP status Send Power switch status • • Input HDCP status DTP/HDBT switch status DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control... -
Page 33: Using The Command And Response Table
1 = Verbose mode (default) 2 = Tagged responses for queries 3 = Verbose mode and tagged responses for queries = Firmware version to the second decimal place. DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control... - Page 34 = Native resolution and refresh rate from currently assigned EDID. For example: 1920x1080 @ 60 Hz = Password Maximum length 128 characters. All alpha-numeric characters permitted except | , and “space”. Passwords are case-sensitive. DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control...
-
Page 35: Command And Response Table For Sis Commands
Set audio mute format X1@] AFMT AfmtO X1@] View audio mute format OAFMT X1@] AfmtO Verbose mode 2/3 KEY: = Audio output format: = Auto (default) = Digital = Analog DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control... - Page 36 Set verbose mode View verbose mode KEY: = Verbose mode: = Clear/none = Verbose mode (default) = Tagged responses for queries = Verbose mode and tagged responses for queries DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control...
- Page 37 ). No spaces allowed, and no distinction between upper and lower DTP3-T-202 DTP3-R-201 case. First character must be a letter and the last must not be a hyphen. Default is “ ” or “ ”. DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control...
- Page 38 If no password is set, the **** ****) response is KEY: = Password: Maximum length 128 characters. All alpha-numeric characters permitted except |, and “space”. Passwords are case-sensitive. DTP3 T 202 / DTP3 R 201 • Remote Configuration and Control...
-
Page 39: Reference Information
Reference Information This section provides procedures for mounting the DTP3 T 202 and the DTP3 R 201 as well as disconting the ground between them. • Mounting the Devices • Internal Settings Mounting the Devices ATTENTION: • Installation and service must be performed by authorized personnel only. -
Page 40: Internal Settings
48 VDC Remote Power: On — Remote power is distributed (default). • 60-1869-52/53 • Tx, Rx = J8 Off — Remote power is disabled. • 60-1869-62/63 Tx, Rx = JMP2 DTP3 T 202 / DTP3 R 201 • Equipment Mounting... - Page 41 6. Reinstall both units in their racks or other installation option (see Mounting the Devices on page 31). 7. If the shielded cable is used, disconnect the cable shield from the connector at either end of the cable. DTP3 T 202 / DTP3 R 201 • Equipment Mounting...
- Page 42 Utilisez toujours une source d’alimentation fournie ou recommandée par Extron. L’utilisation d’une source d’alimentation non autorisée annule toute certification de conformité réglementaire, et peut endommager la source d’alimentation et l’unité. DTP3 T 202 / DTP3 R 201 • Equipment Mounting...
- Page 43 Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
