7.

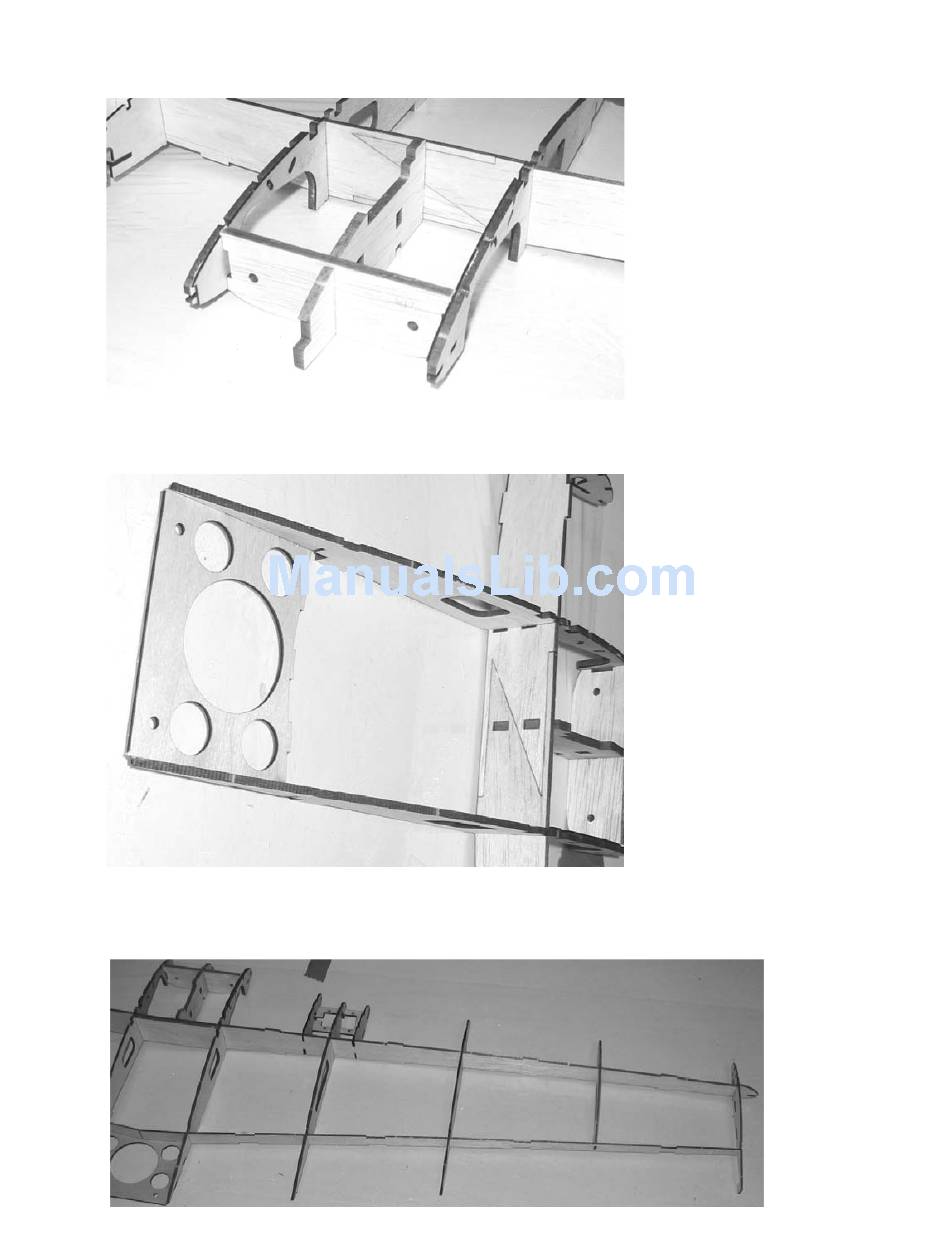

Locate the W17 part on the 1/8" sheet. This part was on the balsa piece inside the C1 part. Slide this part into the notch in the W16
part and place the tabs in the notches in the 1/32" W3R parts as shown below. Make sure it is pressed fully into the slot. Do NOT
glue at this time.
8.
Locate and remove the W21 part from the 1/16" plywood sheet. Install it as shown below. Make sure it is fully seated with the 2
W3 ribs and secure with thin CA. Line up the wing over the plans, making sure the center section is square and the ribs are fully
pressed into the spar and all tabs are fully pressed into the notches and secure the center section pieces with thin CA.
9.
Glue W29 onto the back of the center section of the spar as shown below, making sure it is flush top/bottom. Locate and remove
the W7, W8, and W9 ribs from the 1/16" sheets. Slide them into the slots on the spars. Locate and remove the W10 parts from the
1/16" sheets. Slide the W10 parts into the ribs from the bottom, making sure they are fully pressed into the slots. The W8 ribs tab
into the W10 piece. Make sure it is fully pressed in. do NOT glue anything at this time. Repeat for the other side of the wing.
Copyright 2005-2011 Mountain Models
17
