4.

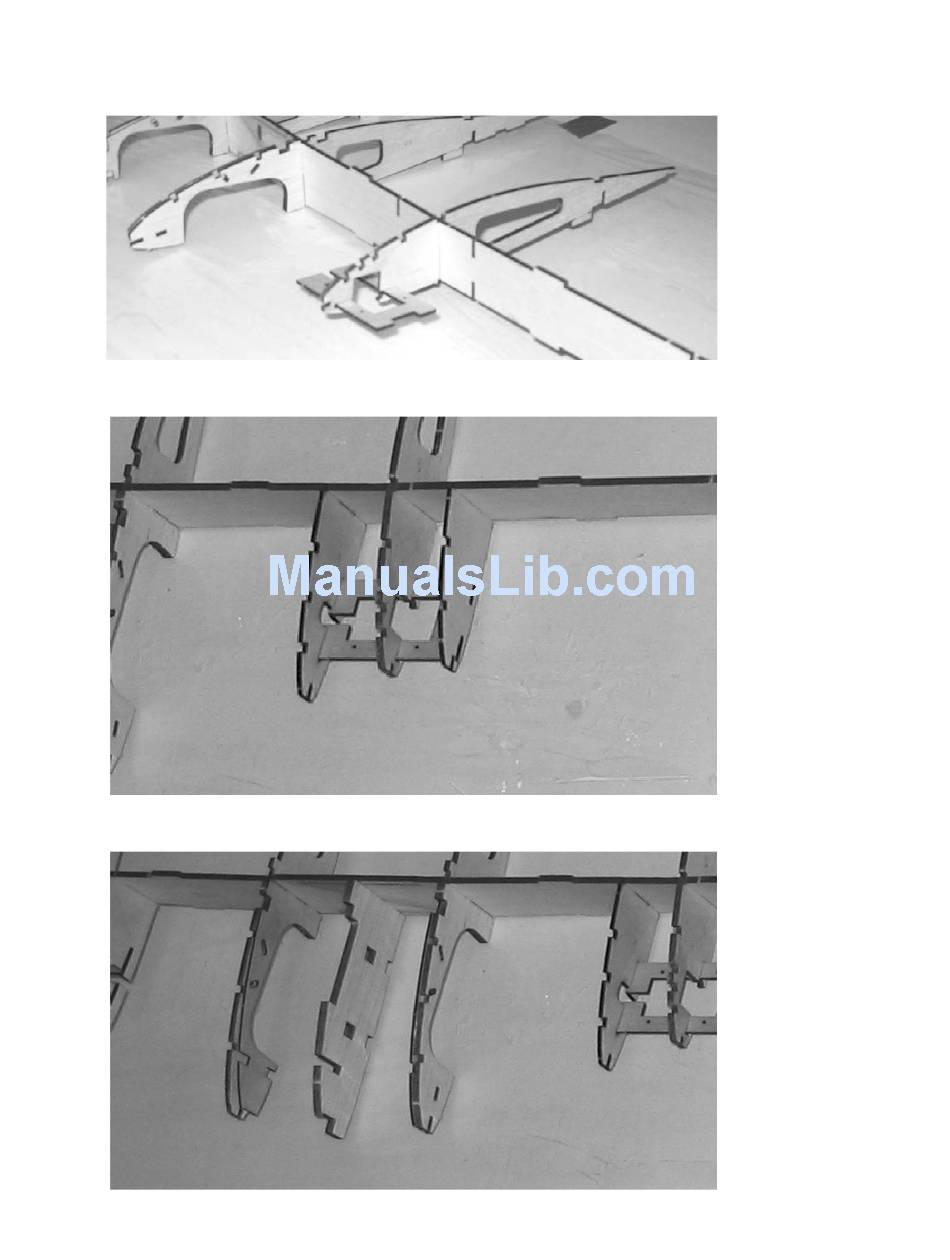

Find and remove the retract mounts from the 1/16" ply sheet. Press them through the slot in W5 as shown in the image below,
making sure it is facing the right direction with the open end facing towards the center of the wing. BE CAREFULL when doing
this and place your finger on the back side of W5 when pushing the retract mount through. If the small front section breaks off, you
can glue it back on later after the wing is mostly assembled. Repeat this for the other side of the wing.
5.
Locate and remove the W4 and W6 parts from the 1/16" plywood sheet. Press them into the notches in the spar and press the retract
mount tabs into the ribs. Do NOT glue them at this time. Repeat this for the other side of the wing.
6.
Locate the W16 part on the 1/8" sheet. This part was on the balsa piece inside the C1 part. Press the tabs into the spar as shown
below, but do NOT glue it yet.
Copyright 2005-2011 Mountain Models
16
