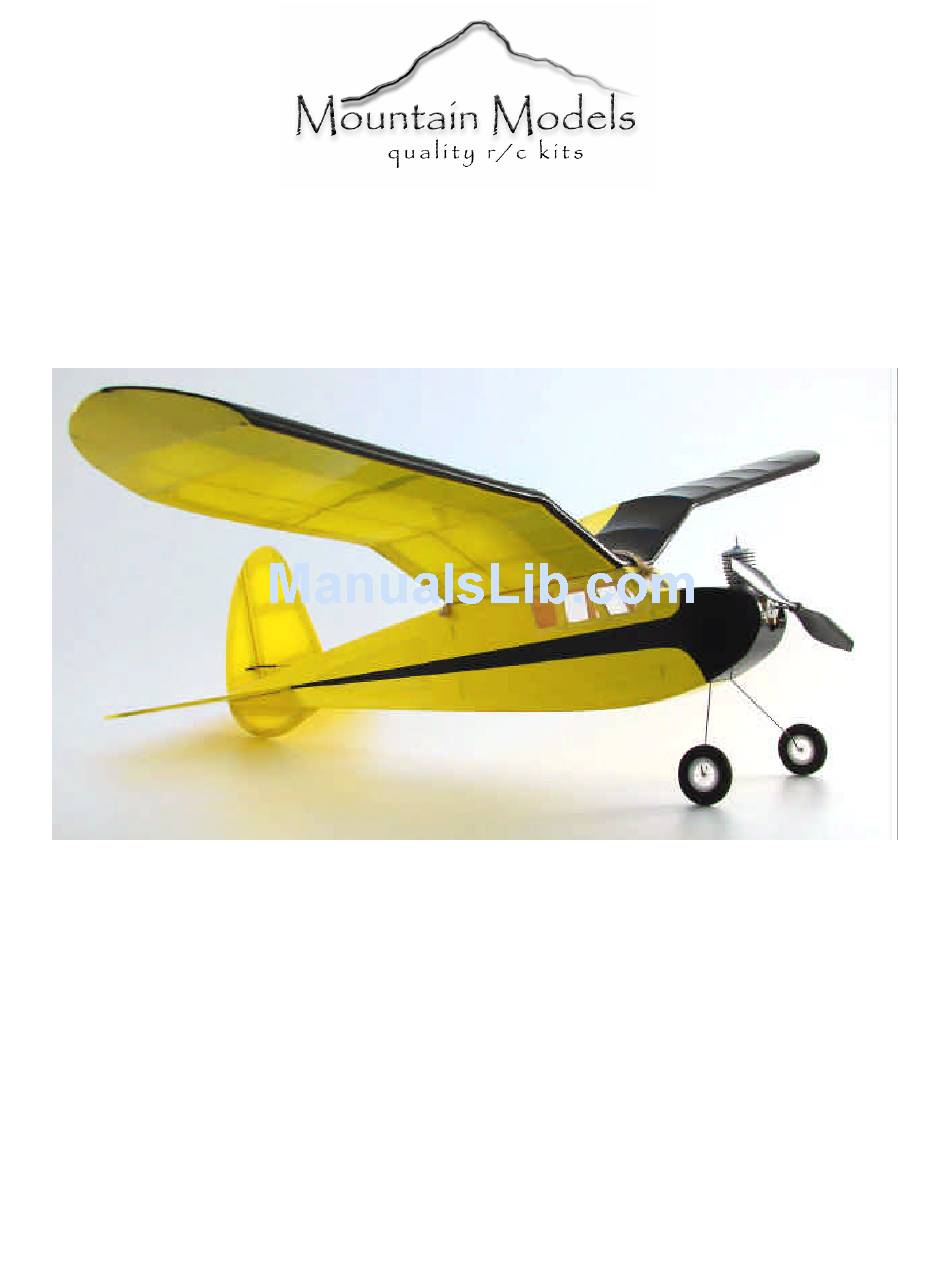

Spook-E™ Micro
Micro Nostalgic R/C Electric Airplane
Spook-E™ Specifications
Wingspan: 23.53 in.
Length: 15.66 in.
Wing Area: 100 sq. in.
Weight (Ready to Fly): 1.8 oz.
Wing Loading: 2.6 oz. / sq. ft.
Version 1.0, April 9, 2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spook-E Micro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mountain Models Spook-E Micro

  • Page 1 Spook-E™ Micro Micro Nostalgic R/C Electric Airplane Spook-E™ Specifications Wingspan: 23.53 in. Length: 15.66 in. Wing Area: 100 sq. in. Weight (Ready to Fly): 1.8 oz. Wing Loading: 2.6 oz. / sq. ft. Version 1.0, April 9, 2012...
  • Page 2: Warranty

    WARRANTY Mountain Models guarantees this kit to be free from any defects in both material and workmanship at the time of purchase. This warranty does not cover ANY components or parts damaged by use or modification. In no case shall Mountain Model’s liability exceed the original cost of the purchased kit. Mountain Models reserves the right to modify or change this warranty without notice.
  • Page 3: Before You Begin

    Before You Begin Check to make sure that all of your parts are there and in good shape. Parts List Number Description of Part in Kit Bundled Parts Laser Cut Parts Sheets (6 Sheets) Plan Sheets (11” x 17”) These instructions of course! Metal (on the back of the wood bundle) 0.020 x 18”...
  • Page 4: General Building Tips

    General Building Tips • READ THE INSTRUCTIONS all the way through and study the plans BEFORE starting any work on the model. • PRE-SANDING: BEFORE removing any parts from the balsa sheets, use a sanding block with 320 grit sandpaper and lightly sand the back of the balsa sheets. Our balsa suppliers have been sending us wood that is over sized, so sanding the backs of the balsa sheets reduces the thickness just slightly and removes any charring from the laser cutting process.
  • Page 5 1. Join the " balsa W1 and W1A parts together with thin CA, to make the main spar, W1. 2. Join the " balsa W2 and W2A parts together with thin CA, to make the rear spar, W2. 3. Glue the plywood W1R spar reinforcements onto W1, with thick CA.
  • Page 6 7. Glue the plywood W21 brace onto one of the assemblies from the previous step, with the long part of the W10/W9 assembly hanging off the table. 8. Glue on the other assembly, as shown. TABLE TABLE 9. Glue the "...
  • Page 7 10. Press the " balsa W4 and W5 parts into the " balsa leading edge W11 parts, as shown. Secure with thin CA, making sure the parts are fully inserted and at a right angle to each other. 11. Trim off the bottom "tabs" on W11, so the bottom surface is smooth.
  • Page 8 14. Slide the leading edge assembly onto W3. Make sure everything is aligned and tack glue it with thin CA. 15. Slide the " balsa W14 and W15 ribs in place on the LEFT wing. With the outer wing panel hanging off the table, tack glue them with thin CA, making SURE that they are fully inserted into the spars, trailing edge, and leading edge assembly.
  • Page 9 19. Slide the " balsa W19 and W20 ribs in place and tack glue with thin CA after making sure they are FULLY pressed into place. 20. Glue the W23 wing tip parts together, using thin CA. 21. Assemble the W23 wing tips onto the wing, being careful with the last rib.
  • Page 10 24. Glue in the W19, W20, and W21 parts into the fuselage sides, using thin CA. 25. Press the F1 crutch into the F2 and F3 formers. Do NOT glue them yet. 26. Press the plywood F4 motor mount into the F2 former, but do NOT glue it yet.
  • Page 11 27. Press the crutch assembly into the right fuselge side. Do NOT glue it. 28. Press the plywood F6 and F7 landing gear formers into the crutch and fuselage side. Do NOT glue anything yet. 29. Press the crutch/fuselage assembly into the left fuselage side.
  • Page 12 30. Glue in the F22 and F23 doublers on the INSIDE of the fuselage front, as shown, using thick CA. F10b 31. Glue together the balsa F10 and plywood F10b, using thick CA, MAKING SURE that they are aligned with each other.
  • Page 13 35. Press the plywood F17 in place, as shown. Make sure it is fully pressed in place and secure it with thin CA. 36. Glue F11 and F12 in place on the fuselage, as shown. 37. Press F14 into F13, but Do NOT glue them together yet.
  • Page 14 39. Press F15 in place and glue with thin CA, AFTER making sure it is fully inserted in the fuselage sides. 40. Press F16 in place and glue with thin CA AFTER making sure it is fully inserted in the fuselage sides. 41.
  • Page 15 47. Insert the horizontal stab through the slot in the fuselage, but do NOT glue it in place yet. 48. Insert the vertical fin through the slot that goes through the fuselage top, through the stab, and into the stab support in the fuselage.
  • Page 16 52. Hinge the elevator to the horizontal stab, using hinge tape, as shown on the plans. There should be a small (1/64") gap between the parts. Do the same for the rudder and vertical fin. 53. Insert the motor through the hole in the fuselage top front.
  • Page 17 54. Bend and cut the landing gear wire, as shown on the plans. 55. Secure the wheels to the landing gear, as shown on the plans. 56. Press the landing gear into the slot on the fuselage bottom. Press in the landing gear retaining part, F18.
  • Page 18 58. Install the pushrods and reciever, as described on the plans, in the location shown on the plans.
  • Page 19 59. Glue the plywood control horns into the rudder and elevator with thick CA, as shown here and on the plans. 60. Follow the directions on page 2 of the plans to create and install the Z-Bend ends on the pushrods. 61.
  • Page 20 62. Hook up your motor wires to the RX, secure the battery to a fuselage side with Velcro, mount the wing with 4 rubber bands, and balance the model where it is shown on the plans. 63. DOUBLE CHECK your wings for any warps. If the wing is warped, straighten it out BEFORE trying to fly your model.
