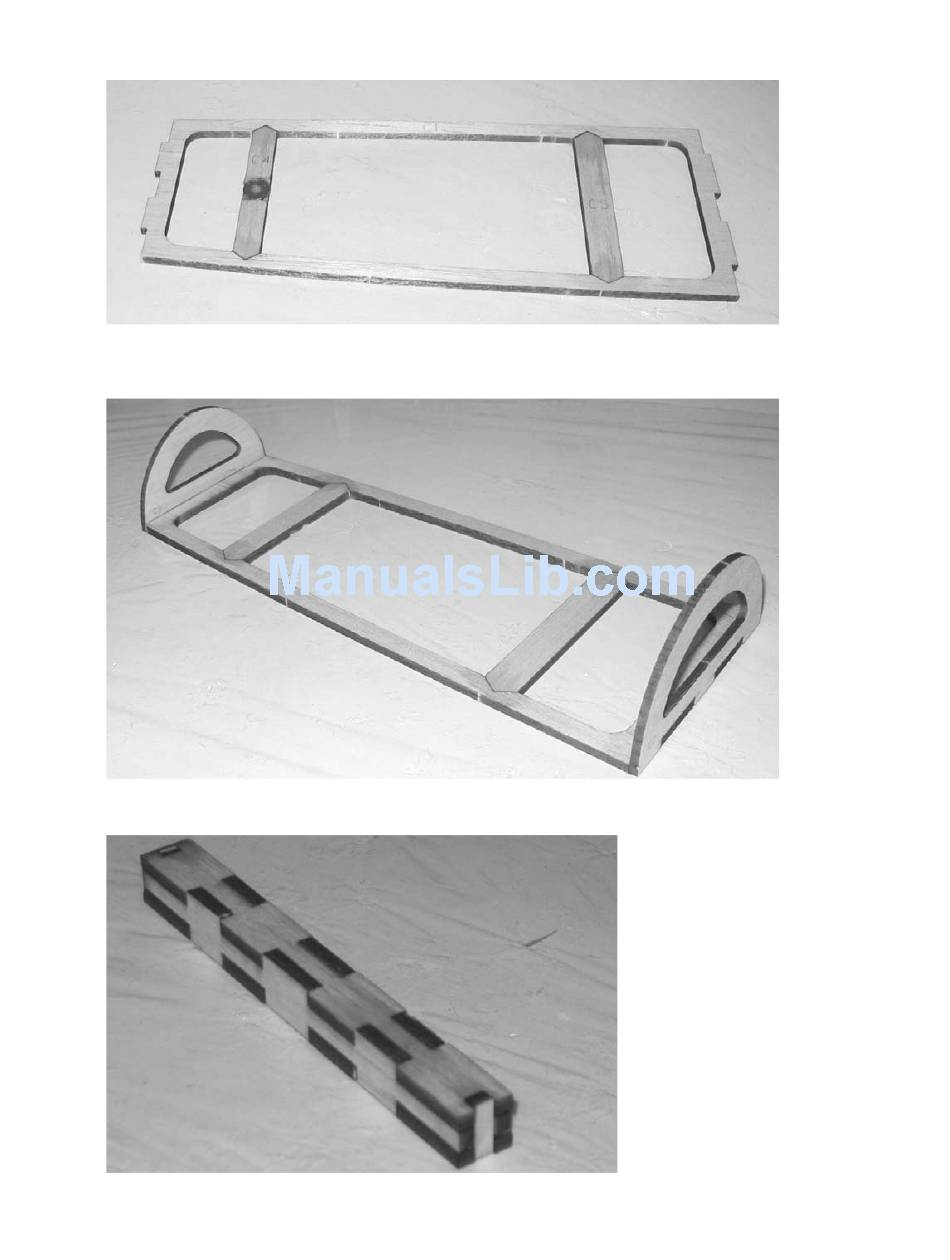

25. Locate and remove the C1 and C5 parts from the 1/8" balsa sheet. Assemble them your work surface, making sure they are flat and
secure the joints with thin CA. Make sure the joint between C1 and C4 is glued well.
26. Locate and remove C2 and C3 from the 3/32" balsa sheet. Place the assembly from the previous step with the washer DOWN.
Place the 3/32" balsa formers in position and secure the joints with thin CA, making sure they are at 90 degrees to the C1 part.
MAKE SURE you glue them as shown in the image below, so the magnet will hold the canopy down!
27. Remove the motor stick parts from the 1/8" plywood sheet. Assemble it as shown in the image below. Be sure to make good glue
joints!
28. Set the fuselage, motor stick, and canopy frame aside in a safe place where it will not get damaged and continue onto the next
section.
Copyright 2005-2011 Mountain Models
10
