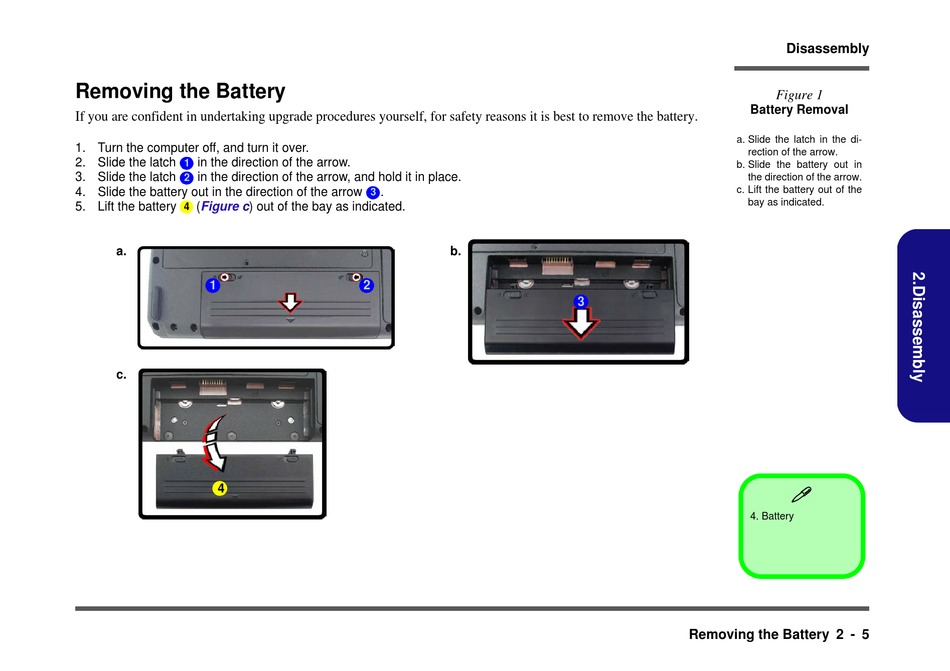

Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery.
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Slide the battery out in the direction of the arrow
5. Lift the battery (Figure c) out of the bay as indicated.
4
a.
1
c.
4
.
3
b.
2
Battery Removal
a. Slide the latch in the di-
rection of the arrow.
b. Slide the battery out in
the direction of the arrow.
c. Lift the battery out of the
bay as indicated.
3
4. Battery
Removing the Battery 2 - 5
Disassembly
Figure 1

