EUROCOM R130T Service Manual page 39

7. Remove the keyboard plate
8. Disconnect the keyboard ribbon cable
9. Carefully lift up the keyboard
e.
17
18
16
(Figure e).
16
from the locking collar socket
17
(Figure f) off the computer.
5
f.
.
18
5
Removing the Keyboard 2 - 15
Disassembly

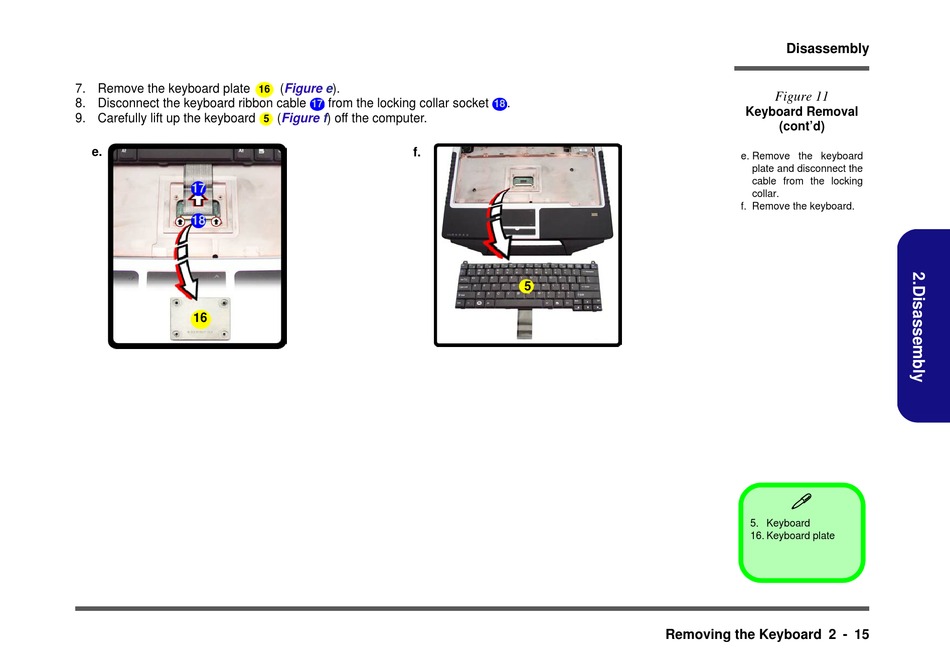

Figure 11
Keyboard Removal
(cont'd)
e. Remove the keyboard
plate and disconnect the
cable from the locking
collar.
f. Remove the keyboard.
 
5. Keyboard 5. Keyboard
16. Keyboard plate
