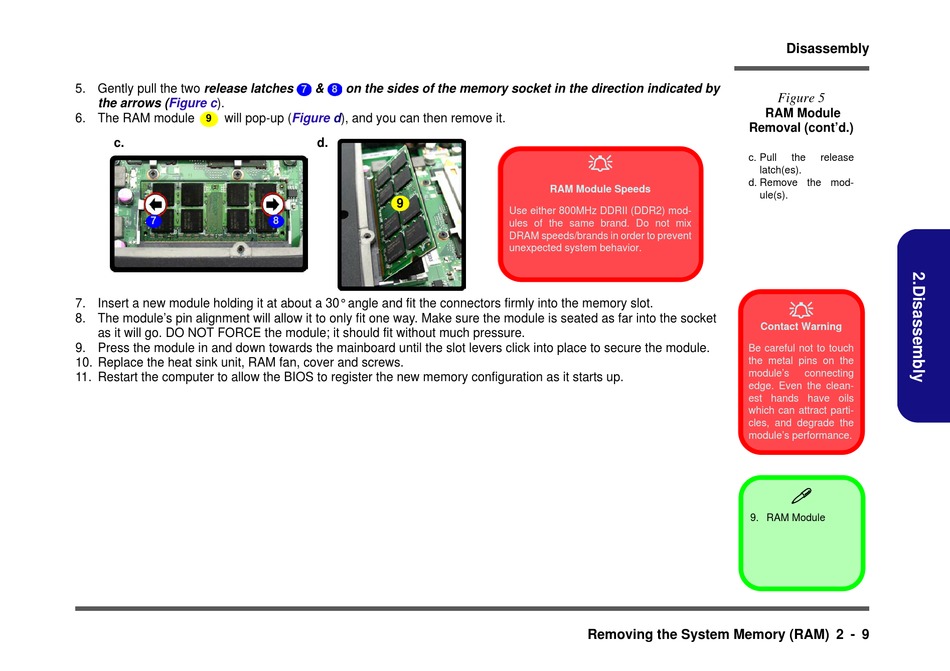

5. Gently pull the two release latches
the arrows (Figure c).
6. The RAM module will pop-up
9
c.
7
7. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
8. The module's pin alignment will allow it to only fit one way. Make sure the module is seated as far into the socket
as it will go. DO NOT FORCE the module; it should fit without much pressure.
9. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
10. Replace the heat sink unit, RAM fan, cover and screws.
11. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
& on the sides of the memory socket in the direction indicated by
7 8
(Figure d), and you can then remove it.
d.
9
8

RAM Module Speeds
Use either 800MHz DDRII (DDR2) mod-
ules of the same brand. Do not mix
DRAM speeds/brands in order to prevent
unexpected system behavior.
Removing the System Memory (RAM) 2 - 9
Disassembly
Figure 5
RAM Module
Removal (cont'd.)
c. Pull the release
latch(es).
d. Remove the mod-
ule(s).

Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's performance.

9. RAM Module
