Chapter 2______________________________________________________Zaxcom Fusion User's Manual
Input Configure page (Digital Inputs selected)
Page purpose:
Trim and Digital Delay.
How to get here:
(INPUT key  Analog Inputs Toggle button {=Digital})
(MENU key  Input Configure button  Analog Inputs Toggle button {=Digital})
Page Notes
See – Effects Package and More
Page Level Shortcuts
1 – 8 keys – equivalent to pressing the appropriate Channel button, changes to the
Digital Channel buttons
Pressing it takes you to the
Analog/Digital/Line Lvl Inputs Toggle button
Toggles this page between the
(Digital Inputs selected)
High Pass Filter button
Each digital input can have a highpass filter applied to it.
Enabling the Highpass Filter
1. Press the High Pass Filter button
The button‟s LED indicator flashes green when pressed.
2. Set the Highpass Frequency.
Setting and changing the Highpass Frequency is outlined in the
3. Press the Channel button to apply the highpass filter settings.
The HPF indicator changes to purple with the highpass frequency indicated.
4. Repeat Step 3 for all channels, to enable the highpass filter.
5. Once the last channel has been changed, press the High Pass Filter button again or the ENTER key.
The LED stops flashing.
NOTE: You can set different frequencies for each channel, simply repeat steps 2 and 3 for each frequency.

Clear All button

This button provides a convenient way to clear all the settings, and resets this page back to the factory default
settings.
This page maintains the parameters for the digital inputs. This includes Highpass Filtering, Gain

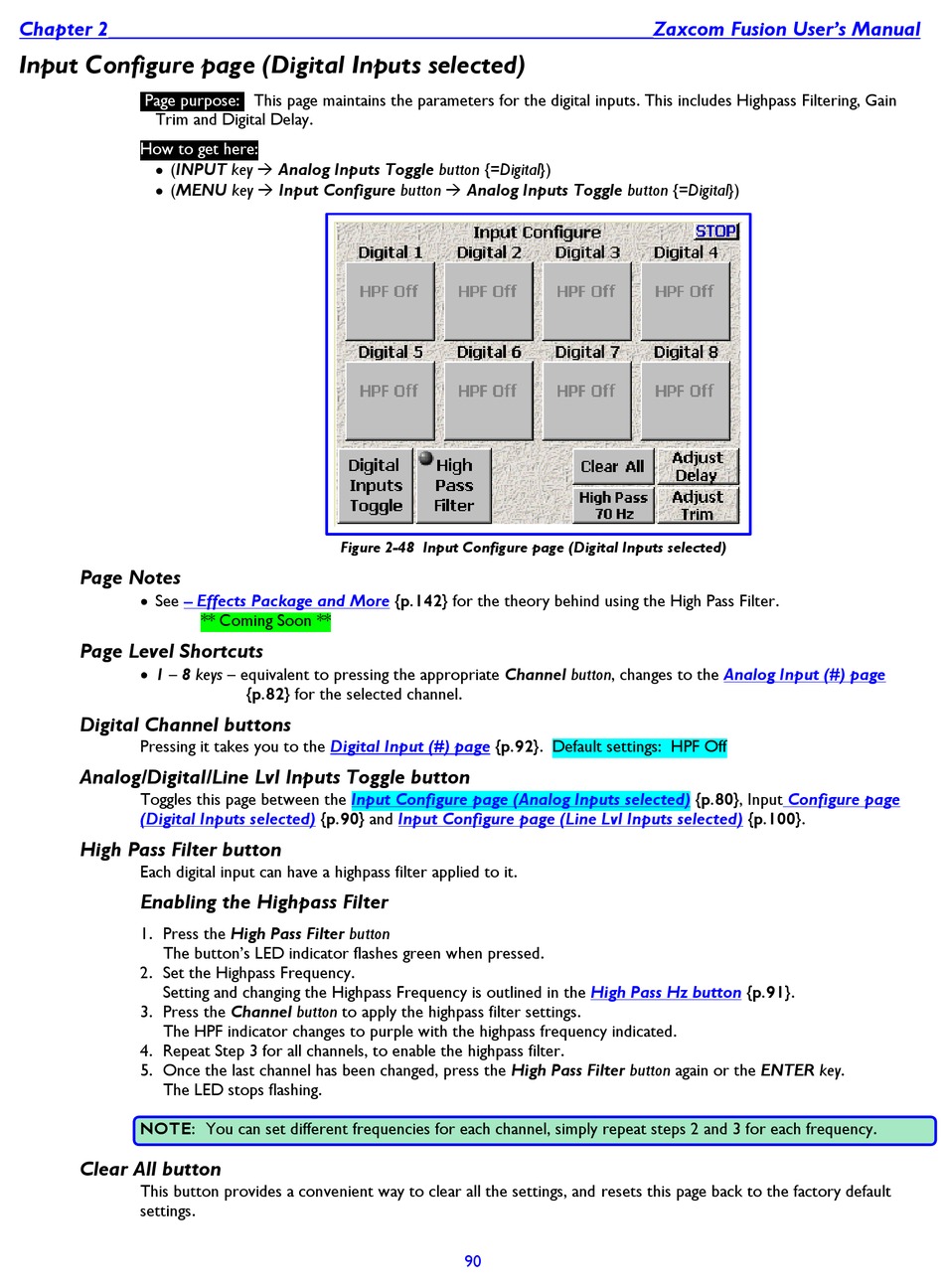

Figure 2-48 Input Configure page (Digital Inputs selected)
** Coming Soon **
{p.82} for the selected channel.
Digital Input (#) page
Input Configure page (Analog Inputs selected)
{p.90} and
{p.142} for the theory behind using the High Pass Filter.
{p.92}. Default settings: HPF Off
Input Configure page (Line Lvl Inputs selected)
90
Analog Input (#) page
{p.80}, Input
{p.100}.
High Pass Hz button {p.91}.
Configure page
