Analog Input (#) – Dynamics page
Page purpose:
channel.
How to get here:
(INPUT key  Channel button  Dynamics button)
(MENU key  Input Configure button  Channel button  Dynamics button)
Page Notes
See – Effects Package and More
You have two methods to change each parameter on this page:
o Click on a parameter, it turns white. The Inc and Dec buttons pickup a parameter title. Pressing either
button will adjust the parameter in its respective direction.
o Click on a parameter, it turns white. Click on the now white button and a data entry field appears. Directly
enter the value and press the ENTER key.
Page Level Shortcuts
1 – 8 keys
ENTER key
UP ARROW / 2 and DOWN ARROW / 8 keys – cycles through the compressor buttons.
Input Level meter
Displays the current audio level for this channel. The scale is dBFS.
Input Gain meter
Displays the total gain on the channel including make-up gain. The scale is dB.
Compress button
Enables (On) / disables (Off) the compressor for this channel. When this button is highlighted, pressing the
ENTER key toggles the setting.
Attack button
(Attack Speed) Controls the amount of gain slewing which will generally slow the response to attack transients
only. (Valid range: 1 – 4 – 100 ms, Value step: 1)
Attack button Shortcuts
Clicking the button the first time selects it. This allows the value to be modified by the Inc and Dec buttons.
Clicking it a second time opens it for direct access.
See: Common Data Entry Field Shortcuts List
Decay button
(Decay Speed) Controls the decay speed of the peak detector used by the dynamics processing.
(Valid range: 50 – 100 – 1000 ms, Value step: 1)
Requires EFFECTS PACKAGE – This page maintains the compressor for each analog input
** Coming Soon **
– the same as clicking on analog channel buttons 1 – 8.
– toggles the compressor on/off

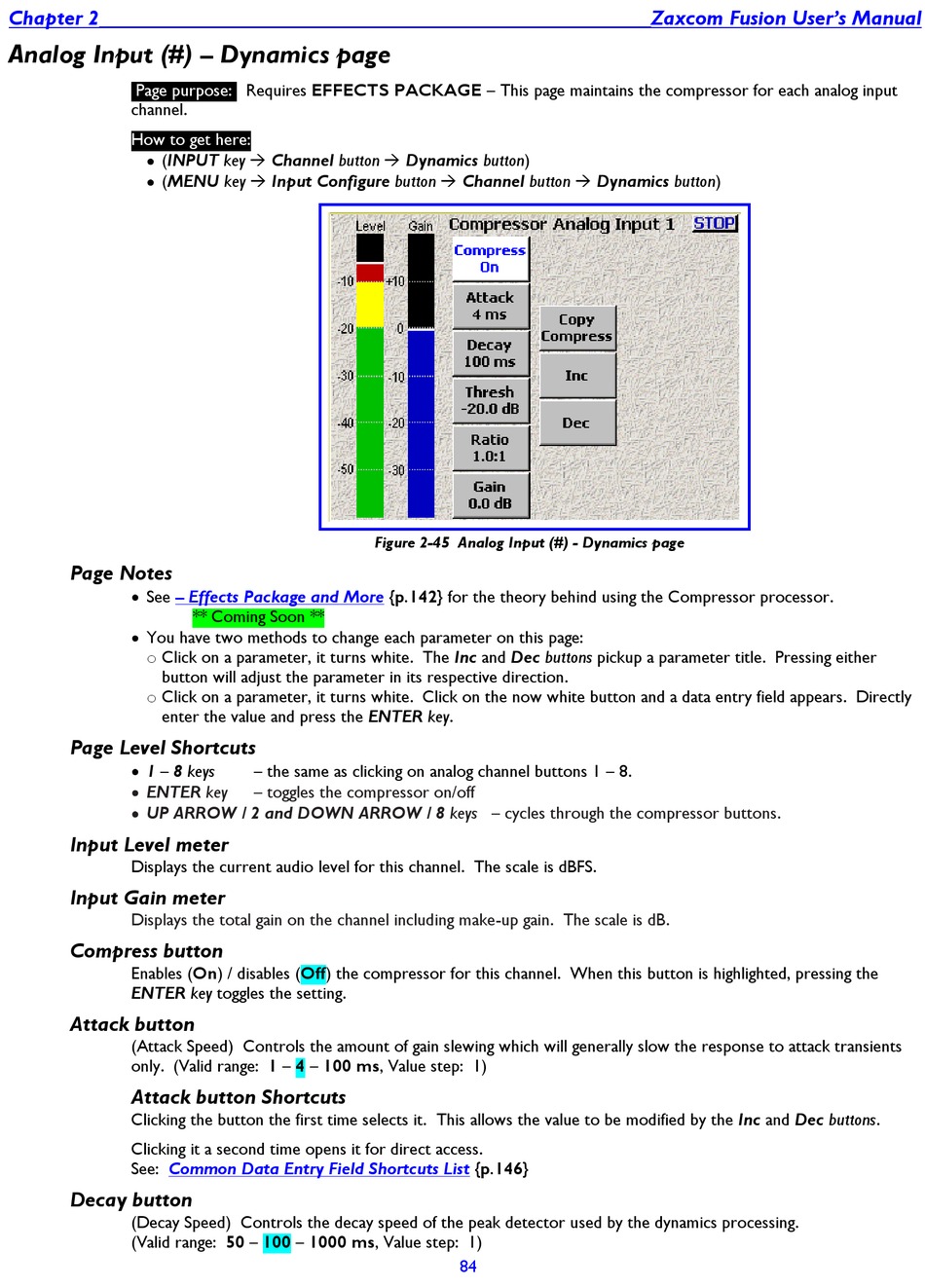

Figure 2-45 Analog Input (#) - Dynamics page
