Zaxcom Fusion User's Manual______________________________________________________Chapter 2

Limiter Matrix buttons

Each Output Channel flagged with an X has the limiter enabled for that channel. Settings for the limiter are
maintained by the

Routing Presets button

Pressing it takes you to the

Output Routing button

This button displays three additional columns on the right used to flag the source of each output during Playback
mode, Stop mode and Record mode. With it displayed, pressing any of the boxes will turn ON/OFF audio coming
from the channel during each operation mode, indicated by a number if ON. The Routing Presets button displays
the page that manages the underlying routing.
NOTE: The Analog and Digital Outputs are essentially identical, with the exception that there are 6 Analog
Outputs and 8 Digital Outputs. Outputs 1 through 6 are the same in both groups.

Play buttons

These indicate what will be sent to each output while the Fusion is in Play mode.
For example, if I have a Boom Operator on Output 1, and his audio is being recorded on track 1, I would set his
Play button to Trk1 so he will be able to hear his audio during playback.

Stop buttons

These indicate what will be sent to each output while the Fusion is in Stop mode.
For example, if I don‟t want to have anyone hear any audio while in Stop mode, I can clear out all of the Stop
buttons (leaving all of the Stop buttons blank).

Rec buttons

These indicate what will be sent to each output while the Fusion is in Record mode.
For example, if I have the mix being recorded on track 3 and I want to send it to the Director and Script
Supervisor on Output 3, I would set it to 03 and they will only hear the audio while we are recording a Take.
Output Limiter Settings page
Output Routing Presets page
Normal
{p.44}.
{p.46}.
Play Switches Play Tracks
1-6, 11-12

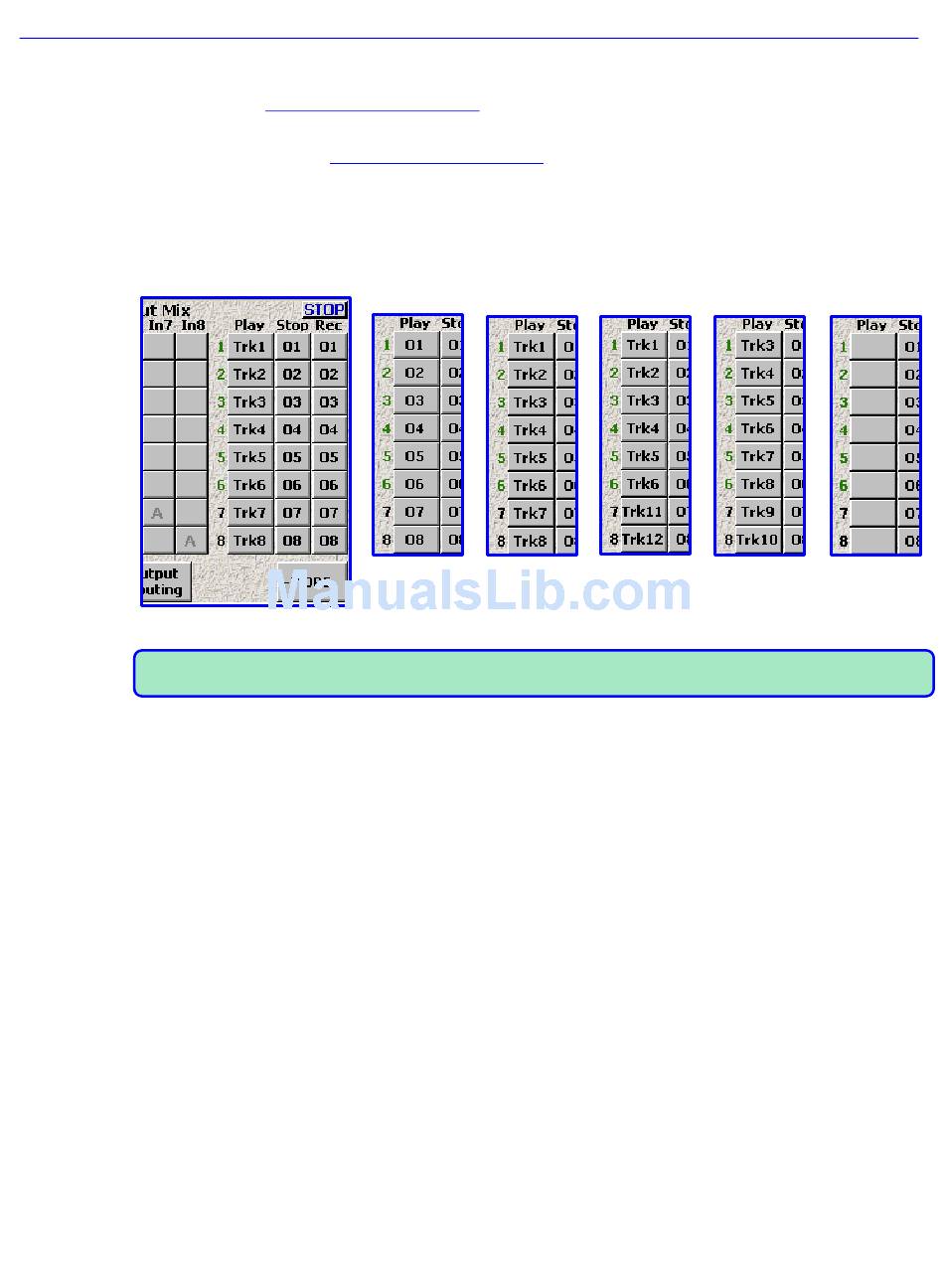

Figure 2-9 Output Mix – Output Routing columns page
43
Play Tracks Mute Play
5-12
